ANT-10FD

2.4GHz 2×2 Outdoor IP68 Wide Rang Directional 10dBi Panel Pole/Wall Mount Antenna

The CERIO ANT-10FD 2.4GHz 2×2 Outdoor Wide Rang Directional 10dBi Panel Antenna supports 2.4 to 2.5 GHz and provides superb performance in IEEE 802.11b/g/n/ax Wi-Fi environment. It supports pole and wall mounting installation and constructed with highly UV-resistant PC material (PC-122U) combined with aluminum alloy to achieve a high-sealing IP68 waterproof design. All materials are considered good in water tightness and prevention of rust characteristics.

The CERIO ANT-10FD 2.4GHz 2×2 Outdoor Wide Rang Directional 10dBi Panel Antenna supports 2.4 to 2.5 GHz and provides superb performance in IEEE 802.11b/g/n/ax Wi-Fi environment. It supports pole and wall mounting installation and constructed with highly UV-resistant PC material (PC-122U) combined with aluminum alloy to achieve a high-sealing IP68 waterproof design. All materials are considered good in water tightness and prevention of rust characteristics.

The ANT-10FD 2.4GHz 2×2 outdoor directional Dual Polarization Panel Antenna provides polarized dualsignal characteristics, allowing multiple antenna applications for 802.11b/g/n/ax 2T2R MIMO. The user only uses one set of ANT-10FD Dual Polarization antenna with 2 sets of N-Type connectors for connection with low-attenuation RF cables and WiFi AP to complete 802.11b/g/n/ax 2T2R MIMO applications that require multiple antennas. The perfect solution for faster, longer distances with 802.11b/g/n/ax 2T2R MIMO multi-radio reception and wireless transmission.

Highlight Features

  • Supports 2.4Ghz 2.4~2.5Ghz IEEE 802.11b/g/n/ax.
  • High Gain: 10dBi.
  • Vertical installation:Horizontal beam 120°, Vertical beam 60°
  • Horizontal installation:Horizontal beam 60°, Vertical beam 120°
  • Wide coverage up to 120°, in contrast to the limitations of narrow-angle directional antennas, effectively enhances the WiFi signal directionality. Solve the difficult long-distance transmission problem of 360° Omni antennas.
  • High performance.
  • IP68 waterproof protection rating, suitable for applications in various weather conditions.
  • Beaufort scale 17 wind load test certificated.
  • Polarized dual-gender design and supports two NType (Female) connectors.
  • Packaging includes SUS304 stainless steel single-axis adjustable mounting bracket (OW-PKUR). (Please refer to the detailed specifications of OW-PKUR)
  • High-sealing structure with UV resistance, hightemperature durability, combines aluminum alloy and stainless steel materials, ensuring weather resistance and extended lifespan.

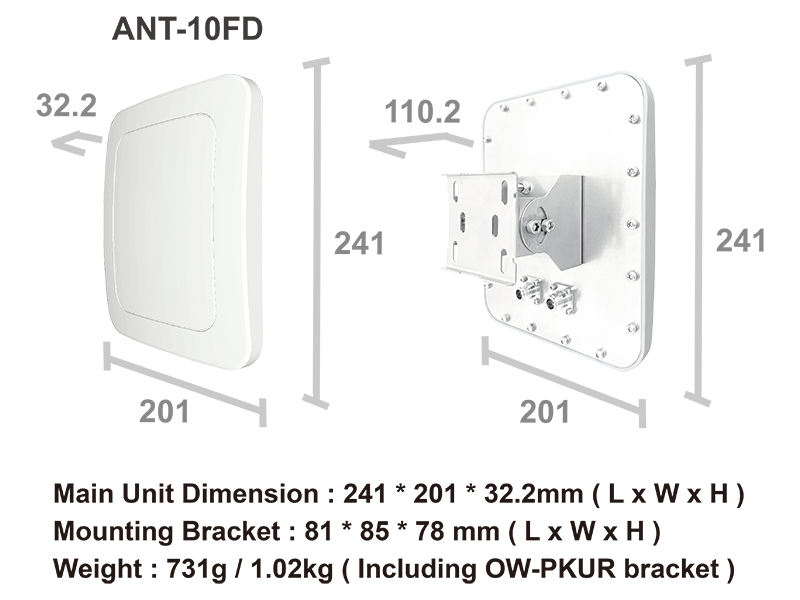

Hardware Overview / Dimension

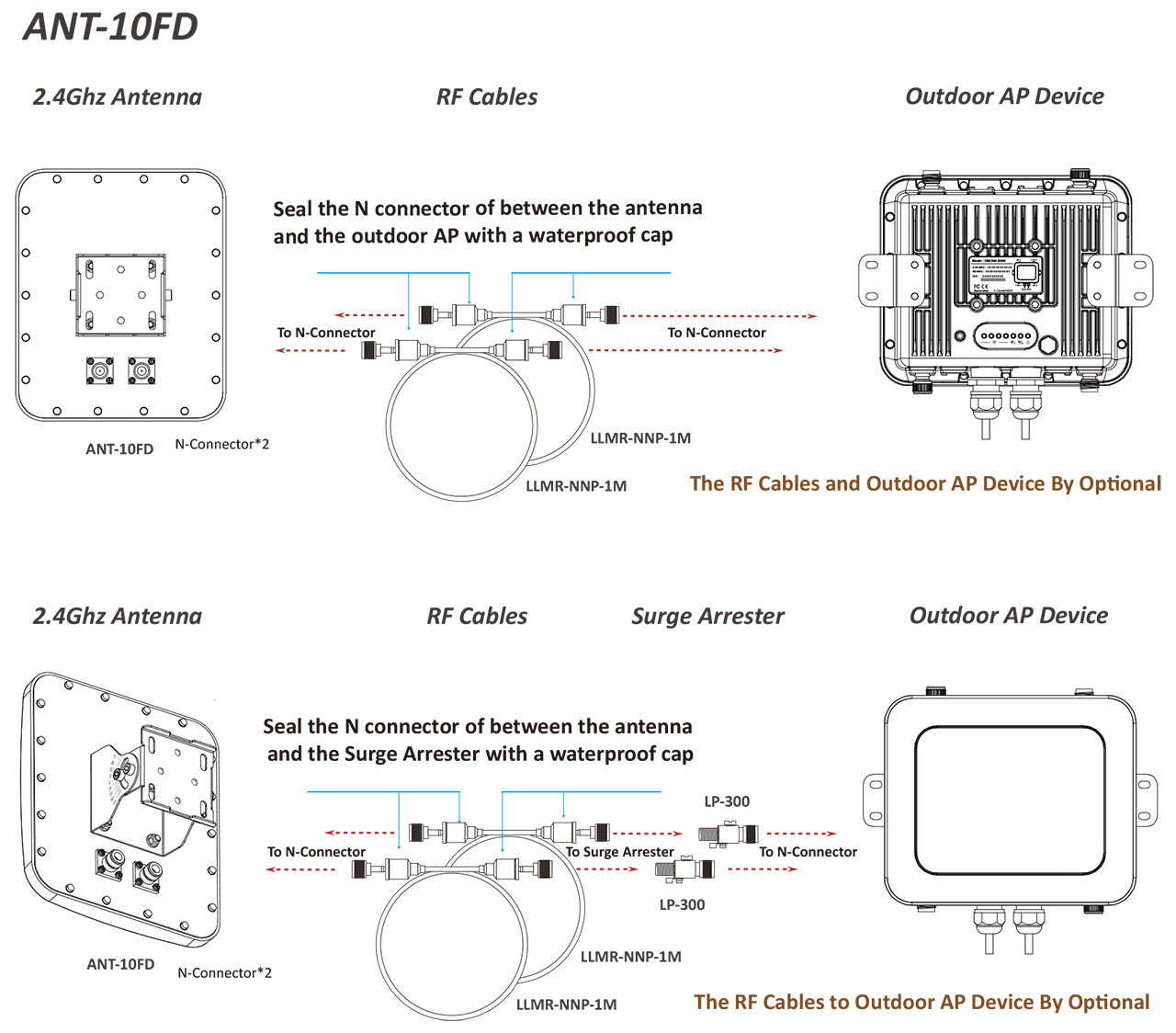

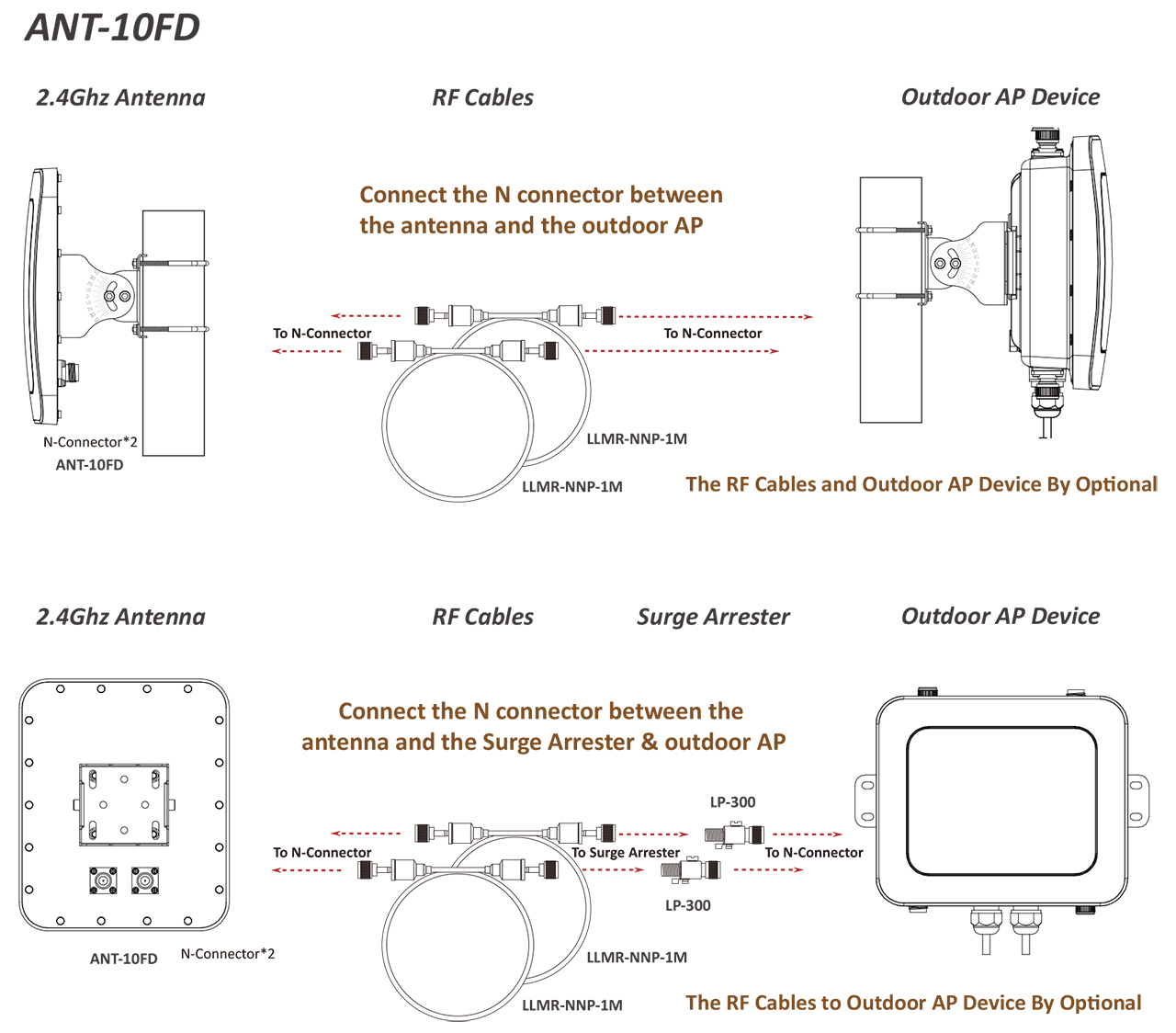

Adjustable Mounting Bracket Installation (OW-PKUR)

Product Application

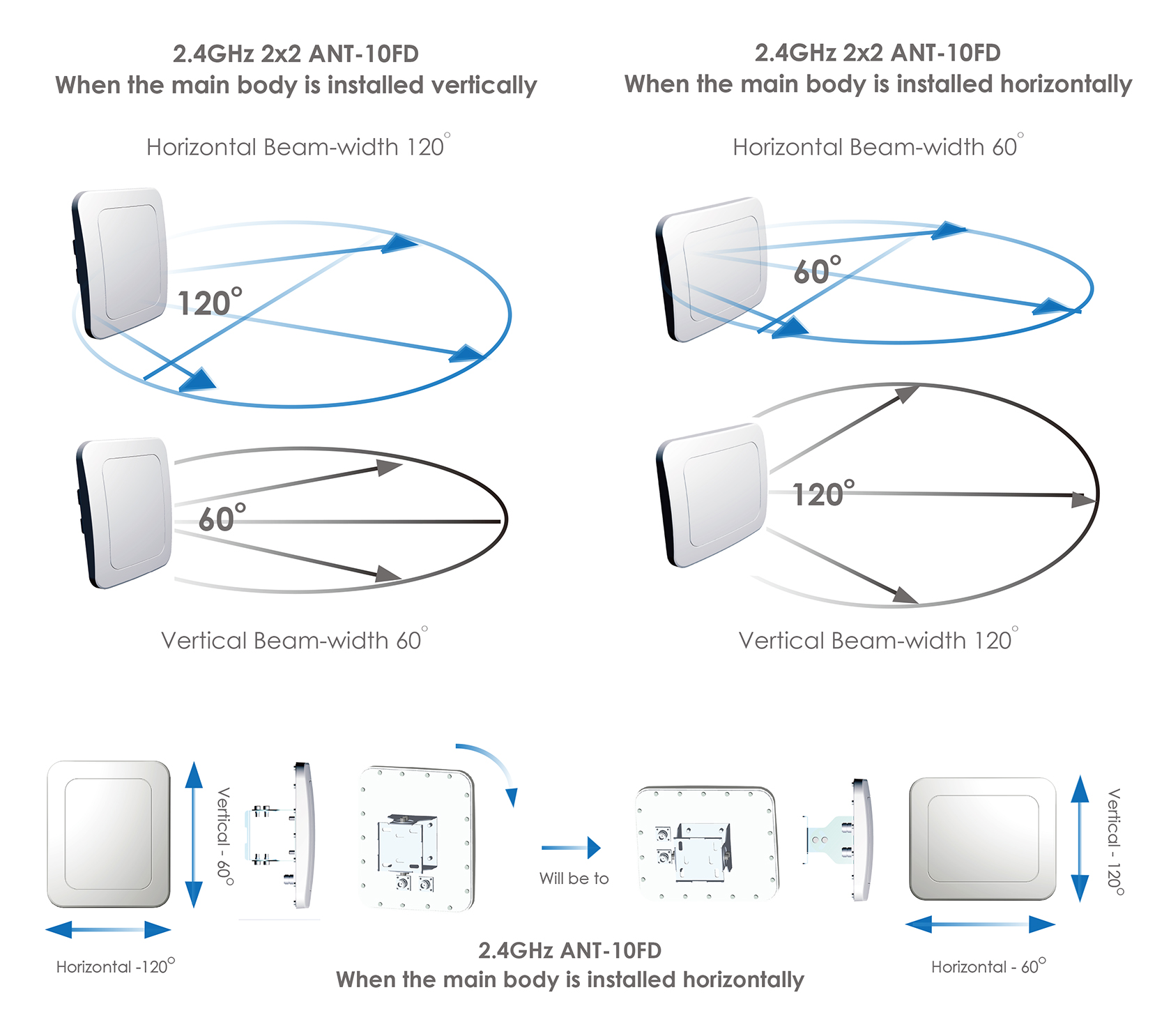

Antenna Coverage

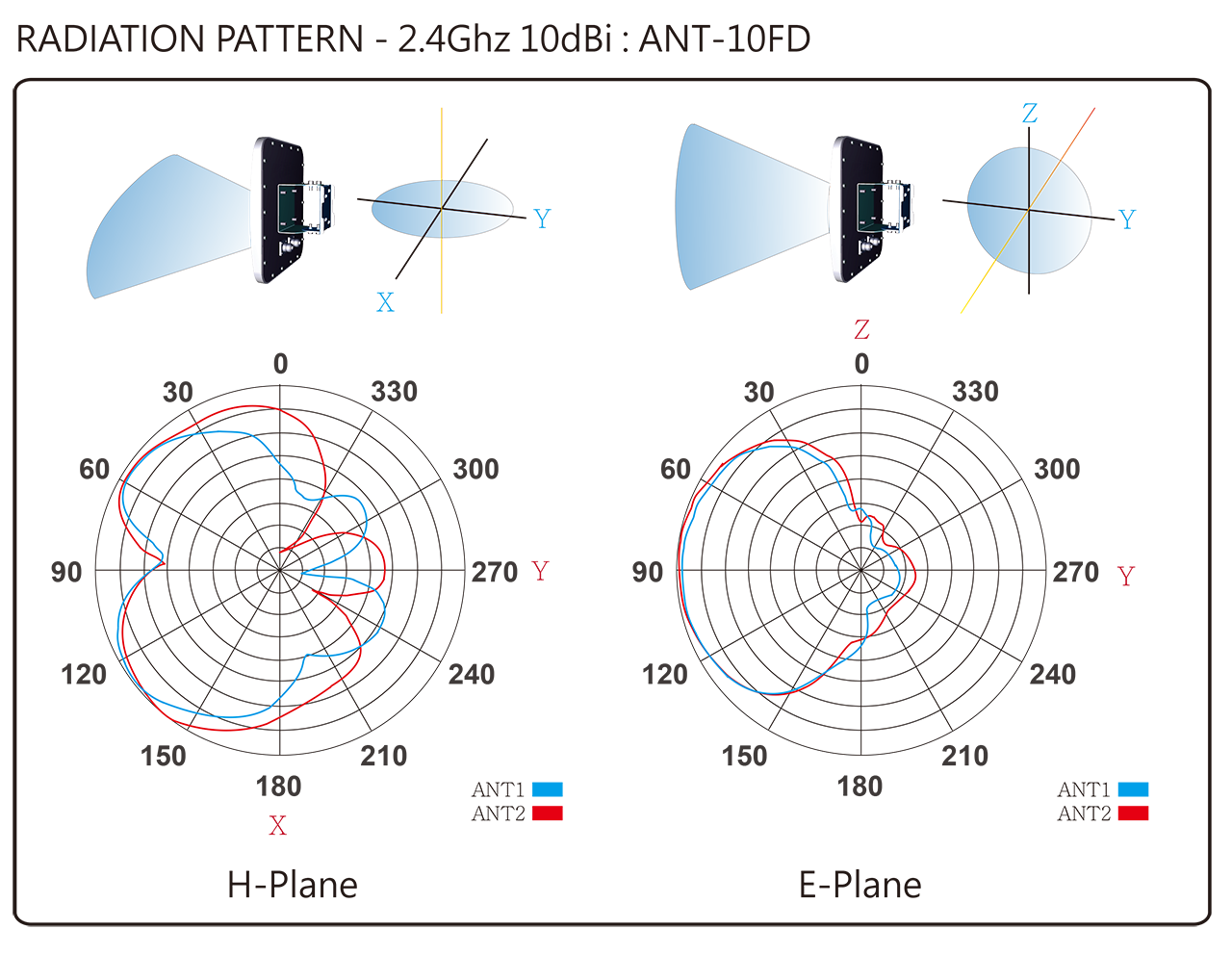

Radiation Pattern

Specifications
Antenna Type Outdoor Directional Panel Antenna (Horizontally-Polarized) Dual Polarization Antenna
Frequency Range  2.4 ~ 2.5GHz (11b/g/n/ax)
Network Specification  Wireless 2.4Ghz IEEE 802.11b/g/n/ax MIMO
Antenna Gain 10 dBi
V.S.W.R ≦1.5
Beam Width   Vertical installation : Horizontal beam 120°, Vertical beam 60°
Horizontal installation : Horizontal beam 30°, Vertical beam 35°
Polarization Vertical & Horizontal (Linear)
Input Impedance 50 Ohms
Materials UV-resistant PC-122U + 2t aluminum alloy
Connector N-Type Female
Form Factor  Supports Wall / Pole Mounting Installation
Adjustable range(with OW-PKUR mounting bracket) Adjustable bracket match SUS304 M6 U-bolt
Available inside diameter : Ø34mm – Ø 54mm
Adjustable bracket match SUS304 Hose Clamp
Available inside diameter : Ø30 – Ø90mm
Horizontal column hanging axis:
360°horizontal rotation
Up and down angle:
Maximum upward 40°, downward 40°
Operation Temperature   -50˚C – + 85˚C
Storage Temperature   -50˚C – + 85˚C
Humidity 5~90% maximum (non-condensing)
IP Rating IP68 Rating (waterproof approval)
Maximum Wind Resistance Velocity Beaufort scale 17 wind load test certificated
Dimension  Antenna: 201*241*32.2 (L x W x H)mm
Mounting bracket: 83*85*78 (L x W x H)mm
Weight 731g
Production Location TW
Certifications RoHS Compliant
Package Contents
ANT-10FD  Main Unit x1
Adjustable Pole & Wall Mounting Kit(OW-PKUR) x1
Quick Installation Guide  x1
Warranty Card x1
