CS-2208G-8P
Enterprise POE Web Managed Switch
8 Ports Gigabit with 2 SFP Ports

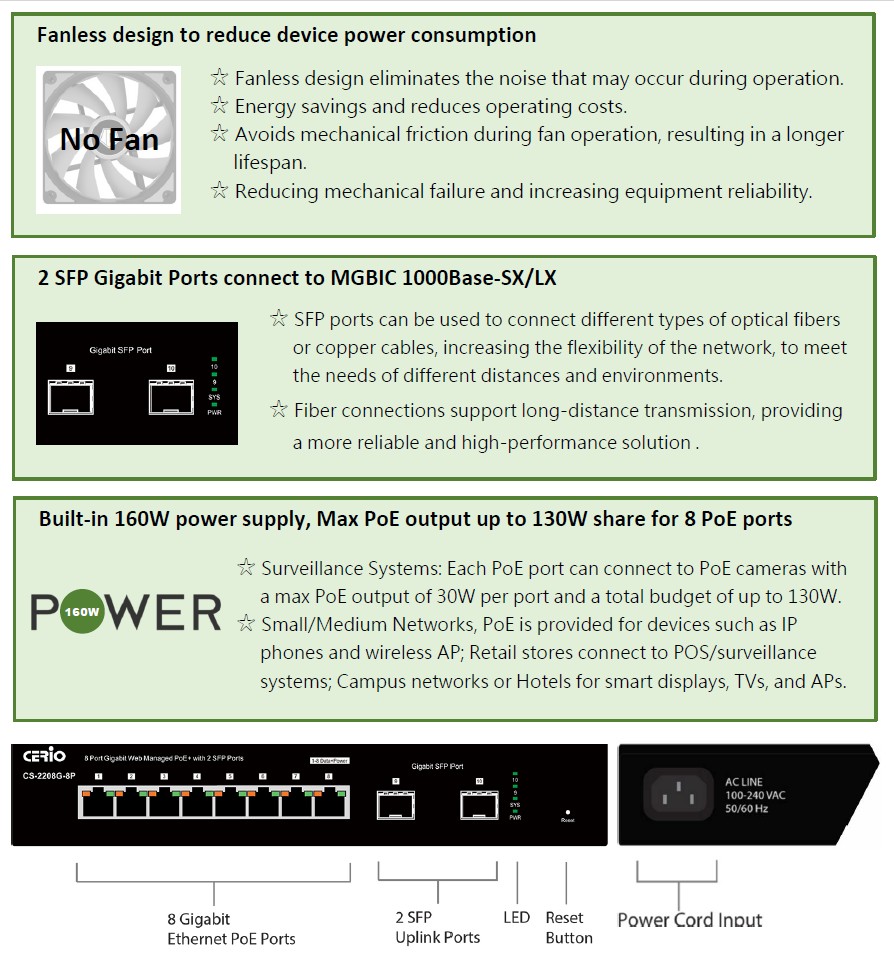

CERIO CS-2000 Series: CS-2208G-8P is a latest A3 version powerful high-performance 8 port 10/100/ 1000Mbps web managed switch with 2 SFP Ports and is compliant with PoE+ IEEE 802.3at and 802.3af standards. It can enable local and remote login management interface to turn on and off PoE power and manage the power restart of powered devices. This switch built in a 160 Watt internal power supply and supports 130 Watt PoE Power budget share for total 8port PoE ports. The management function support IEEE 802.1q Tag Based VLAN, 802.1q VLAN Port and IGMP snooping, etc.
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3af PoE, IEEE 802.3at PoE+ standards.
- Supports Internal Bus Speed up to 20Gbps and the exchange rate over 14.88Mbps.
- Supports Loop Prevention, including Loop Detection, Loop Prevention and Spanning Tree prevent loops from occurring effectively.
- Supports SNMP Trap notification setting function, In order to notify the administrator through the SNMP Trap function when the status of services or updates changes.
- Supports Static MAC designated VLAN and relative port binding transmission function, MAC filtering and blocking function, which can effectively prevent illegal or fake MAC attacks.
- Provides IGMP v1/v2/v3 snooping function.
- Support ”1U” chassis for server room installation and made in Taiwan with stable quality.
