CS-1216G-16P
Ethernet Extend Mode makes transmission distance
up to 280m by per port DIP Switch Control

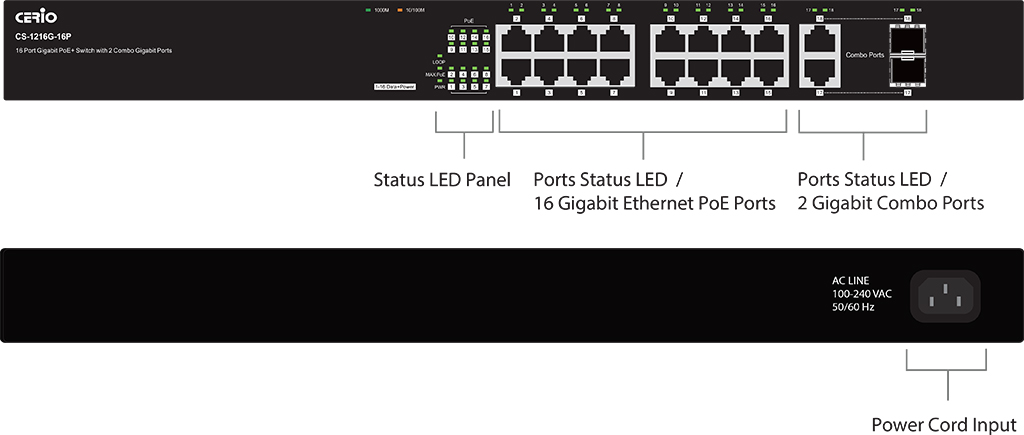

16 Port 10/100/1000M Gigabit PoE+ Switch with 2 Combo Gigabit Ports
The CERIO CS-1216G-16P is a powerful high-performance 16 Port POE Gigabit switch and supports 2 combo Gigabit UTP/SFP uplink ports. The model is compliant with POE+ IEEE 802.3at and 802.3af standards and defines new green power saving idea on the PSE Port. You could easily connect Wireless AP or VoIP phone or IP Camera to this switch without looking for power outlets. Over current protection and circuit shorting protection are also supported to ensure product safety.er )
- Enabling the bandwidth demand for multimedia and imaging applications.
- Designed for SMB deployment and can be upgraded to 1U” chassis for rack mounting.
- Supports a PoE power budget of 350 watts, enough to reliably power devices on all ports.
Highlight Features
- Supports 16 Port Gigabit PSE / PoE+ function, compliant with IEEE-802.3af and IEEE802.3at
- Supports 2 combo Gigabit UTP/SFP uplink ports
- PoE Power Up to 30W per port, 54V DC and PoE budget 350 Watt shared for all PoE ports
- Support Jumbo Frame 9216 byte
- Automatic Source MAC Address Learning and Aging
- Supports up to 8K MAC addresses, Up to 1Mbits buffer
