POE-ISP
Gigabit Ethernet PoE Pass-though Surge Protector
The CERIO POE-ISP is a PoE Pass-through Ethernet Surge Protector provides superior lightening and surge protection over gigabit networks speeds to provide Gigabit Power-over-Ethernet (PoE) over a single Ethernet cable. It provides durable design featuring a higher surge capability and lower clamping voltage. And the 10 kA Impulse Discharge Current guarantees reliable surge protection. The advantage of POE-ISP surge protector design is the added level of protection due to its large power rating and fast discharge time.

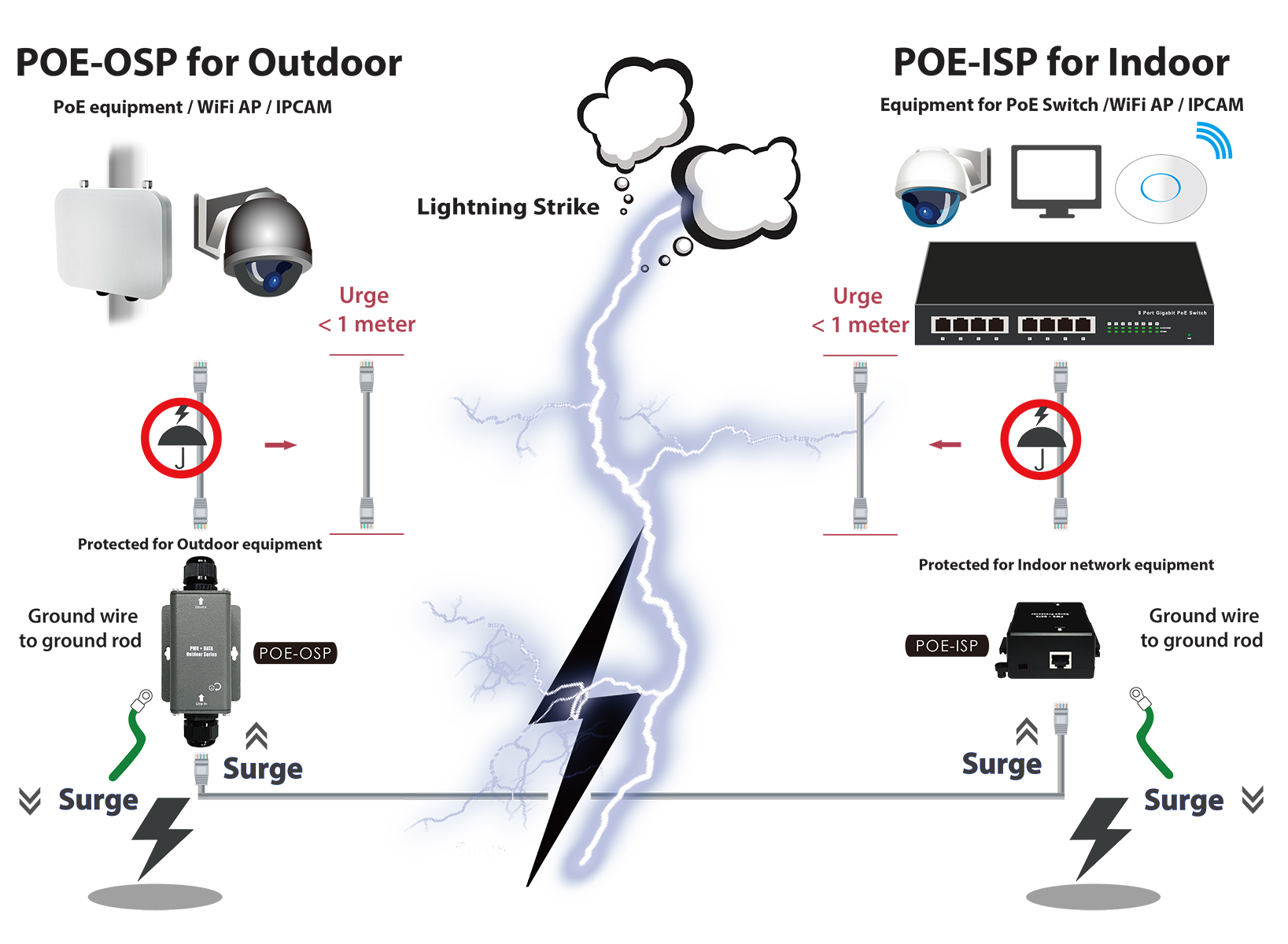

Product Application
Highlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T standards.
- Supports 10/100/1000Mbps Gigabit Ethernet speed, Power over Ethernet (PoE) pass through and compatible with IEEE 802.3bt PoE Class 8 or less power level.
- Load current self-protection mechanism and grounding wire function pulse discharge current protection design.

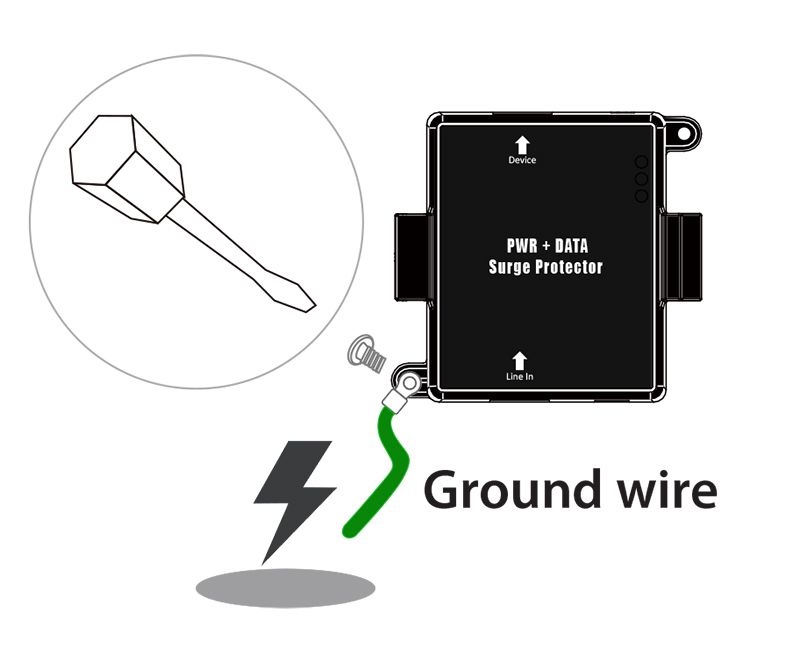

- Built in grounding pad which can connect to grounding cable to lower clamping voltage for better and more reliable protection and supports 10 kA Impulse Discharge Current.
- Supports 2 protection mode : Line-to-Ground and Line-to-Line.
- Protects all Eight(8) pins of the Ethernet cable.
- Plug and Play, no software required.
- Supports desktop , multiple units combination and wall mounting easy to use.
- Functionality
- The CERIO POE-ISP PoE Pass-through Ethernet Surge Protector can function as a transmitter for a PoE switch to deliver power and data through an Ethernet cable. This device protects all 8 pins and is compatible with all types of RJ45 cables. The PoE Ethernet Surge Protector can handle data rates of up to 1000 Mbps, and is backwards compatible with older 10/100 Mbps ports.
- Surge Protection
- CERIO POE-ISP provides higher surge capability and lower clamping voltage. It is compliant with IEC/EN 61643-21 and IEC/EN 61000-4-5 standard. The benefit of CERIO POE-ISP includes maximize surge capability and enhancing reliability device safety.
- Additional Benefits
- Some additional benefits of CERIO PoE Surge Protector include cost saving, small pocket size and convenience in network planning, and higher reliability.
- Easy installation
- The CERIO PoE Surge Protector is simple Plug-and-Play, requires no configuration.

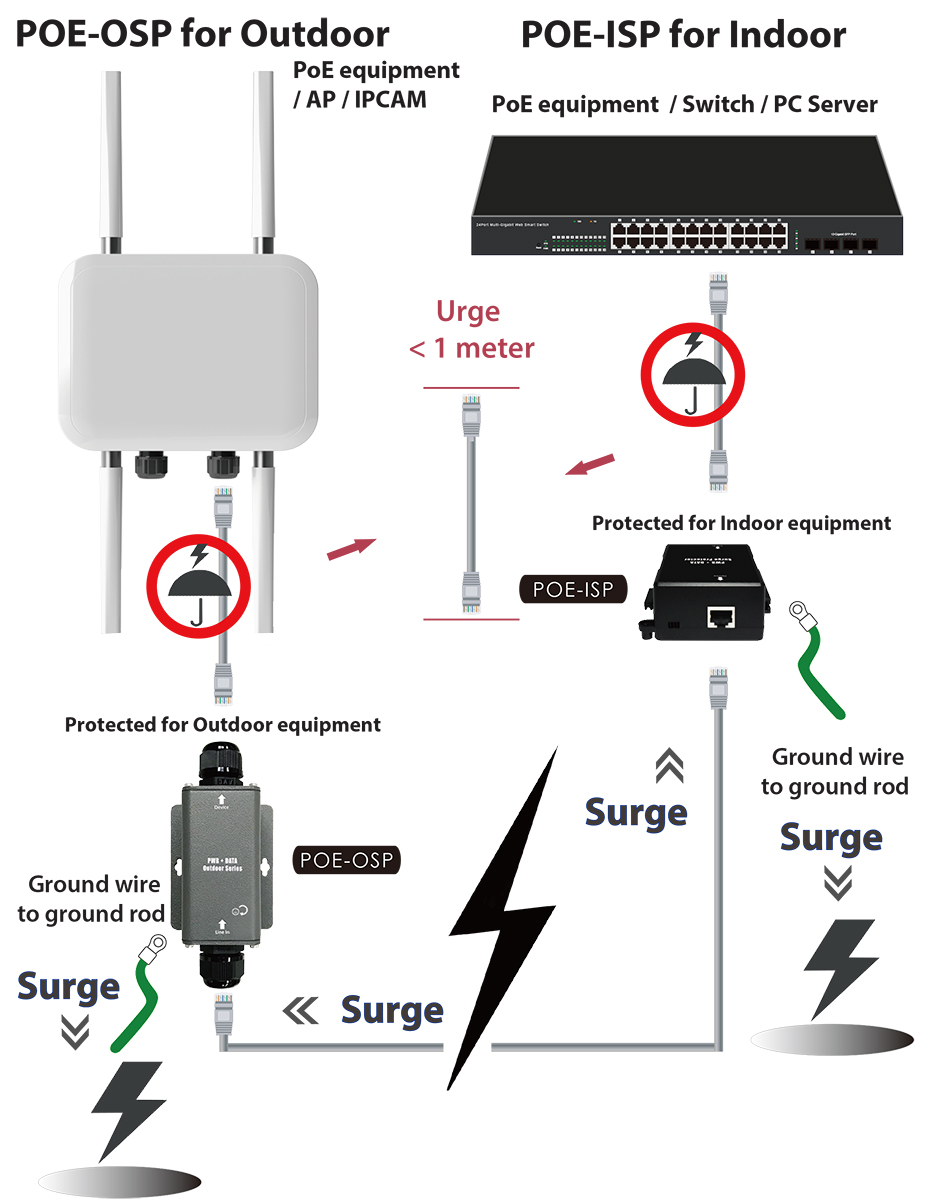

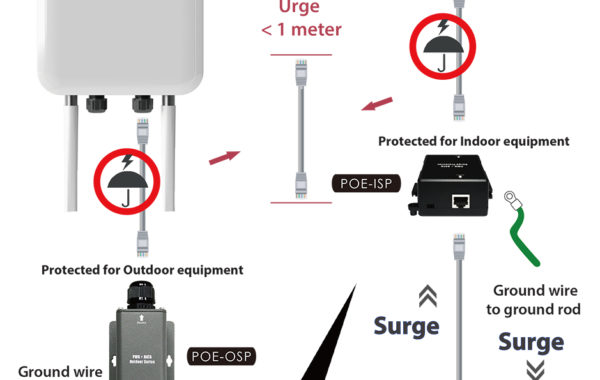

Product Application
Hardware Overview
Product Units Combination
| Standards & Hardware Specifications | |
| Standard | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3af/bt POE Pass-through |
| Network Media | 10BASE –T: UTP Cat. 3 or up 100BASE-TX : UTP Cat. 5 or up 1000BASE-T: UTP Cat. 5 or up |
| Data Transfer Rate | 10/100/1000Mbps (Half-duplex)
20/200/2000Mbps (Full-duplex) |
| Clamping Line-to-Ground | 20 kV (10/700 us) 600V at 10 kA (8/20 us) |
| Clamping Line-to-Line | 6 kV (10/700 us) 20V at 1 kA (8/20 us) |
| Data in | Connects PC/HUB/Switch |
| Ethernet Connector | RJ-45 x1 for Line in RJ-45 x1 for Line out |
| Surge Protection Design | 10 kA (After grounding ability) |
| Environmental & Mechanical Characteristics | |
| PoE Operation DC Voltage | 60 VDC (Max) |
| PoE Operation DC Current | Two pair : 0.65A (Max) Four pair : 1.3A (Max) |
| PoE Power Load | 74Watt (Four Pair Max) |
| POE Input Voltage | 44V~60V |
| Operating Temperature | -10° to 60° C |
| Storage Temperature | -20° to 65° C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x H x D ) | 84.5 x 80 x 39.5mm |
| Weight ( g ) | 96.2g |
| Case of material | ABS |
| Production Location | TW Only |
| Supports | IEC/EN 61643-21 (Safety) compatible IEC/EN 61000-4-5 (EMC) compatible |
| Certifications | CE, FCC and RoHS Compliant |
| Package Contents | |
| POE-ISP Main Unit | x1 |
| Quick Installation Guide | x1 |
| 18AWG grounding cable | x1 |
| Wall mounting screw set | x1 |
| Warranty Card | x1 |
