POE-PG30I
CERIO POE-PG30I supports Class3 15.4Watt PoE and Class4 30Watt PoE+ power level. It’s a single port Passive PoE Gigabit PoE+ Injector. It provides DC 56 Volt over Ethernet cables and provides two Ethernet ports connection. The CERIO Gigabit PoE+ Injector can simultaneously transmit network data and power to the PD equipment through the UTP Ethernet Cable transmission. It is a cost-effective Gigabit PoE+ Injector and provides the best solution for IP Cam surveillance system integrators, etc.

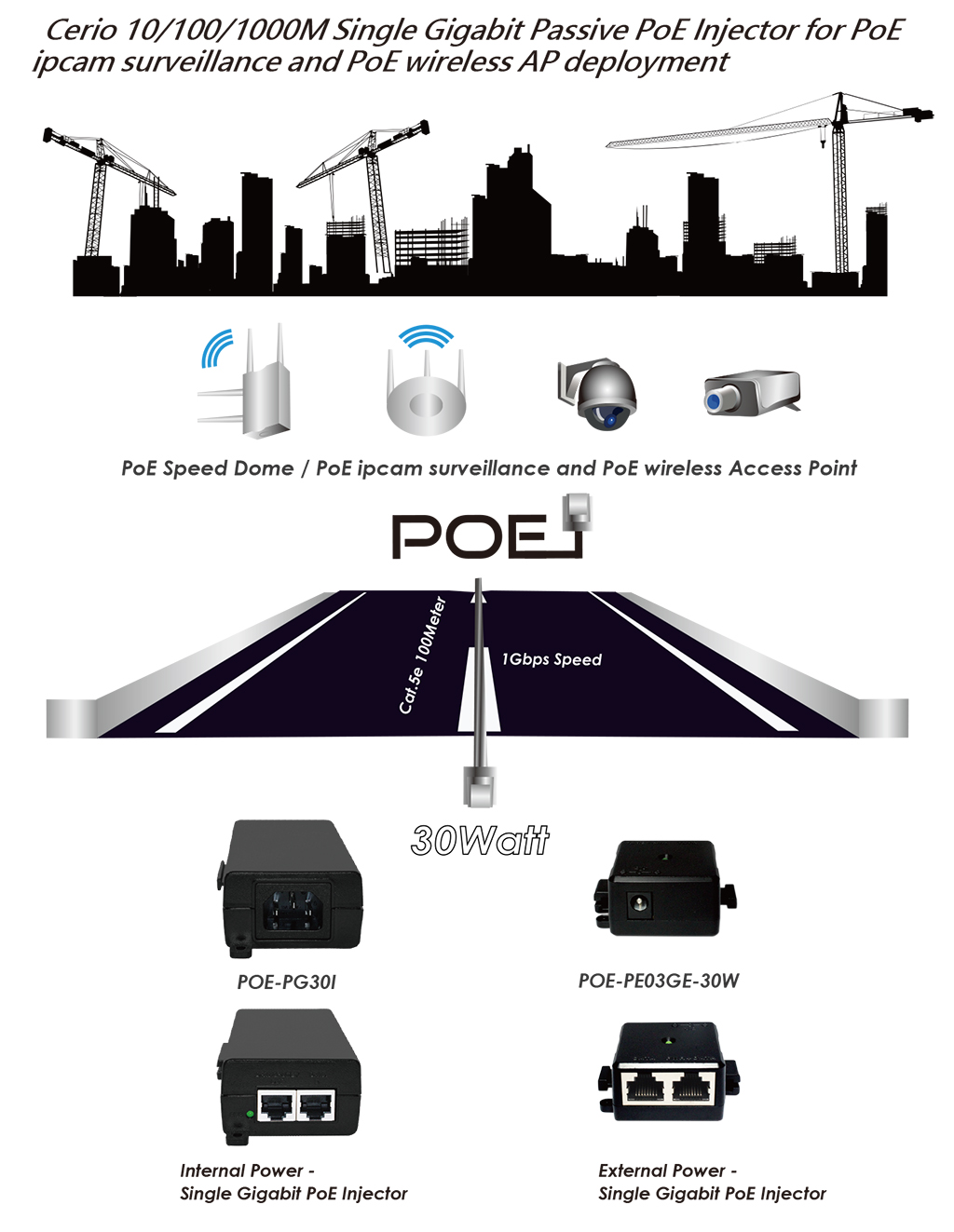

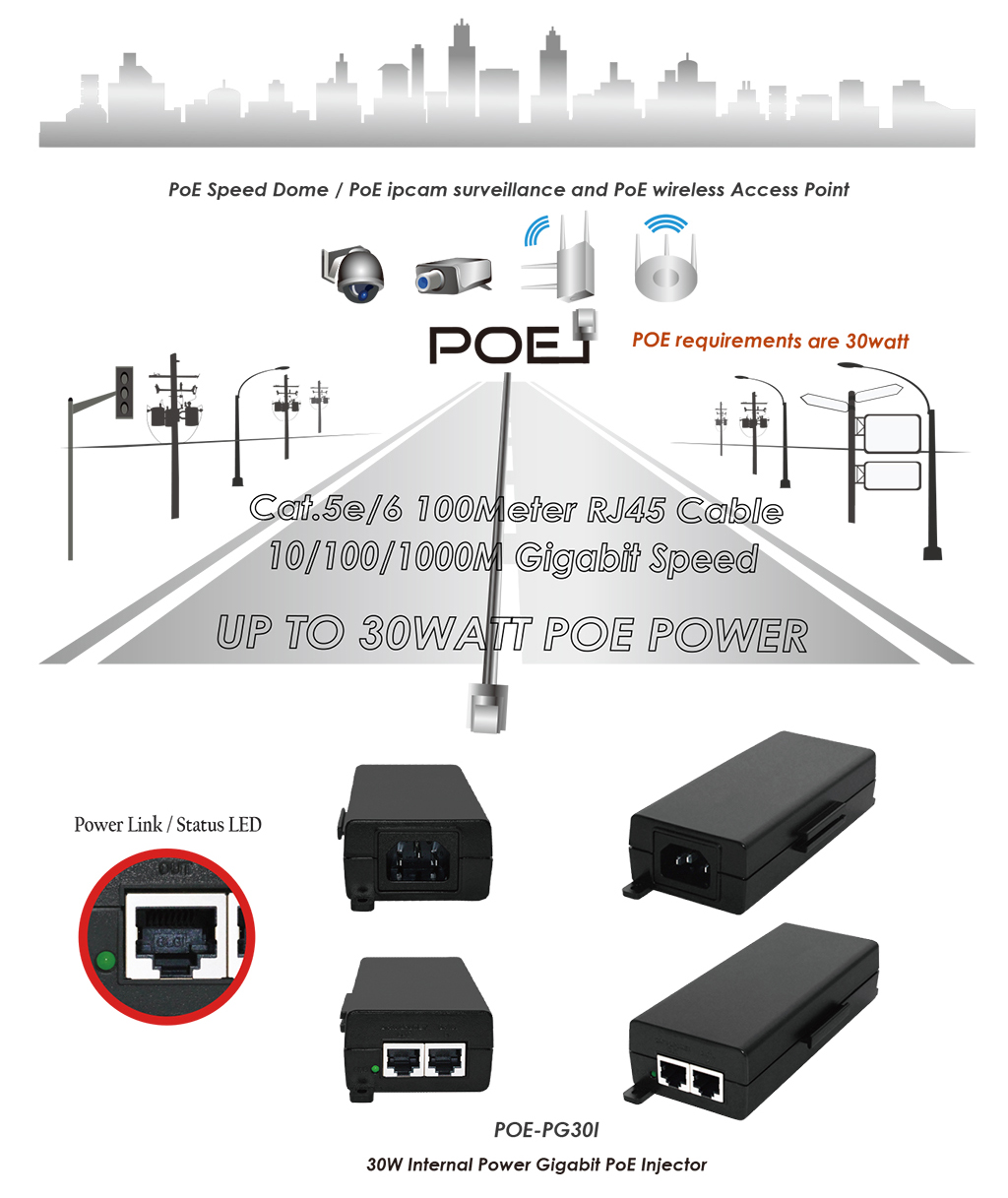

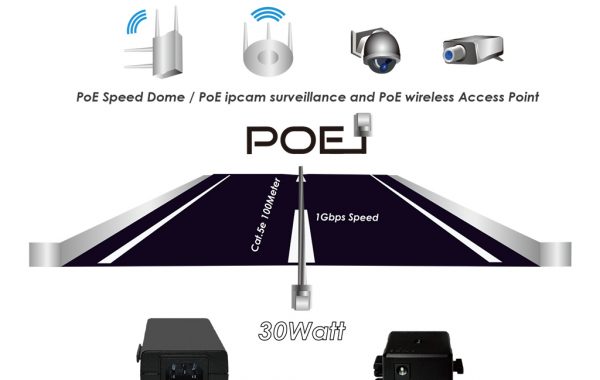

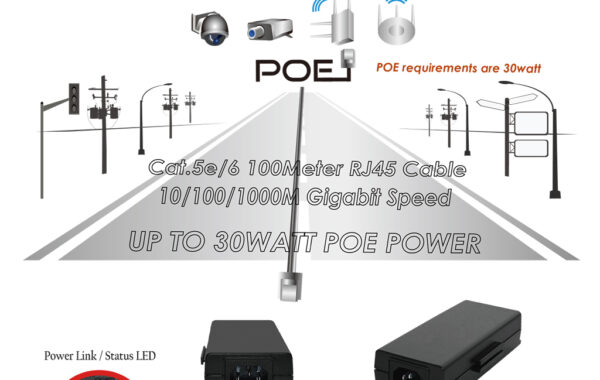

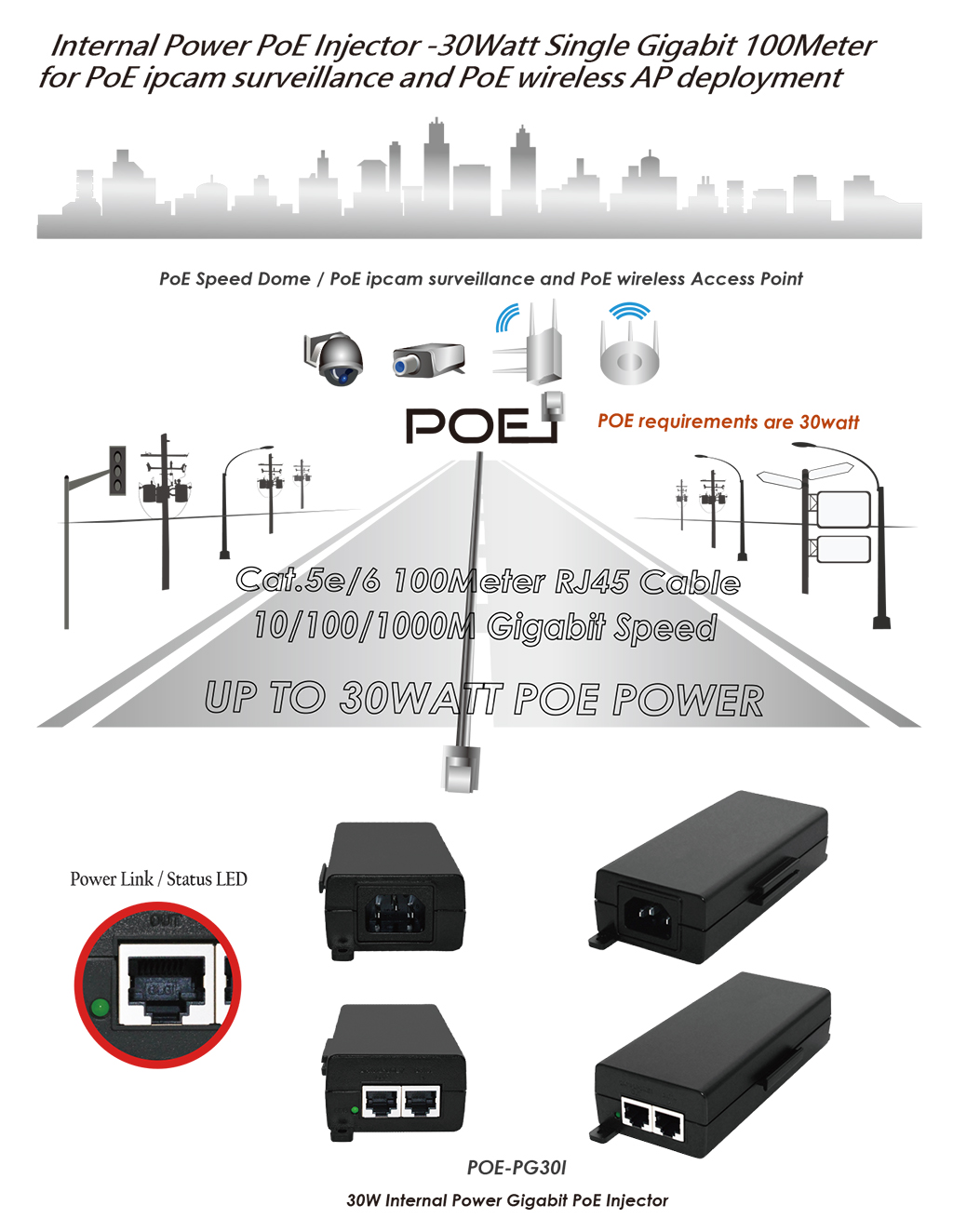

POE vs. Deployment Applications
Higlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX and IEEE 802.3ab 1000Base-T standard.
- Supports 10/100/1000Mbps Gigabit RJ45 Ethernet Connection.
- Supports PIN 1/2,3/6 and 4/5,7/8 power pin.
- Internal power design and supports 56V PoE+ output.
- Provides Passive PoE+ power level and PoE max power up to 30Watt Class4 PoE+ output.
- Support PSE / PoE Power Over Ethernet function which can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
- Over Current Protection and Short-circuit Protection.
- Supports Desktop, Wall mounting and Units Combination for easy to bundles organize the Ethernet cables.
Functionality
The CERIO POE-PG30I is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. With Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Moreover, it supports PIN 1/2,3/6 and 4/5,7/8 power pin designed, no matter the PD devices is designed Type-A or Type-B all can supply power automatically. The output power will be dependent on the power rating of the power supply that one chooses to use. It brings a great economic benefits to the monitoring surveillance system.
Long Distance Application
CERIO PoE+ Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
ESD Protection
POE-PG30I supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
Additional Benefits
Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.
Easy installation
Plug-and-Play, requires no configuration.

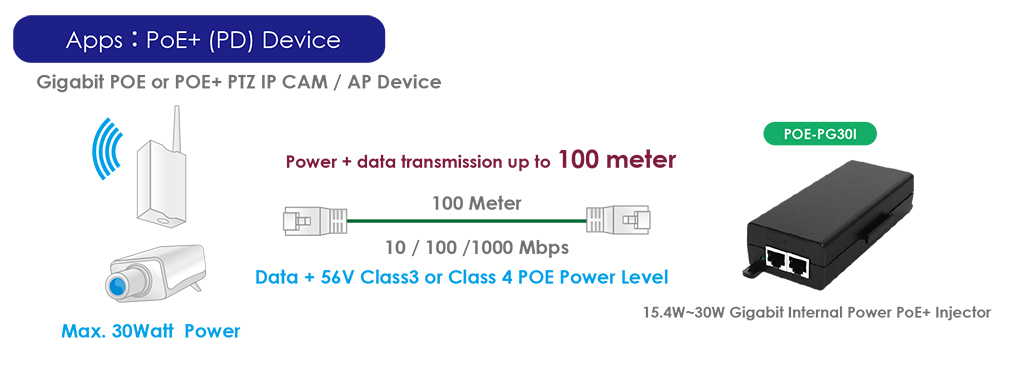

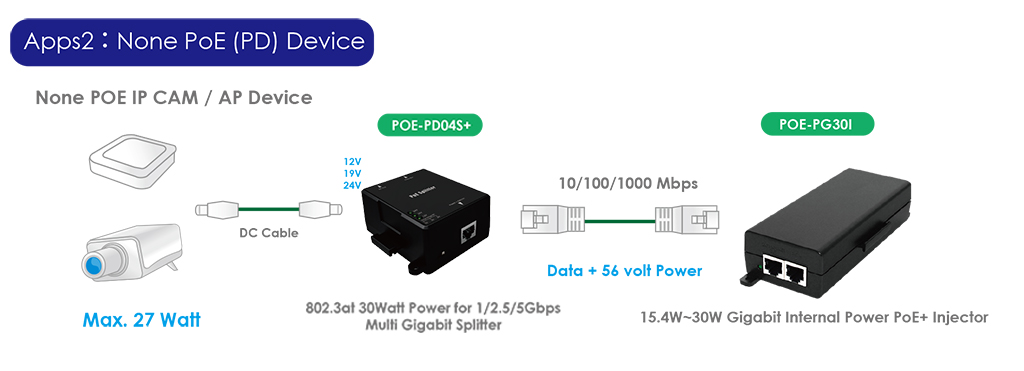

POE-PG30I Application

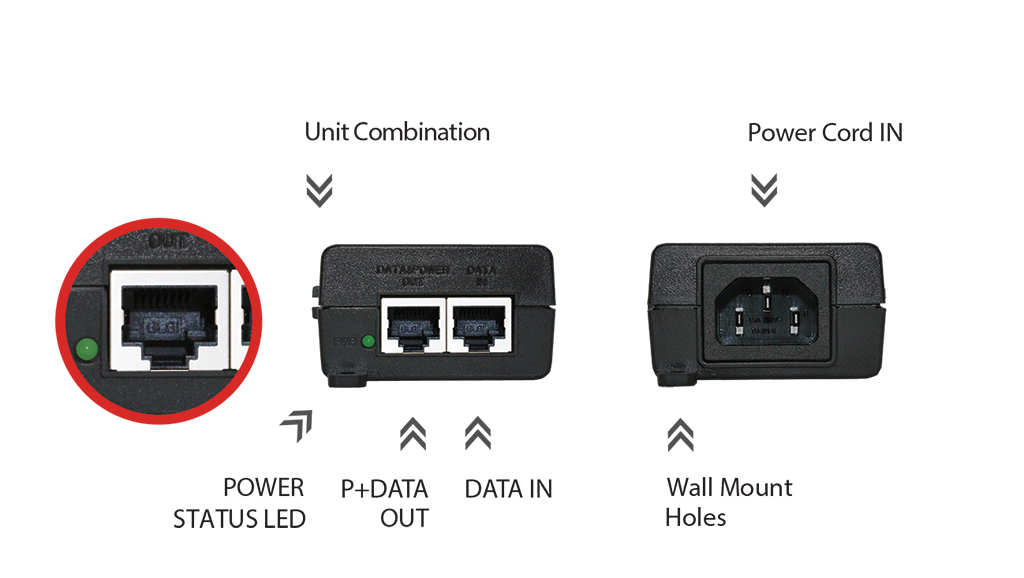

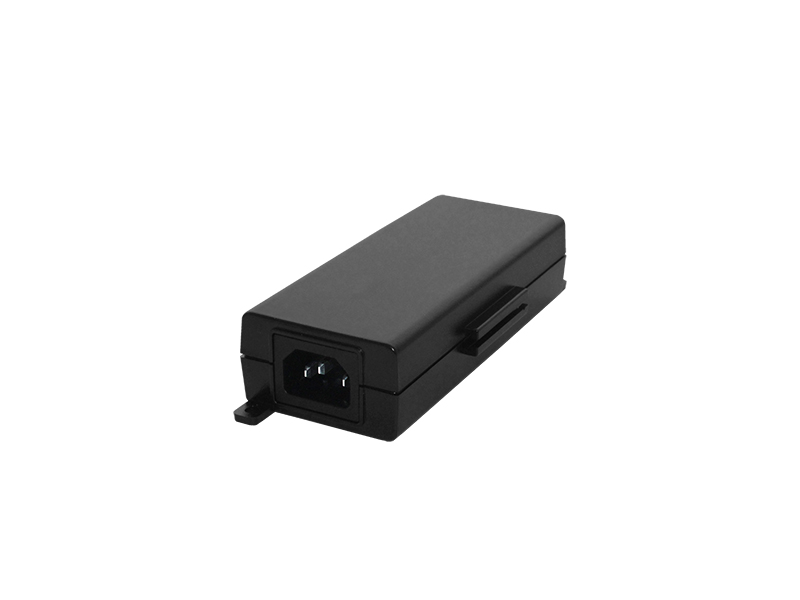

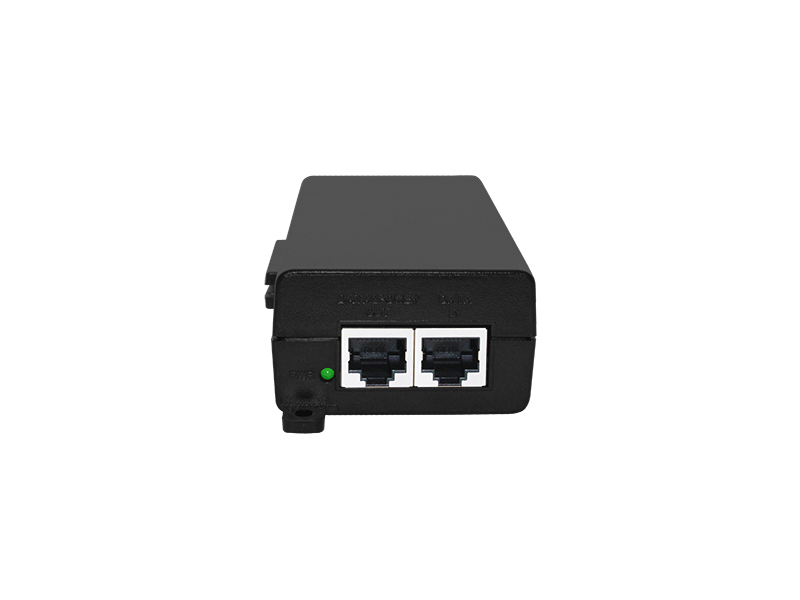

POE-PG30I Hardware Overview

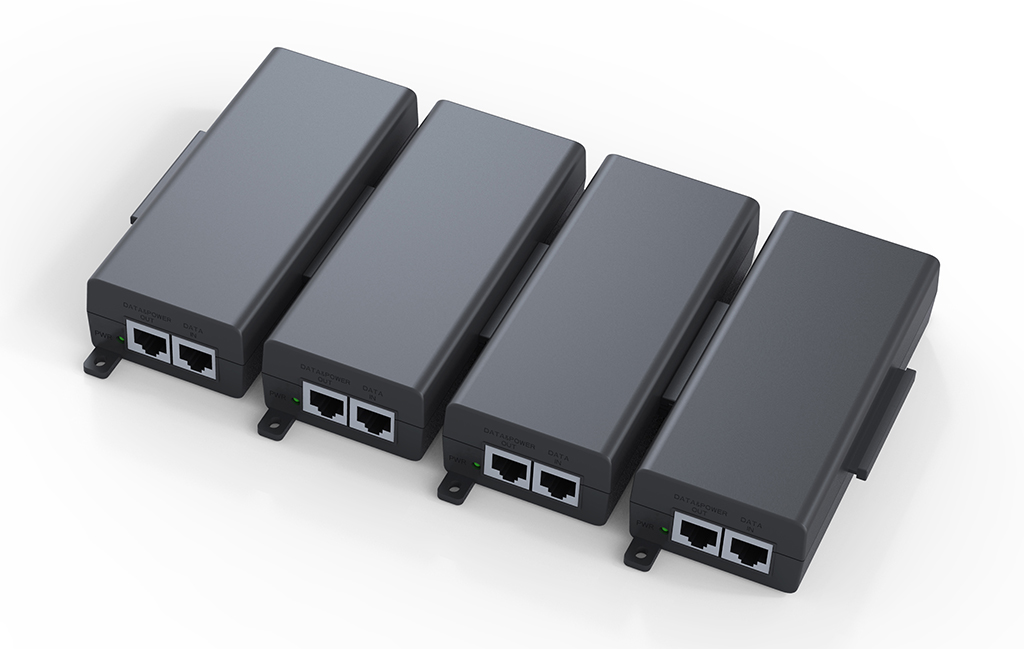

Units Combination
| Standards & Hardware Specifications | |
| Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T |
| Network Media | 10BASE –T: UTP Cat. 3 or up 100BASE-TX : UTP Cat. 5 or up 1000BASE-T: UTP Cat. 5 or up |
| Data Transfer Rate | 10/100/1000Mbps (Half-duplex), 20/200/2000Mbps (Full-duplex) |
| PoE Type | Passive POE |
| Data PIN | PIN 1/2,3/6 & 4/5,7/8 |
| Power PIN | End-span (Type-A): PIN 1/2,3/6 Mid-span (Type-B): PIN 4/5,7/8 |
| Ethernet Connector | RJ-45 x1 : Data RJ-45 x1 : Power + Data |
| Power Interface | Output: RJ45 Passive PoE+ 56V Out Input: AC In |
| ESD Protection | Supports ESD (Electro Static Discharge) Over Voltage protection and Short Circuit Protection |
| Environmental & Mechanical Characteristics | |
| Max PoE Power | 30Watt |
| Power Requirement | AC Power Code |
| PoE Output Voltage | 56Volt |
| Input Voltage | AC 100~240V, 50-60Hz |
| LED | System: Power (Green) |
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -40° to 70° C |
| Storage Humidity | 5% to 90% non-condensing |

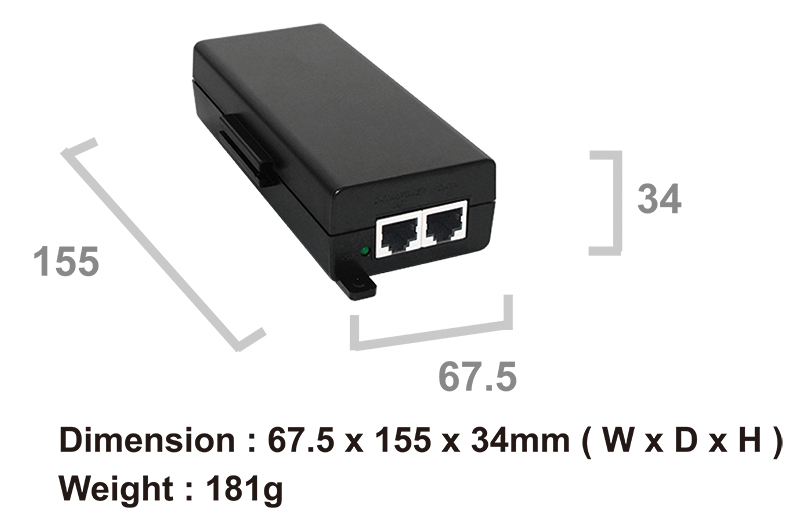

| Dimension ( W x H x D ) | 67.5*155*34mm |
| Weight ( g ) | 181g |
| Form Factor | Wall mounting, Desktop, Units Combination |
| Case of material | Plastic |
| Production Location | TW |
| Certifications | FCC ,CE, RoHs compatible |
| Package Content | |
| POE-PG30I Main Unit | x1 |
| Power Code | x1 |
| Warranty Card | x1 |
