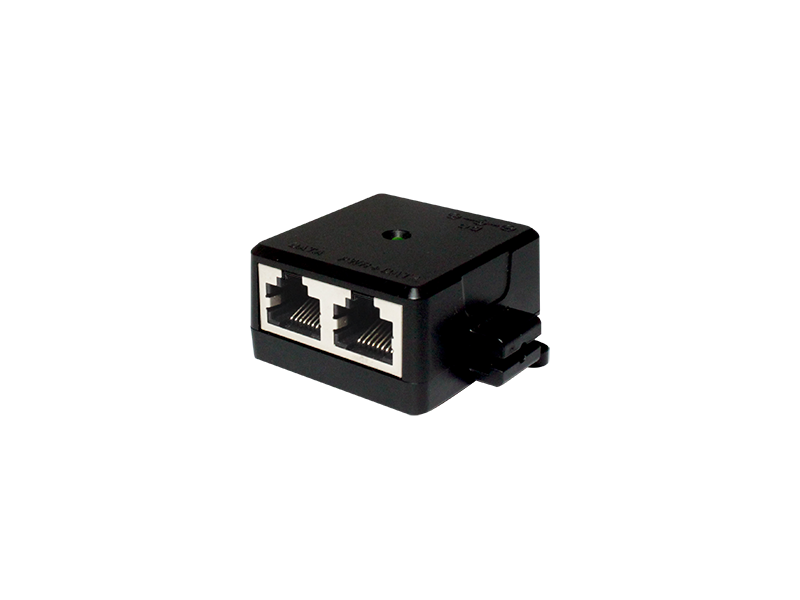

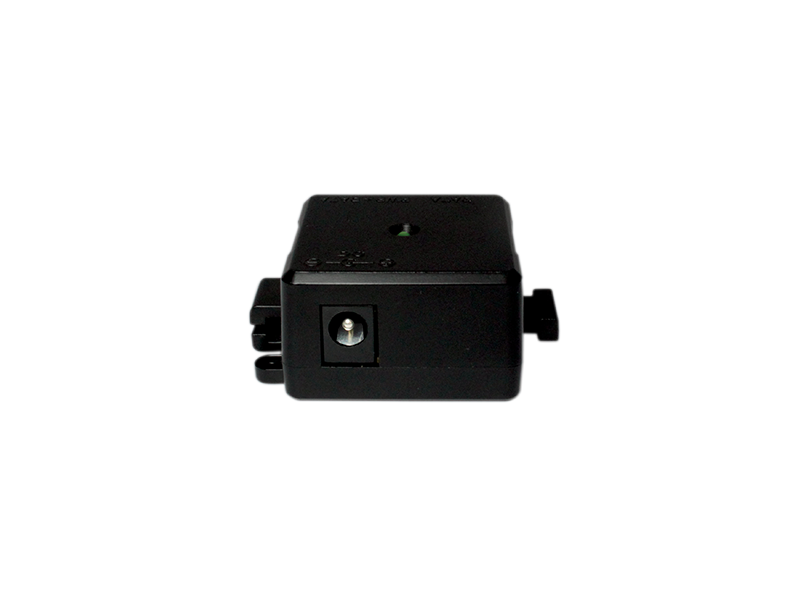

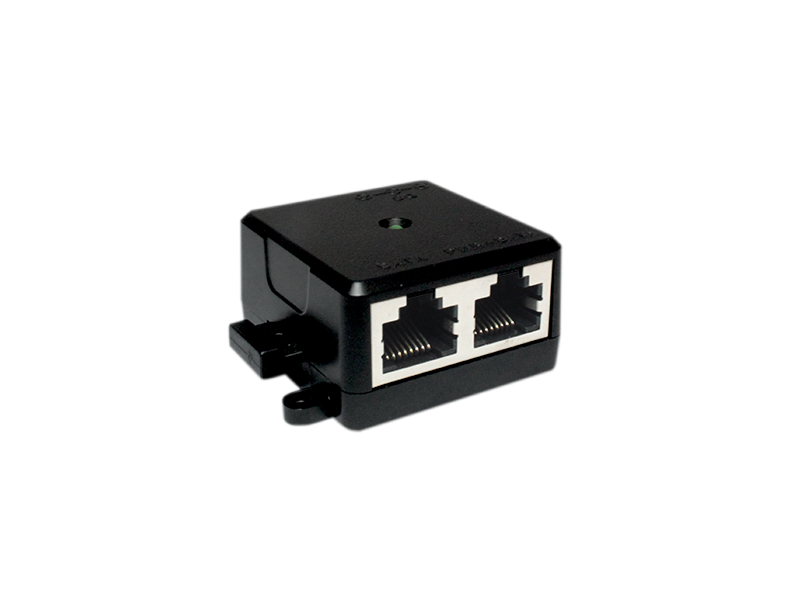

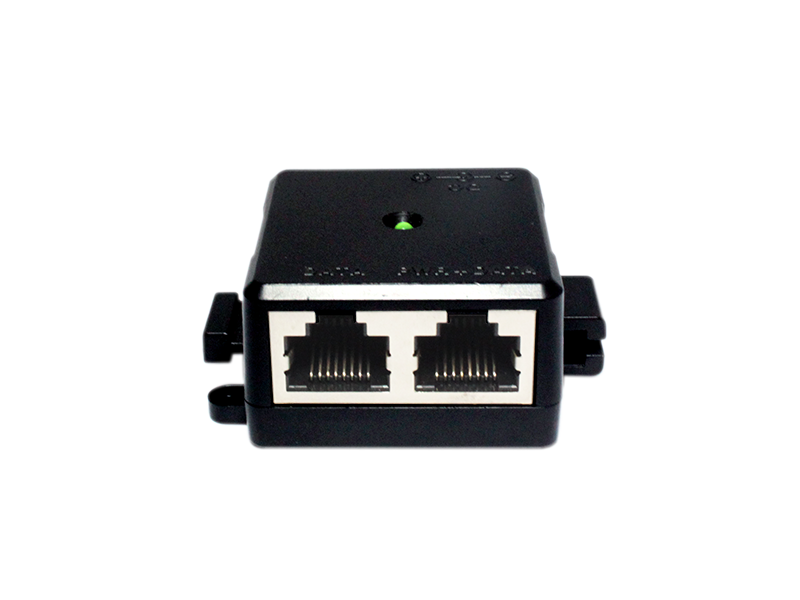

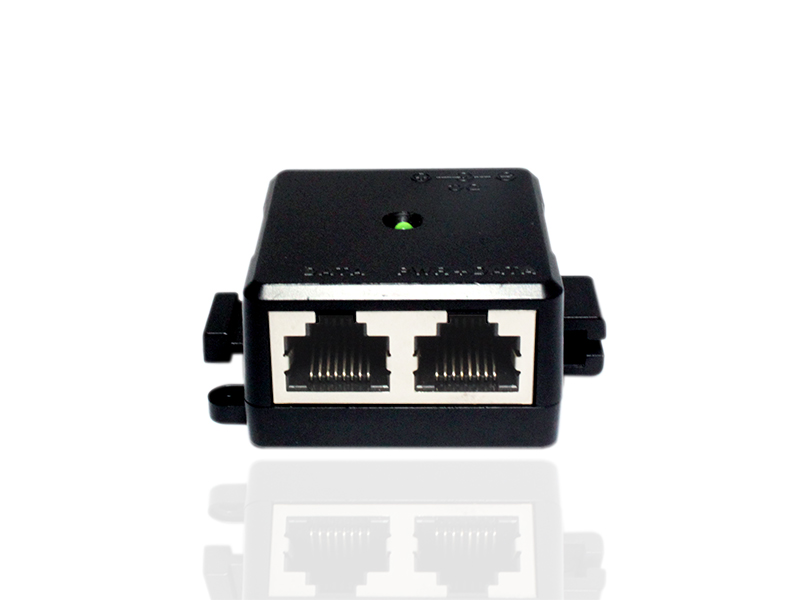

POE-PE03GE-30W
The POE-PE03GE-30W is a passive type Gigabit PoE Injector bundle 30Watt Power supply. You can simultaneously transmit network data and power to PD powered network equipment through the RJ45 UTP cable. The simple connection provides a better solution for network devices for where the power source is not readily available.
Higlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
- Supports PoE Powered Device (PD ) classification identify in accordance with Class 3/4 PoE 15.4/30Watt Power Levels.
- Bundles 30Watt Power supply for maximum power capacity of 30Watt.
- Over Current Protection and Short-circuit Protection.
- Supports desktop or wall mounting installation and multiple units combination for easy to bundles organize the Ethernet cables.
Functionality
The POE-PE03GE-30W is a cost effective solution for deploying Gigabit PoE Wireless Access Points or PoE IP Surveillance or PoE IP Phone in environments where the power source is not readily available or power cables are not permitted. In Gigabit Ethernet, four pairs of Cat5 or Cat5E twisted pairs are used as the medium for transmission. The actual data transmission only takes up two pairs of wires (pairs 1-2 and 3-6). The PoE technology utilizes the remaining pairs (pairs 4-5 and 7-8) to conduct electricity. The output power will be dependent on the power rating of the power supply that one chooses to use. This helps to reduce number of wires that lead up to tower and others.
Long Distance Application
Cerio POE Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
Additional Benefits
Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.
Easy installation
Plug-and-Play, requires no configuration.

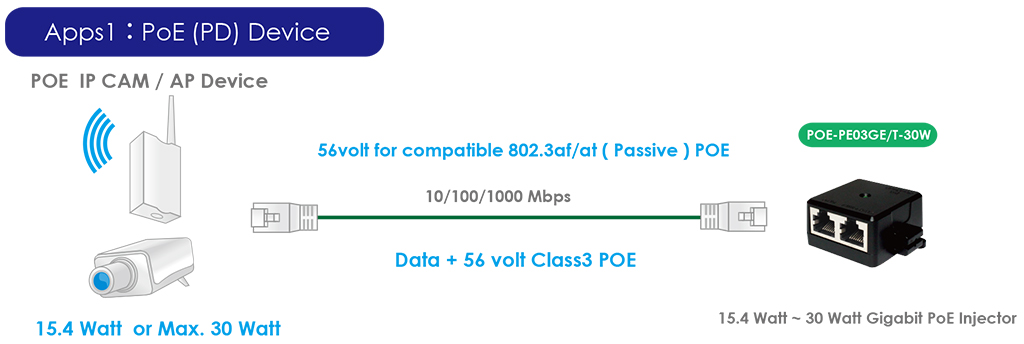

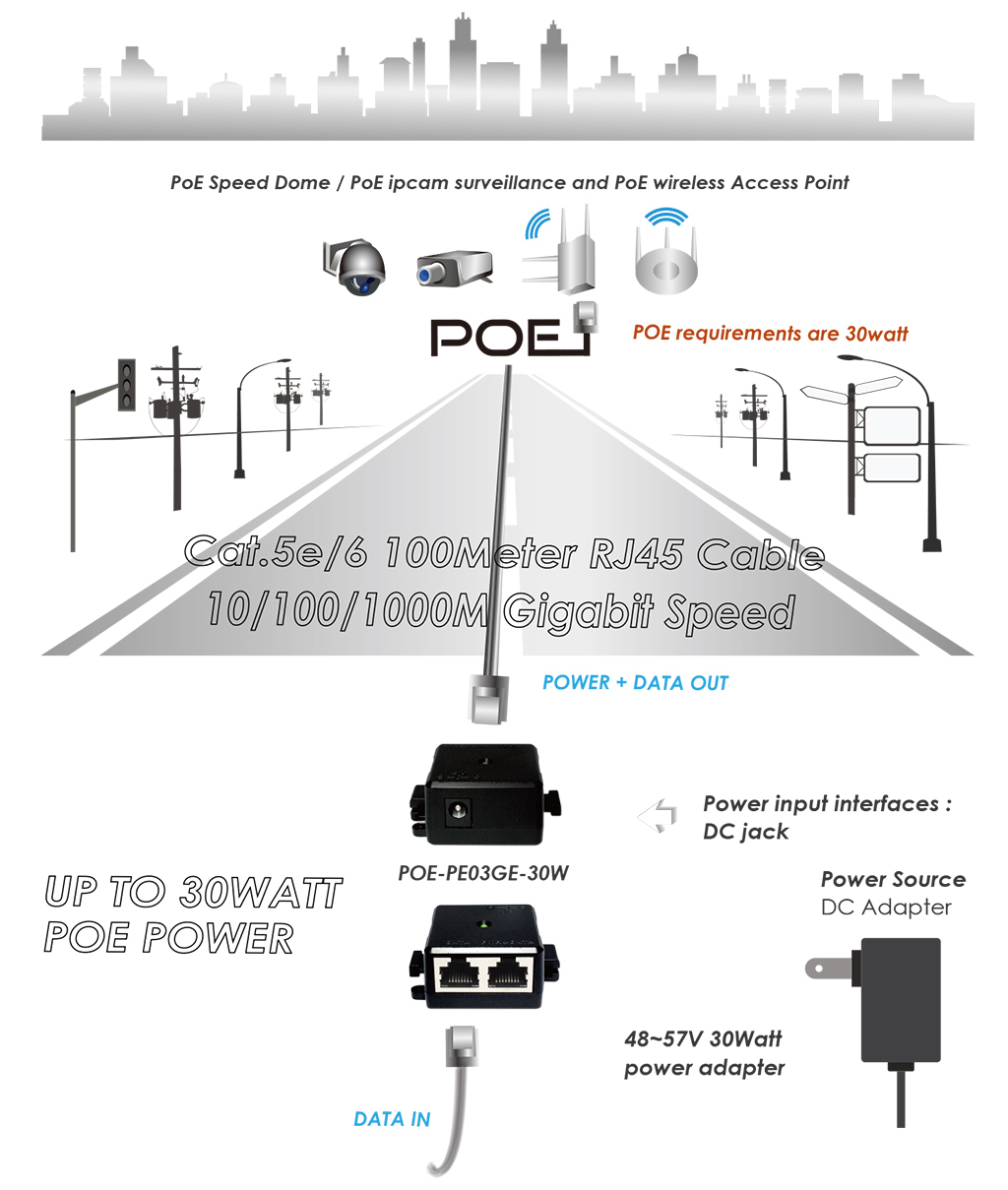

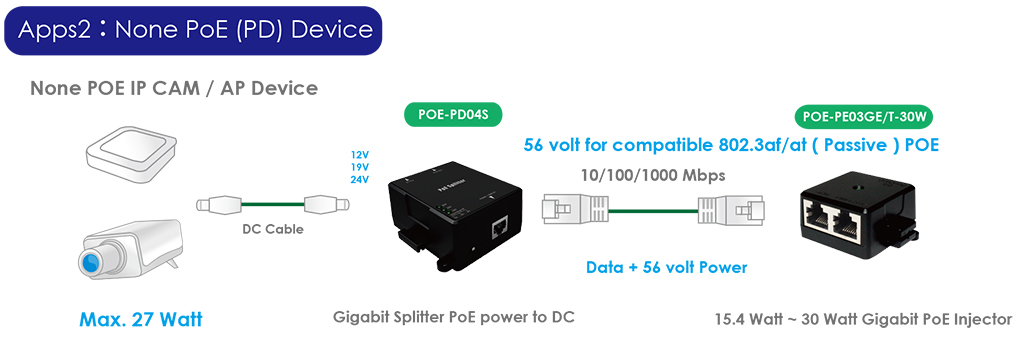

Product Application

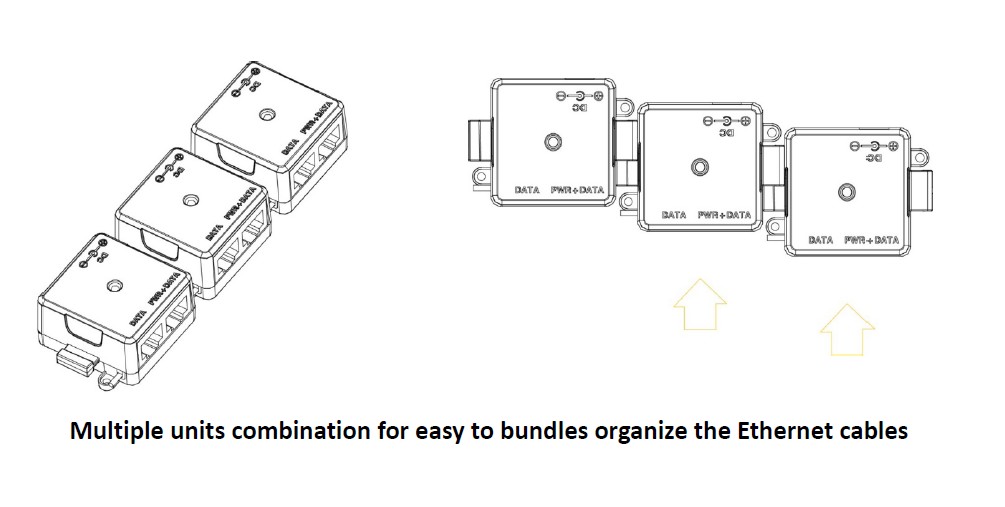

Units Combination

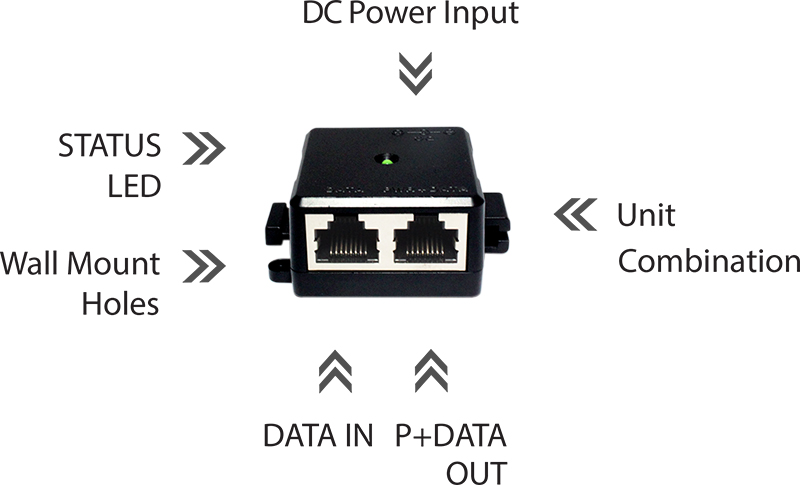

Hardware Overview
| Standards & Hardware Specifications | |
| Standard | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000Base-T |
| Network Media | 10BASE –T: UTP Cat. 3 or up 100BASE-TX : UTP Cat. 5 or up 1000BASE : UTP Cat. 5 or up |
| Data Transfer Rate | 10/100/1000Mbps (Half-duplex), 20/200/2000Mbps (Full-duplex) |
| PoE Type | Passive POE |
| Data PIN | PIN 1/2 & 3/6 , 4/5 & 7/8 |
| Power PIN | PIN 4/5 & 7/8 |
| Power Interface | Output: RJ45 Passive PoE+ Out Input: DC In |
| ESD Protection | Over Voltage protection and Short Circuit Protection |
| Environmental & Mechanical Characteristics | |
| Max PoE Power | 30Watt |
| Power Requirement | 52~56V 30W External Power Supply |
| Input Voltage | 48-57Volt |
| LED | System: Power x1 |
| Operating Temperature | 0° to 55° C |
| Storage Temperature | -40° to 70° C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |

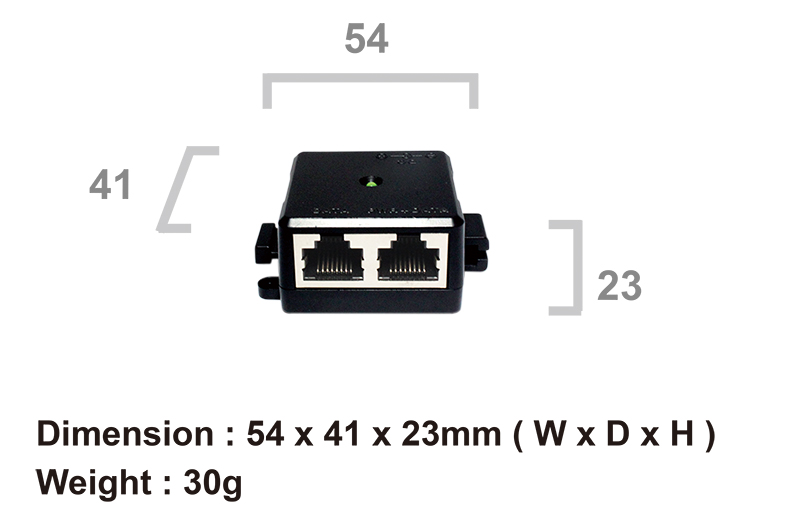

| Dimension ( W x H x D ) | 54*41*23mm |
| Weight ( g ) | 30g |
| Form Factor | Wall mounting /Desktop/ Units Combination |
| Case of material | ABS |
| Production Location | TW |
| Certifications | RoHs compatible |
| Package Content | |
| POE- PE03GE-T Main Unit | x1 |
| Power Adapter | x1 |
| Warranty Card | x1 |
