POE-DX30T
CERIO POE-DX30T MultiG/10Gigabit Wide Temperature PoE Injector supports IEEE 802.3af/at Power Over Ethernet Standard. It’s an Active PoE+ Injector supports 2 Ethernet ports and provides DC 48-57V over Ethernet cables. It provides Screw Terminal Block and DC In both Power System. User can select either one to supply power. The max. PoE output power up to 30Watt. The POE-DX30T can simultaneously transmit network data and power to the PD equipment through the UTP Ethernet Cable transmission. It provides durable and reliable metal casing and wide temperature (-40° ~ 75° C) design, also supports wall-mounting installation, which can meet high-standard industrial environment network construction requirements.

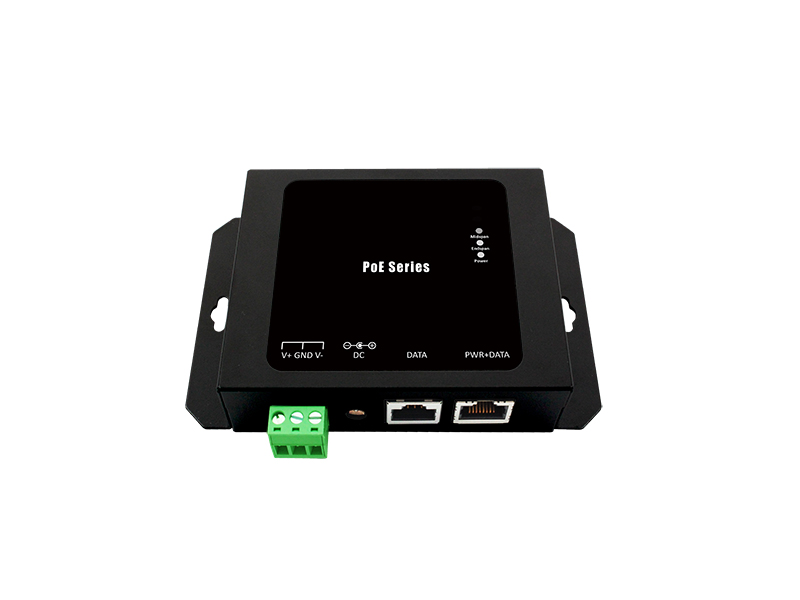

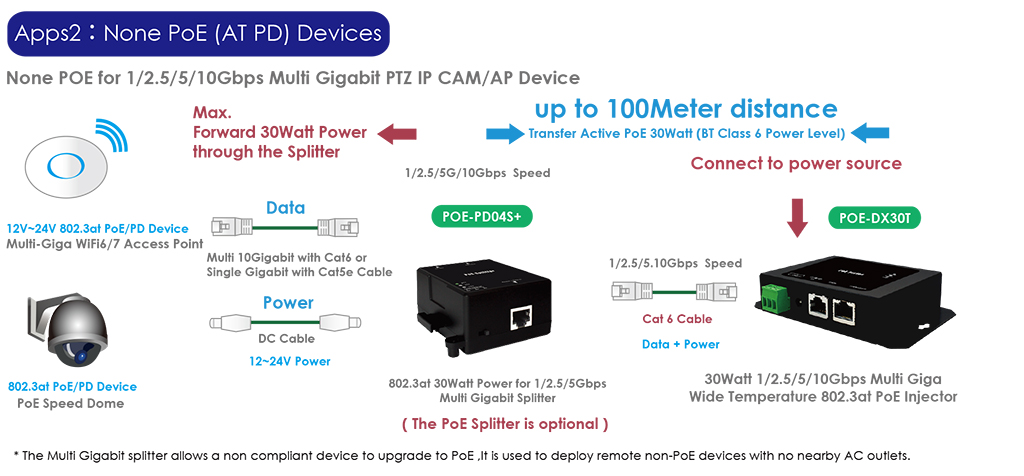

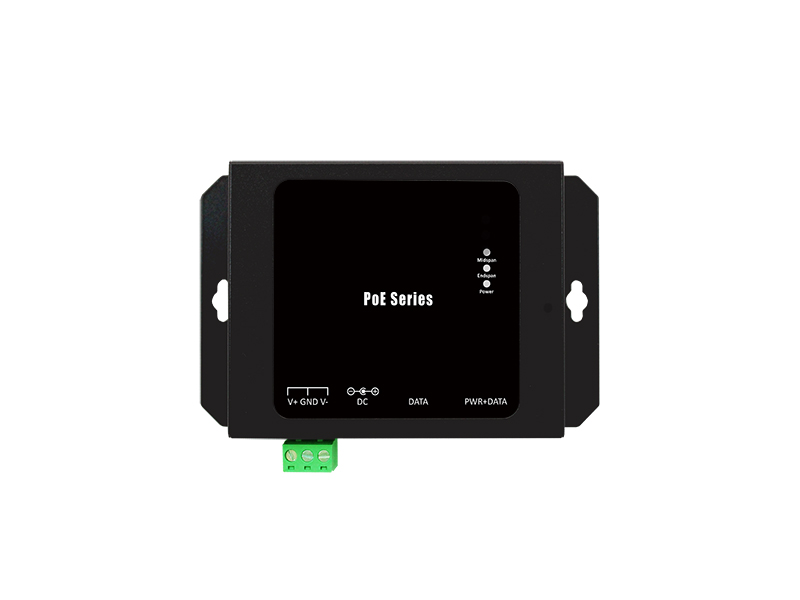

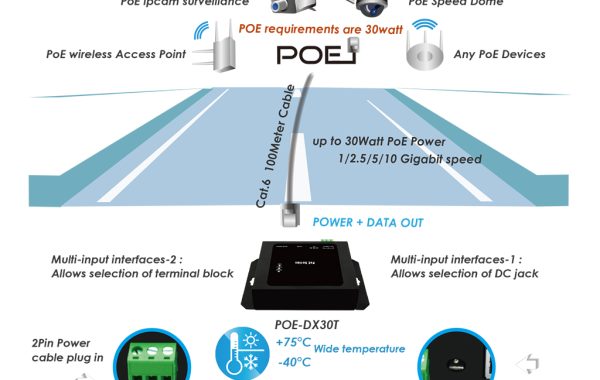

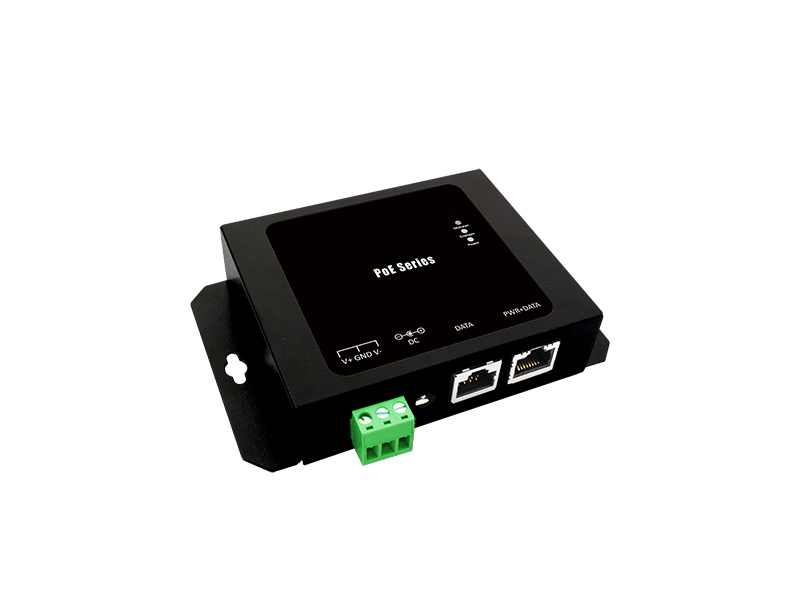

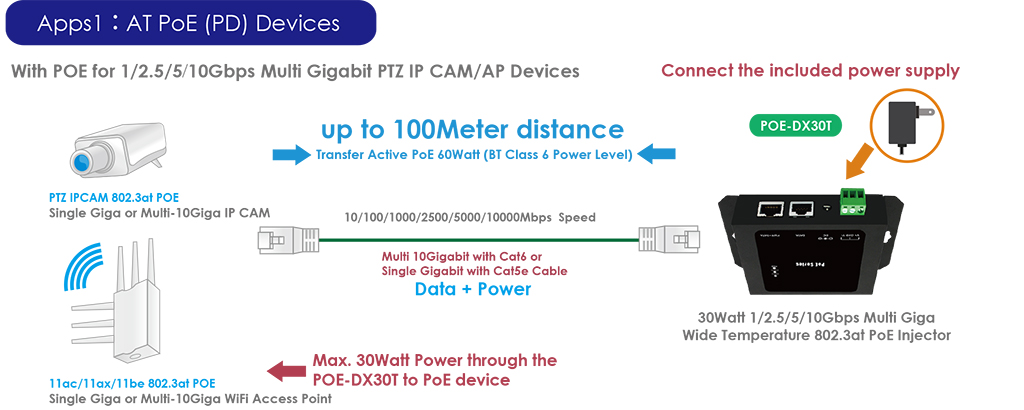

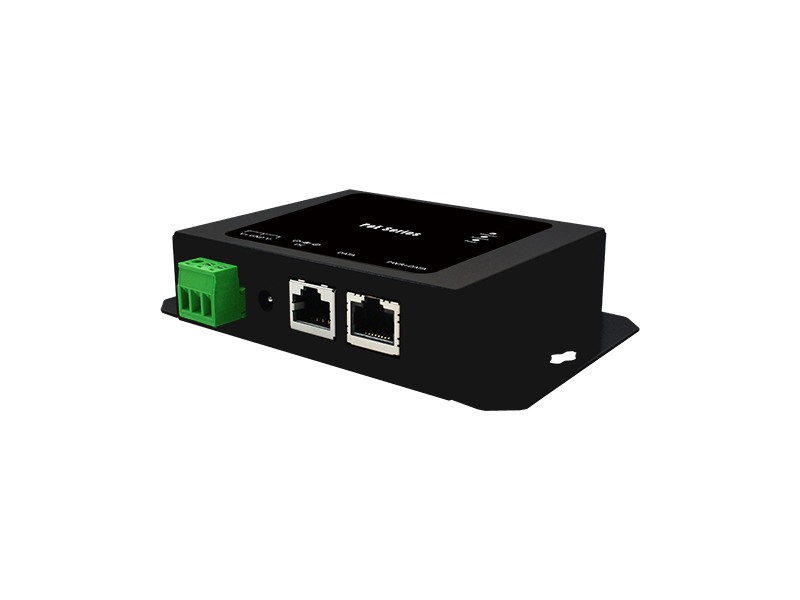

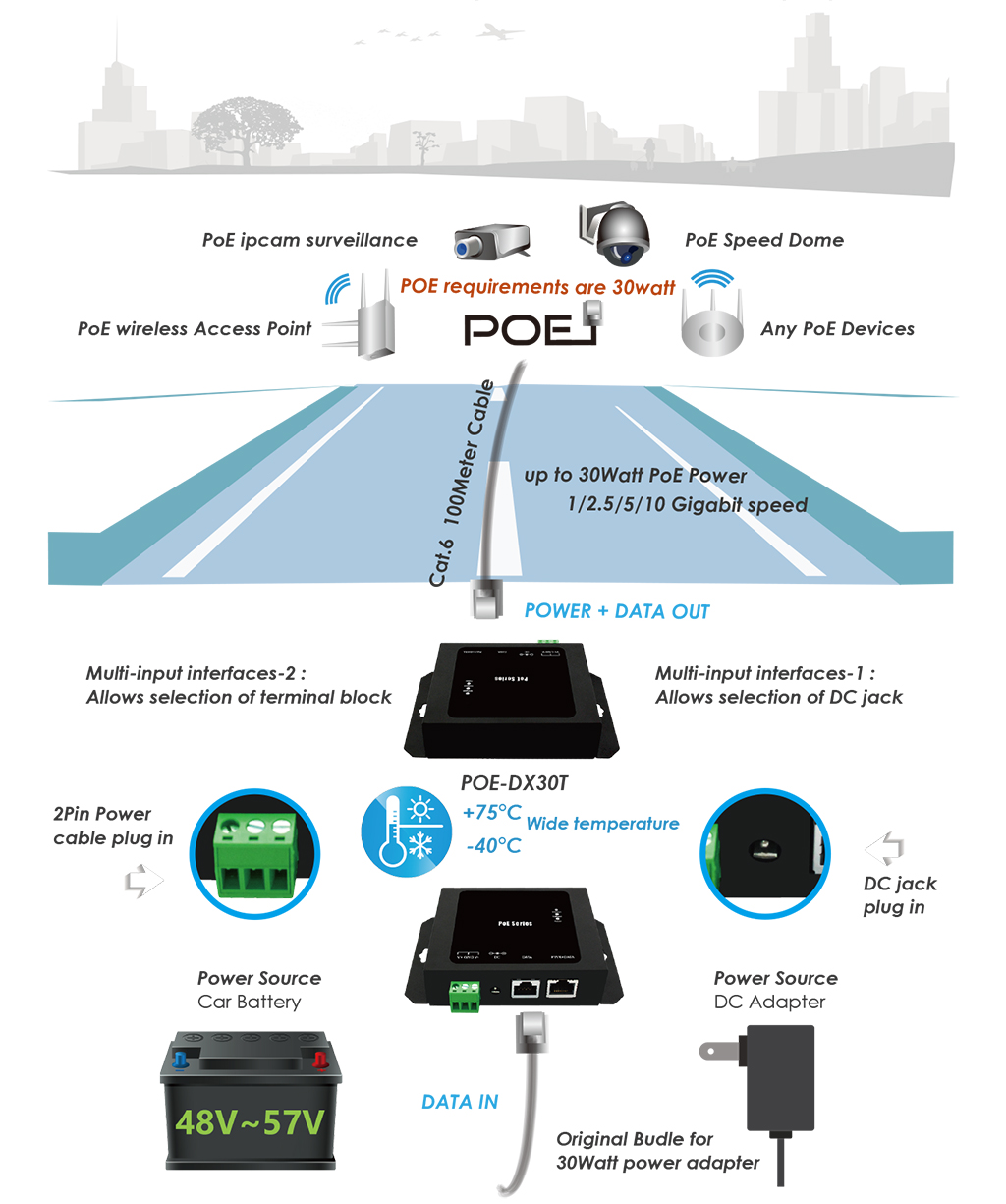

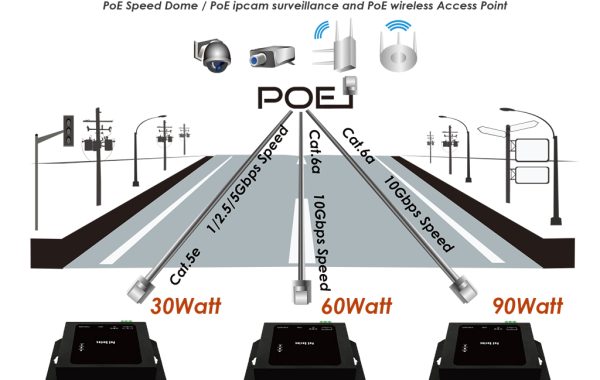

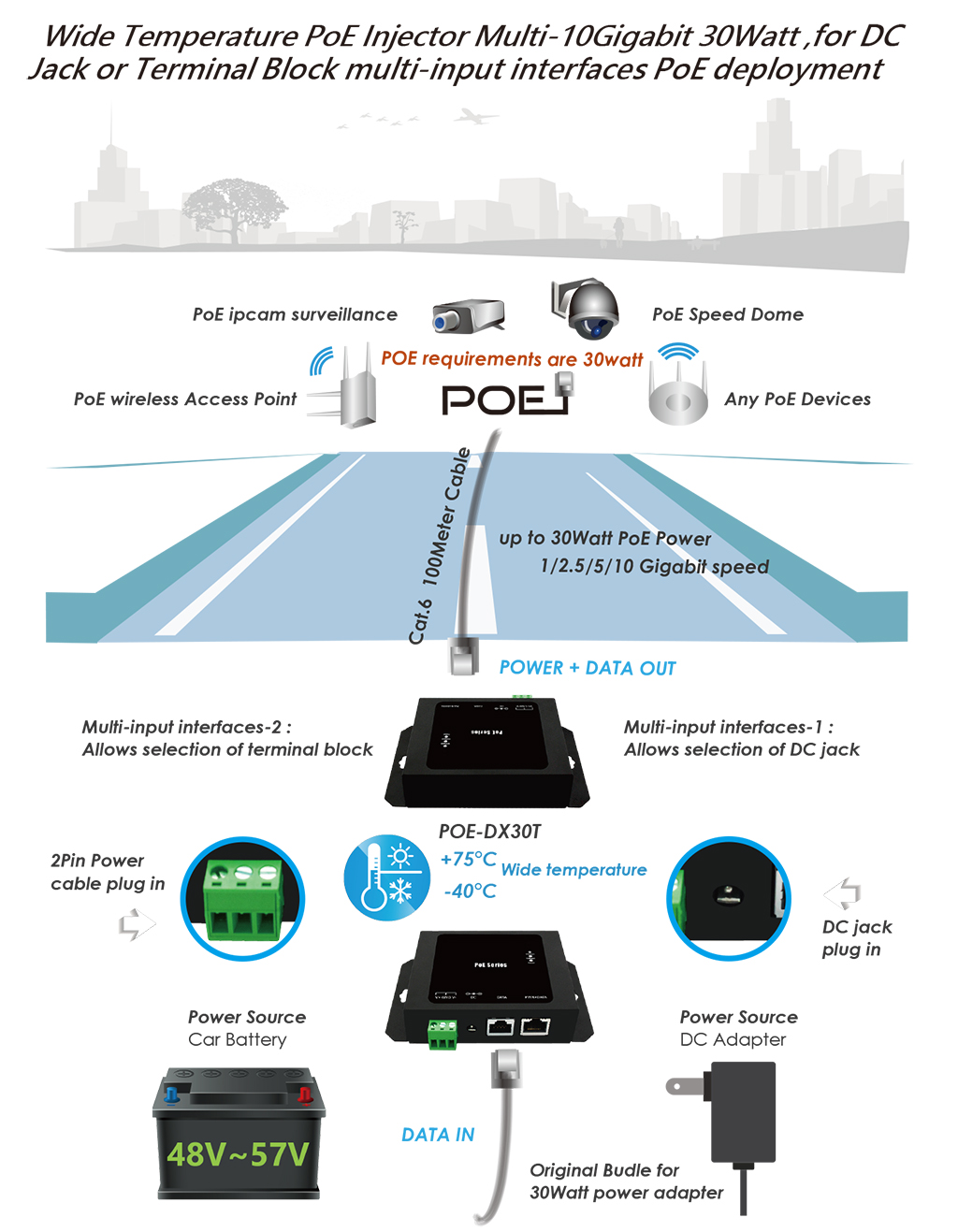

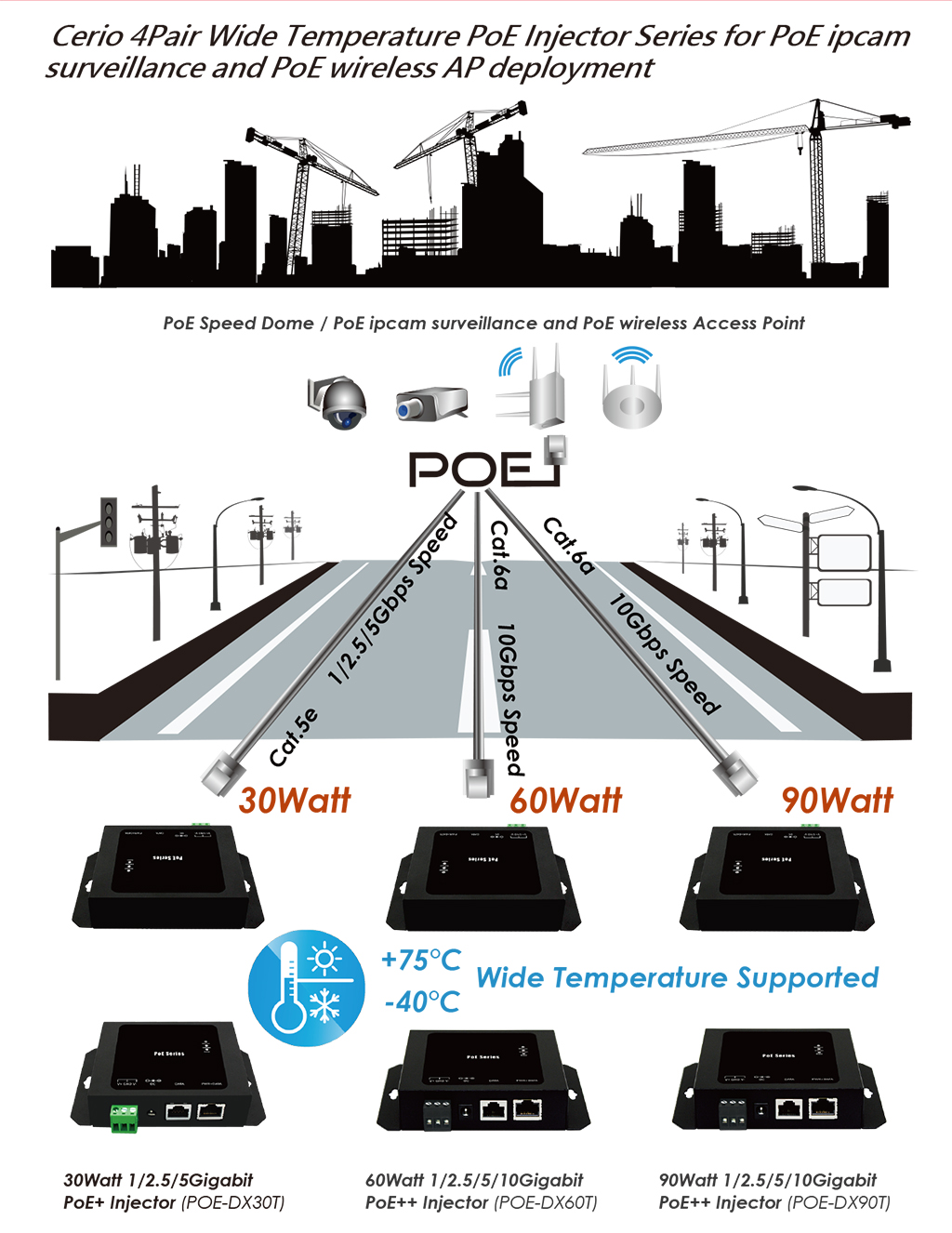

POE vs. Deployment Applications
Higlight Features
• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3an 10GBASE-T, IEEE 802.3af PoE and IEEE 802.3at PoE+ standards.
• Supports 5-Speed (100M/1G/2.5G/5G/10G) Ethernet connection ability.
• Auto detect PD power supply is powered by End-span (Type-A) or Mid-span (Type-B) power pin, and LED indicators shows power pin type.
• Supports IEEE 802.3af/at POE standards and PoE max Power up to 30Watt (IEEE 802.3at) bundle with 52~56V power supply.
• Supports PSE/POE Power Over Ethernet functionality, enabling simultaneous data and power transmission while maintaining a 10Gbps connection speed. CAT 6a or higher cabling is recommended, with a maximum power transmission distance of up to 100 meters (328 feet).
• Provide Screw Terminal Block and DC In both Power System. User can select either one to supply power.
• Supports -40° ~ 75° C wide temperature design which can withstand various high and low temperature environmental applications.
• Provides a durable and reliable metal housing design.
• Over Current Protection & Short-circuit Protection.
• Plug-and-Play, requires no configuration.
• Supports desktop, wall mounting installation
Functionality
CERIO POE-DX30T is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. It greatly simplifies the wiring and deployment process, and brings a great deal of convenience benefits to office and industrial environments. Moreover, it supports End-span (Type-A) or Mid-span (Type-B) power pin designed, no matter the PD devices is designed Type-A or Type-B all can supply power automatically. The POE-DX30T With Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. It supports -40° ~ 75° C wide range temperature design provides a comprehensive and cost-effective solution for industrial environments.
Durable Metal Housing and Wide Temperature Design
CERIO POE-DX30T provides an industrial durable and high-reliability metal case design and supports a wide range temperature design of -40° ~ 75° C. It supports wall mounting installation, which fully meets the application requirements in various environments. The wide temperature design allows the equipment to operate stably in extremely low and extremely high temperatures, making it the best helper for enterprises.
Long Distance Application
The CERIO Wide Temperature PoE+ Injector delivers both data and power, maintaining a 10Gbps connection speed over distances of up to 100 meters (328 feet) when using CAT 6a or higher cabling.
ESD Protection
The POE-DX30T supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
Easy installation
Plug-and-Play, requires no configuration.
Product Application

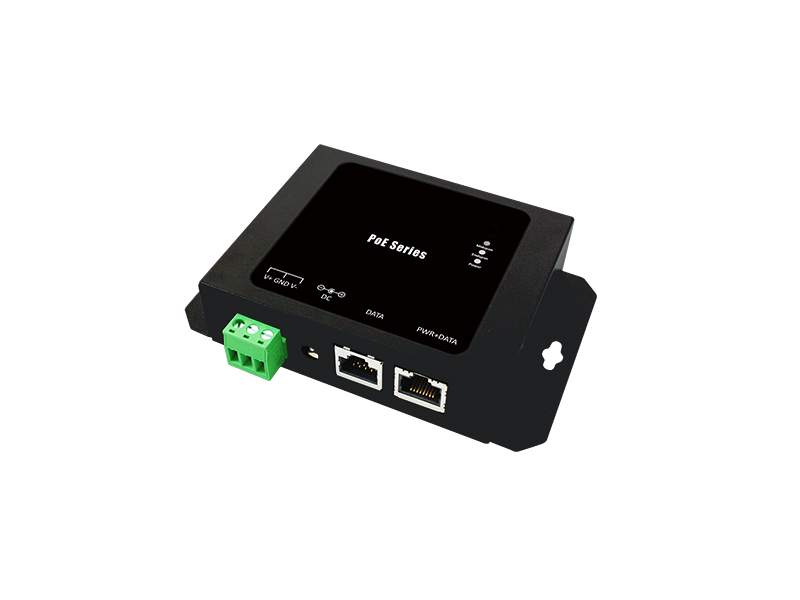

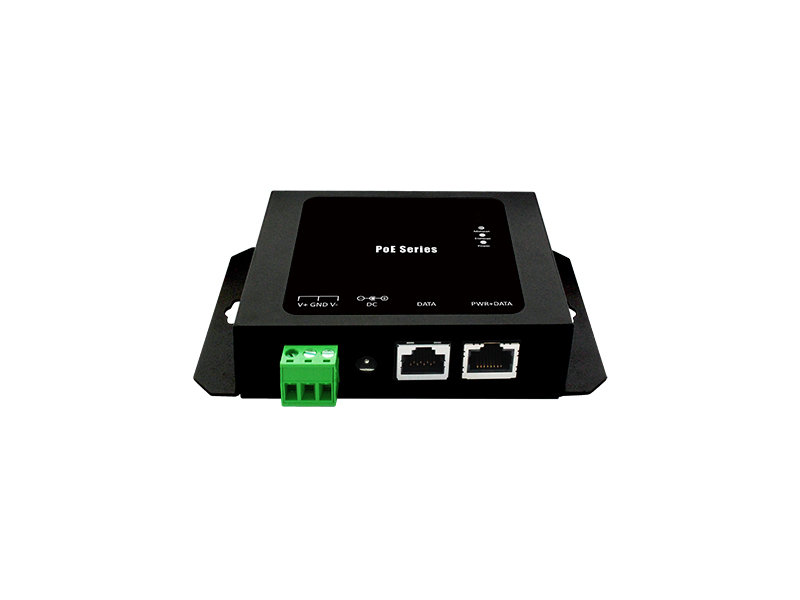

Hardware Overview
| Standards & Hardware Specifications | |
|
Standard |
IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3bz 2.5G/5G BASE-T | |
| IEEE 802.3an 10GBASE-T | |
| IEEE 802.3af Type1 Power over Ethernet (PoE) | |
| IEEE 802.3at Type2 Power over Ethernet (PoE+) |
|
| Network Media | 10BASE –T: UTP Cat. 3 or up |
| 100BASE-TX : UTP Cat. 5 or up | |
| 1000BASE-T: UTP Cat. 5 or up | |
| 2.5G/5G BASE-T : UTP Cat.5e or up | |
| 10GBASE-T : UTP Cat.6a or up | |
| Data Transfer Rate | 10M/100M/1G/2.5G/5G/10G (Half-duplex), |
| 20M/200M/2G/5G/10G/20G (Full-duplex) | |
| PoE Type | Active POE |
| Data PIN | PIN 1/2,3/6 & 4/5,7/8 |
| Power PIN | End-span (Type-A): PIN 1/2,3/6 |
| Mid-span (Type-B): PIN 4/5,7/8 |
|
| Ethernet Connector | RJ-45 x1 : Data |
| RJ-45 x1 : Power + Data | |
| Power Interface | Output: RJ45 IEEE 802.3af/at Active PoE Out |
| Multi Input: DC In or Screw Terminal Block In (STB In) |
|
| ESD Protection | Supports ESD (Electro Static Discharge) Over Voltage protection and Short Circuit Protection |
| Environmental & Mechanical Characteristics | |
| Max Power Output | 30Watt |
| Power Requirement | 52~56V 30Watt External Power Adapter |
| Input Voltage | 48 ~ 57Volt |
| LED | System: Power (Green) x1 PoE: End-span (Green) , Mid-span (Green ) x2 |
| Operating Temperature | -40° to 75° C |
| Storage Temperature | -40° to 85° C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x H x D ) | 130 x 82 x 27mm |
| Weight ( g ) | 235g |
| Form Factor | Desktop/Wall mounting installation |
| Case of material | Metal |
| Production Location | TW |
| Certifications | FCC ,CE, RoHs compatible |
| Package Contents | |
| POE-DX30T Main Unit | x1 |
| 30Watt Power Adapter | x1 |
| Warranty Card | x1 |
