WiFi6 802.11ax AX3000 Dual-Radio
High Power Outdoor PoE Bridge/AP
CERIO’s Outdoor PoE Bridge/AP using the new generation of WiFi6 (802.11ax) dual-core 1Ghz high-computing processing chip with the latest MU-MIMO and OFDMA technology provides higher efficiency and transmission speed. It’s a WiFi6 11ax 2.4/5GHz dual-band wireless AP and supports a maximum transmission rate of up to 2400Mbps on 5GHz frequency and a maximum transmission rate of up to 574Mbps on 2.4GHz frequency. It’s an AX3000 model that can simultaneously provide wireless signals in the 2.4GHz and 5GHz frequency bands.
- Supports 2.4GHz/5GHz dual-band and the maximum transmission rates are 574/2400 Mbps respectively while operating up to 2974Mbps.
- Aluminum casing design help to achieve optimal heat dissipation in hot outdoor environments, ensuring the device maintains the best transmission performance at all times.
- Supports the latest 11ax Low-Density Parity-Check (LDPC) function, which can efficiently perform error correction and supports Space-Time Block Coding (STBC), Transmit Beamforming (TxBF), which can enhance signal coverage and improve wireless transmission performance.
- Supports one Gigabit and one 2.5Gigabit ETH port, both support PoE power input.
- CenOS 5.0 Control Access Point Mode supports centralized management of up to 32 APs.
- Supports IP67 weather-proof durable design and Pressure vent.
- Supports 6KV lightning protection and hardware reset button to factory default.
- Supports Adjustable Wall and Pole Mounting Installation.

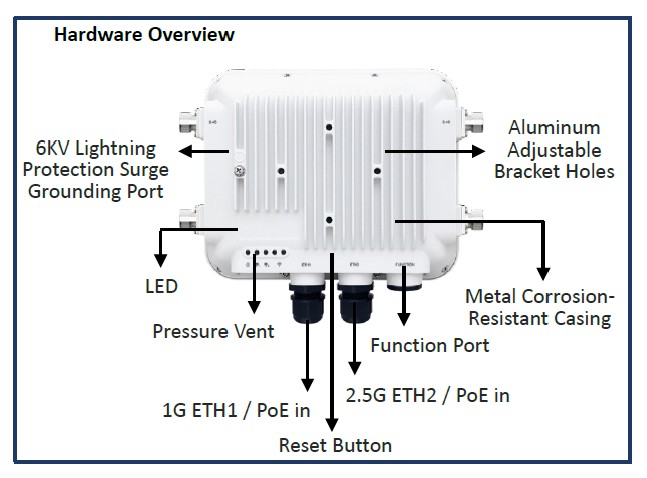

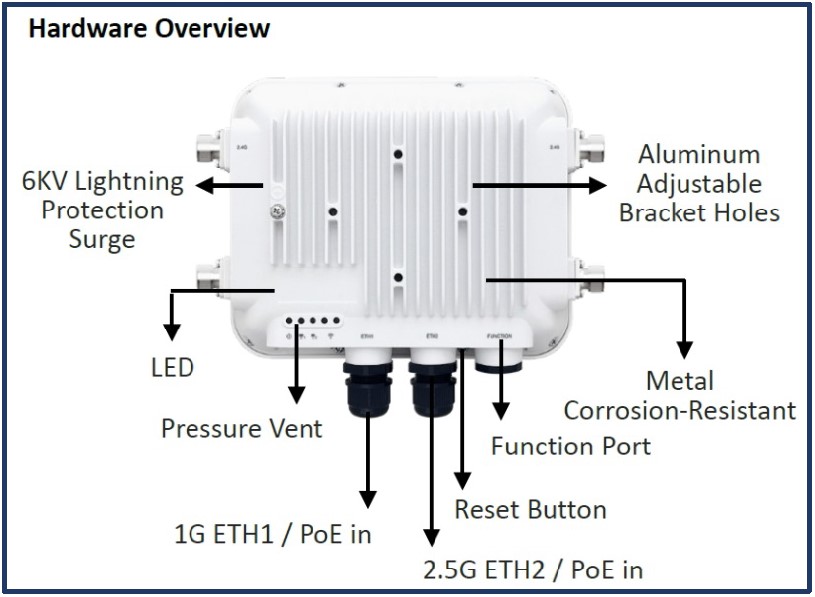

Hardware Overview
Mobile Client Bridging/WISP Roaming Applications

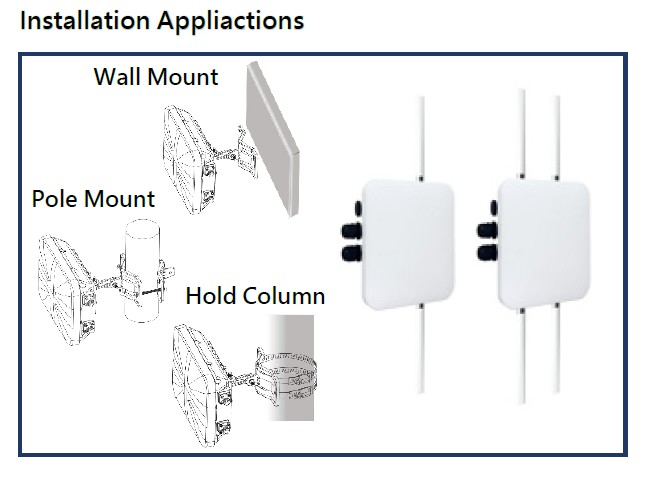

Installation Appliactions
