POE-PD04S-12V

IEEE 802.3at Class4 to DC12V
Protective Isolation PoE Splitter

The CERIO POE-PD04S-12V is designed with hardware components that provide power polarity isolation to ensure the proper functioning of the terminal PD-powered device, effectively preventing unstable disconnections caused by POE/PSE connection polarity loop identification. This enhances the reliability and stability of the application device.It provides DC 12V needs for any network or non-network equipment through DC to DC cable which is included with package. Using the Cerio PoE Splitter, you can take advantage of Power Over Ethernet and place Multi Giga / Giga / Fast Ethernet-enabled products, such as Wireless Access Points, Network Cameras, and VoIP Phone where power outlets are not readily available.

• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2500 /5000 BASE-T, IEEE 802.3at/af PoE standards.
• Supports Multi Gigabit (1/2.5/5Gbps) Ethernet connection ability.
• Use to connect non-PoE 802.3at/af devices to PoE injector or PoE switch.
• The maximum power output up to 27Watts.
• Supports Ethernet PoE to separate to only DC/Power and only Ethernet/Data.
• Split the PoE signal into separate data and power, the total distance up to 100M.
• Bundle accessories for inside diameter 2.1 mm (PHY) to 2.1 (PHY) mm DC cable.

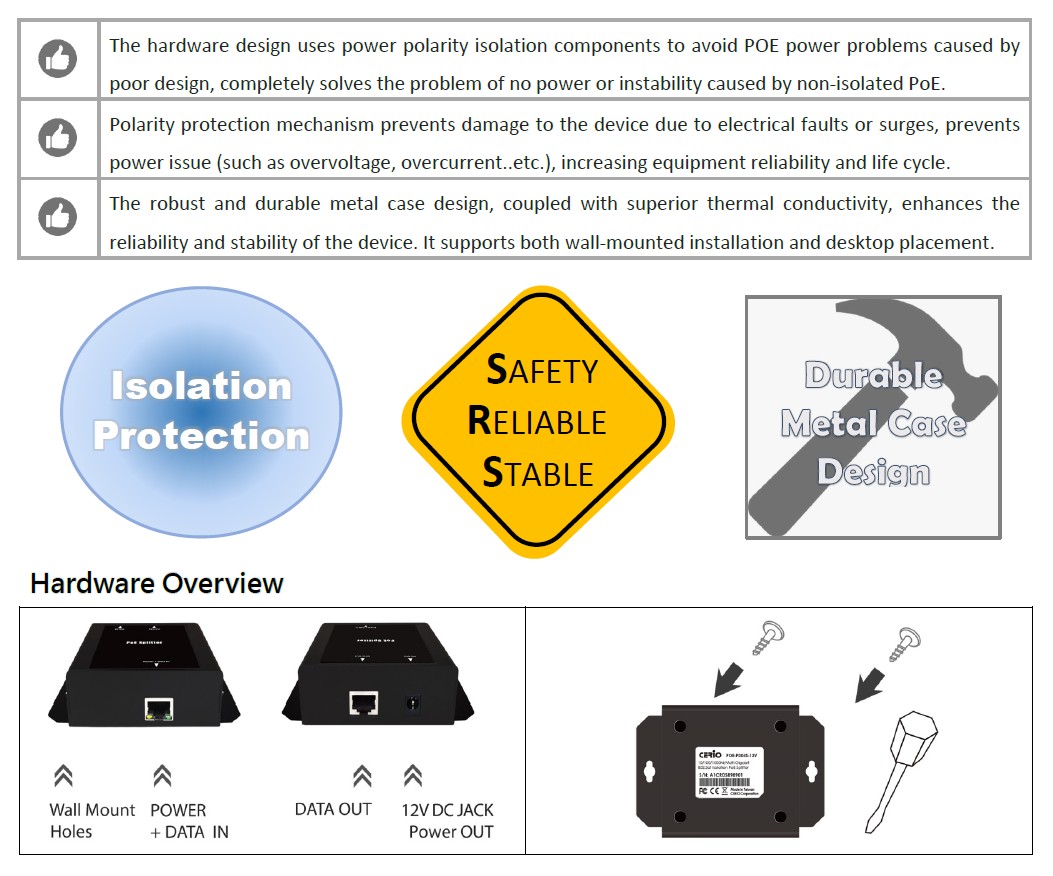

• Durable metal case design supports desktop and wall mounting installation.

Product Application

It provides PoE 44~57V Ethernet power + data input to separate to only DC/Power and only Ethernet/Data output and supports DC output voltage 12V with isolation protection. The hardware design with power polarity isolation components ensures for the proper operation of the receiving terminal PD device. This effectively prevents unstable disconnections caused by POE/PSE connection polarity loop identification.
