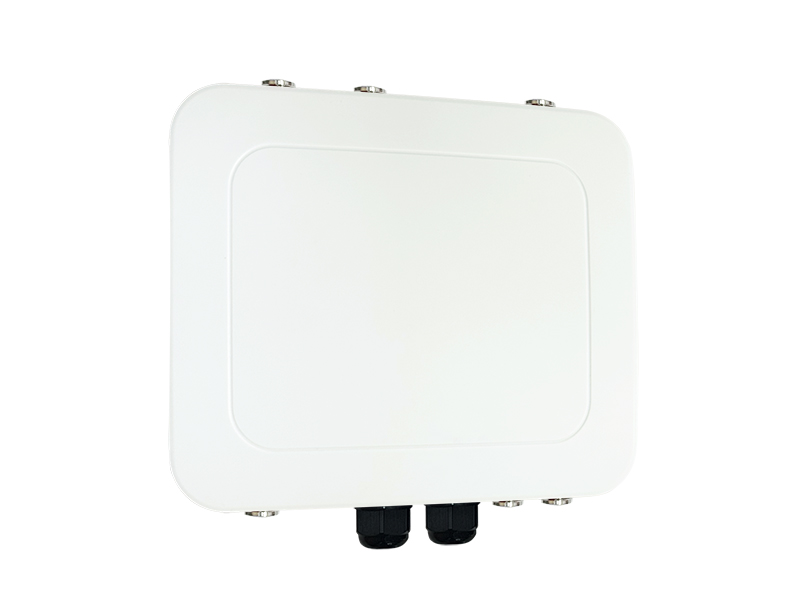

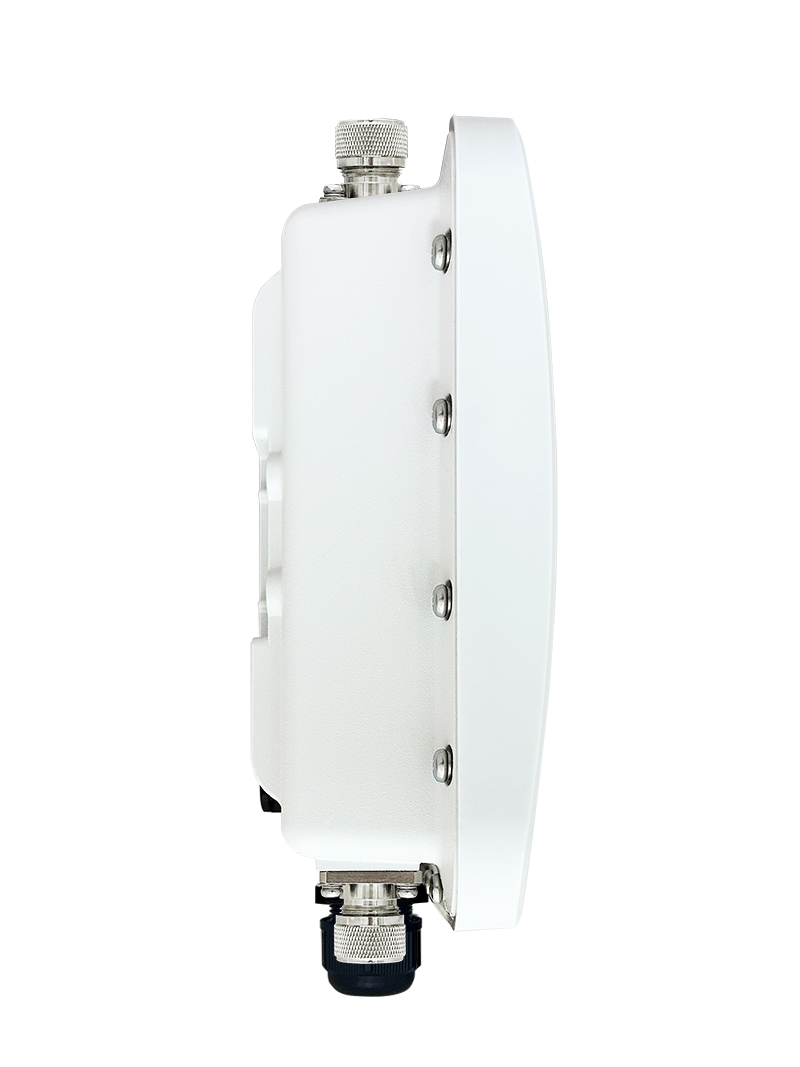

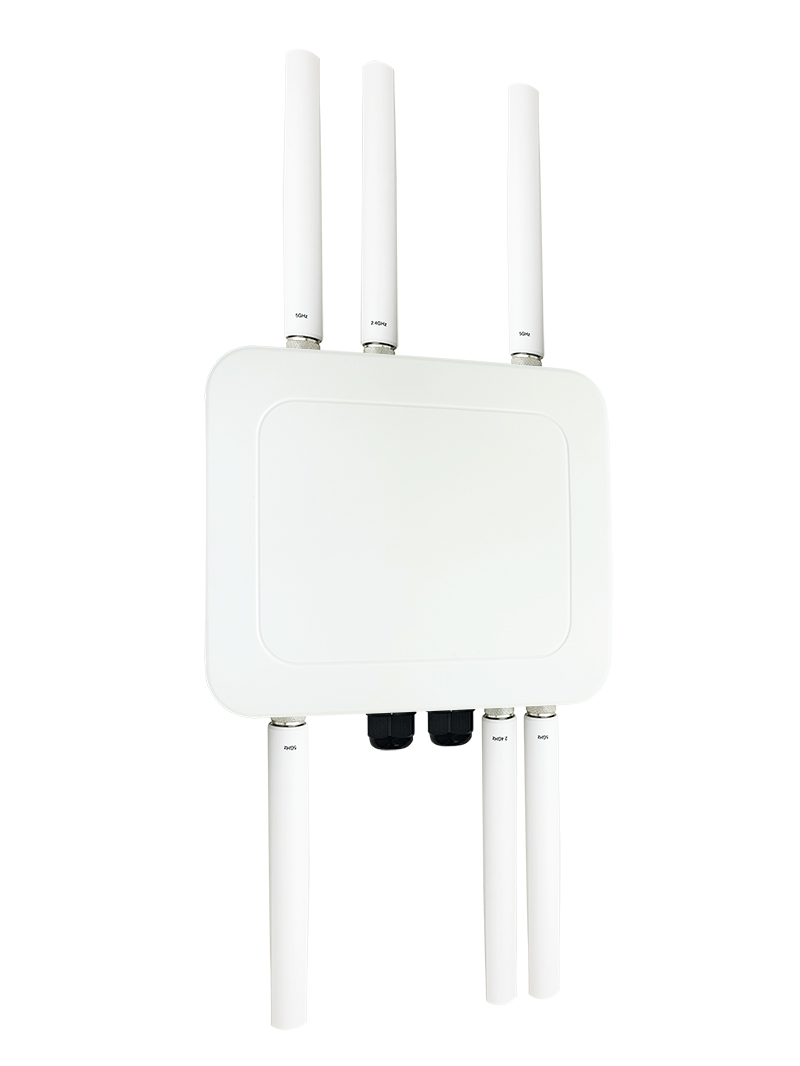

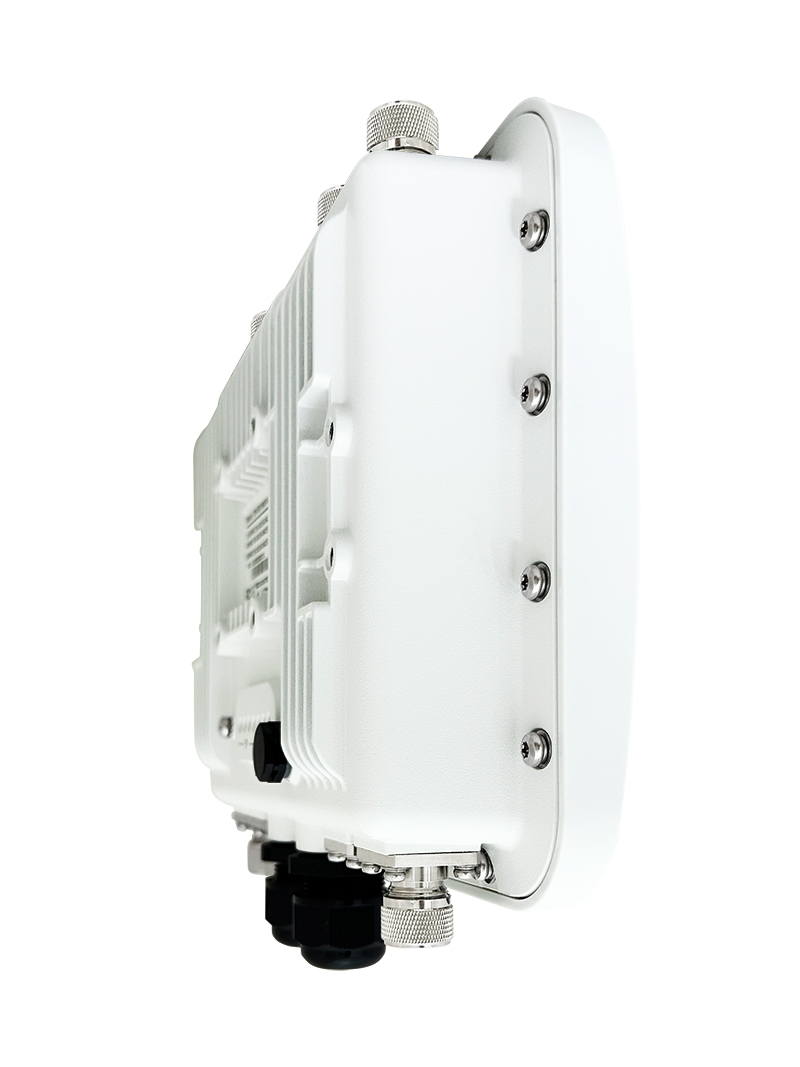

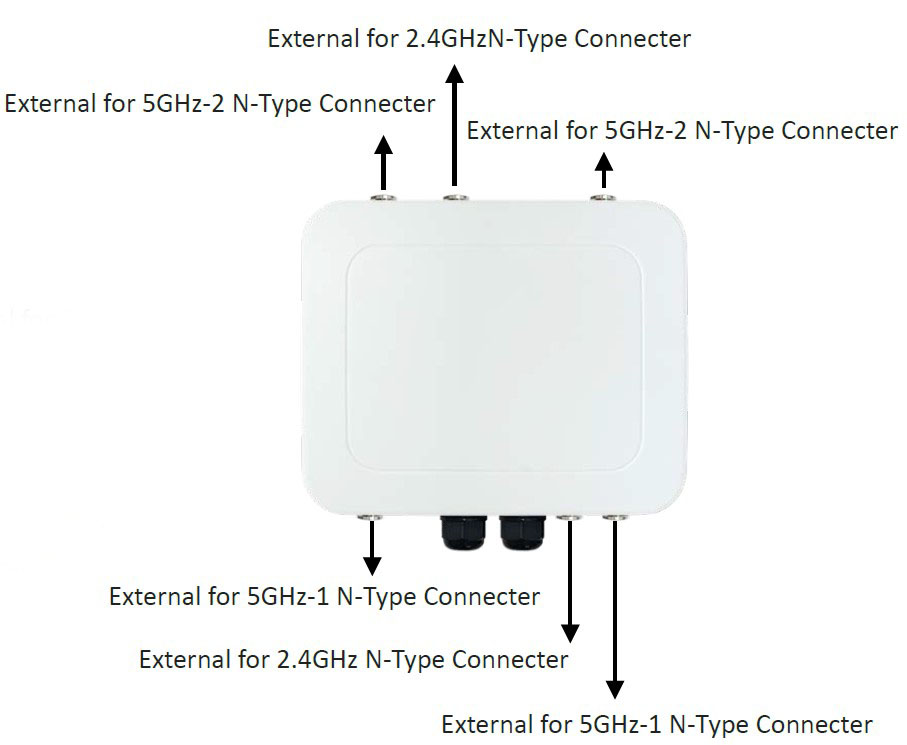

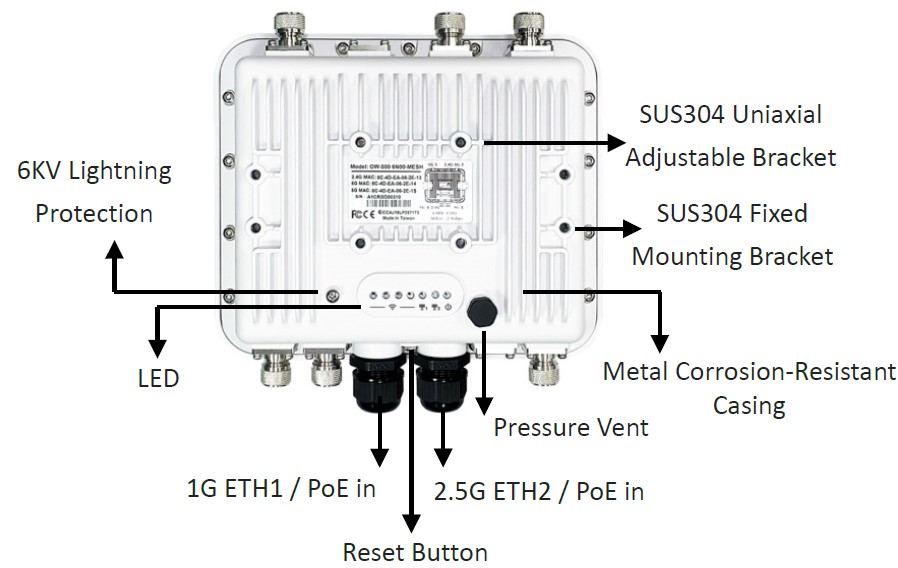

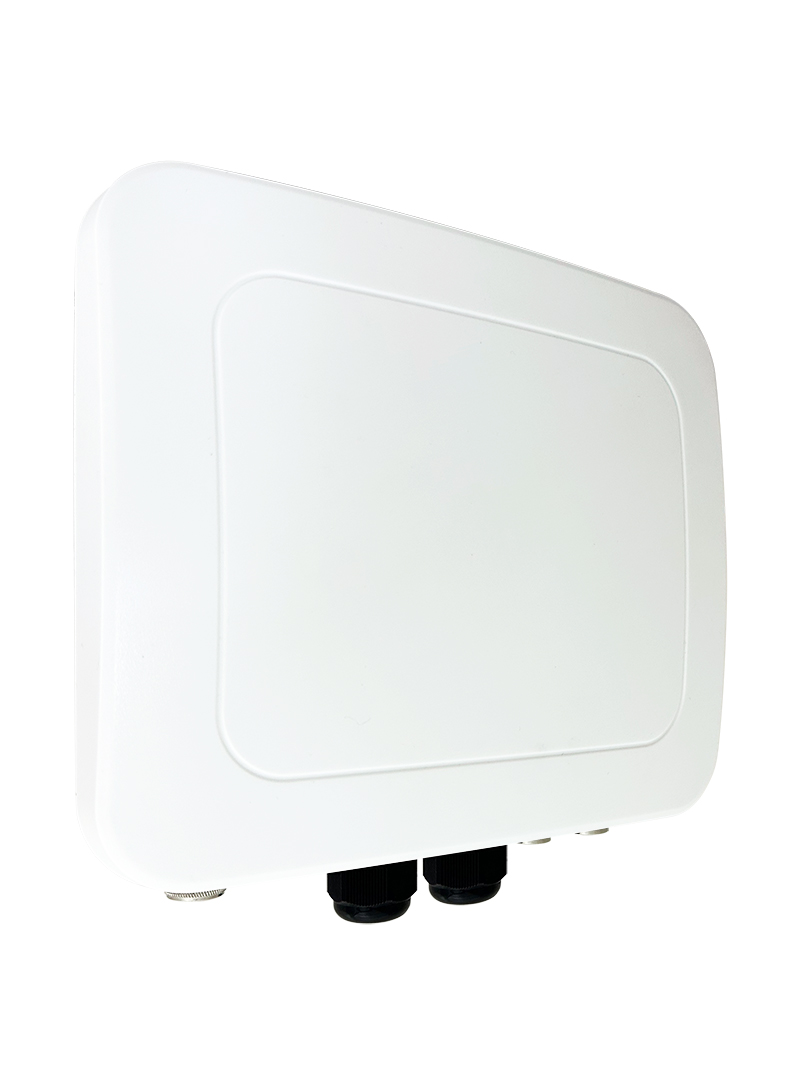

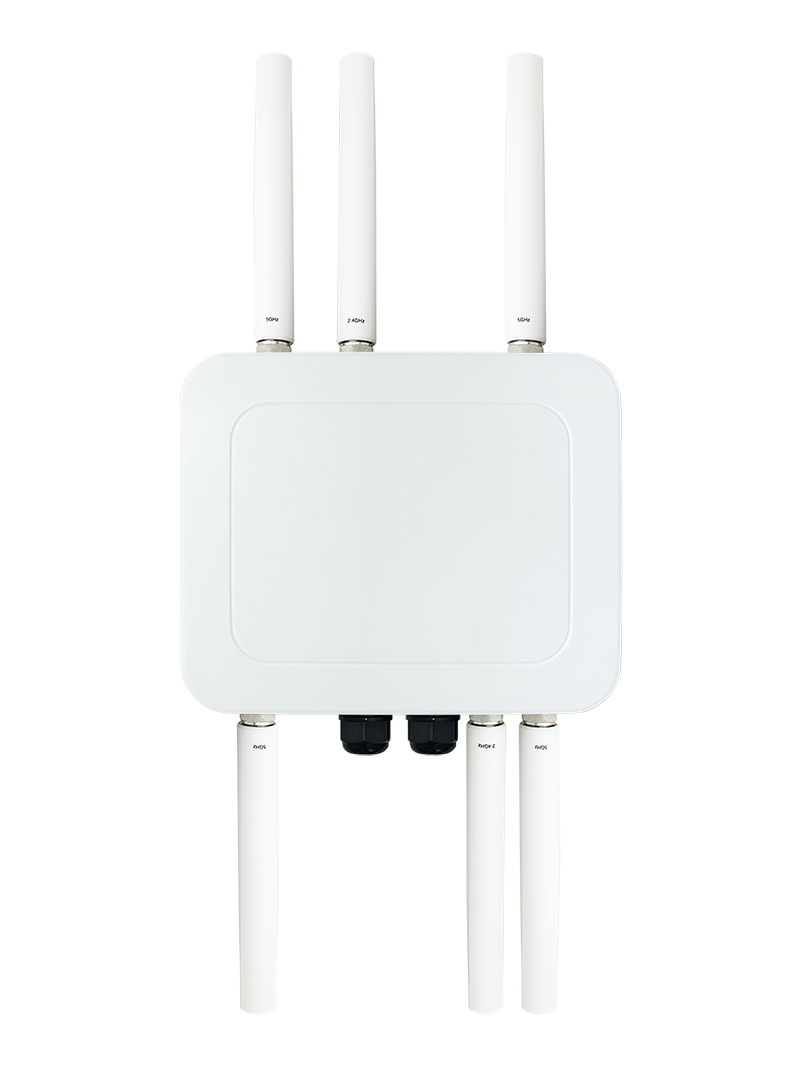

OW-500 6N00-MESH provides IP68 weather-proof durable design. Supports two 2.4GHz and four 5GHz external N-Type antenna connectors. The N-Type connectors can be freely paired with Omni antennas to meet the needs of comprehensive wireless backbone network deployment applications. The high performance and weather-resistant protection can withstand harsh environmental conditions for wireless network deployment, providing safely and reliability when deploying wireless equipment in outdoor environments. In addition to supporting MAN-MESH backbone link automatic optimization deployment applications, it can also serve as an AP Station for connecting wired or wireless terminal devices. This provides a highly stable and flexible mesh network with full coverage.

Auto-Configuring Mesh Network

The Layer3 Mesh Backbone Auto Link Optimization which provides user friendly and simpler setting configuration. It can extend the wireless network to areas that are difficult or expensive to connect via Ethernet cabling. CERIO MAN-MESH provides Intelligent WiFi Mesh technology, Meshed APs self-configure and establish a high-performance, robust, and resilient network automatically, without any need for manual intervention or provisioning. Provide a full coverage wireless network without dead ends, no matter where you are, you can automatically and seamlessly connect to the optimal wireless signal at any time.

Self-Healing Networking with Per-Flow Optimization

This technology can prevent network paralysis from occurring. Each node in the WiFi Mesh Network is connected and communicates with each other. When a node in a mesh network environment is failure through a wired or wireless interface, Mesh will dynamically reconfigure and find the best link and automatically detect and forward traffic to other node link AP devices with Internet network connectivity. To ensure that the connection in the network can continue normally.

Multi-Channel Routing Protocols

Provides Layer3 Intelligent wireless mechanism and advanced proprietary routing protocols and algorithms continuously evaluate link performance by measuring a variety of factors, including signal strength, throughput, link cost, interference, and frame reception rates. Wireless APs take measurements individually and work together with neighboring APs to optimize overall capacity and client throughput. APs route traffic over different channels as needed to minimize per-hop performance degradation and maximize client performance.

Support MAN-MESH Multi-Channel WAN Backup

When using LAN wired connecting multiple MAN-Mesh APs of WAN for configuration, Mesh will dynamically reconfigure and find the best link through the WAN / Internet route, automatically select one of the best available WAN to access the uplink connection. Therefore, a backup WAN architecture is generated for multiple paths of multiple WANs in the environment. When any WAN in the environment is interrupted, it can be backed up to ensure the Internet connection.

MAN MESH Core Software Mode

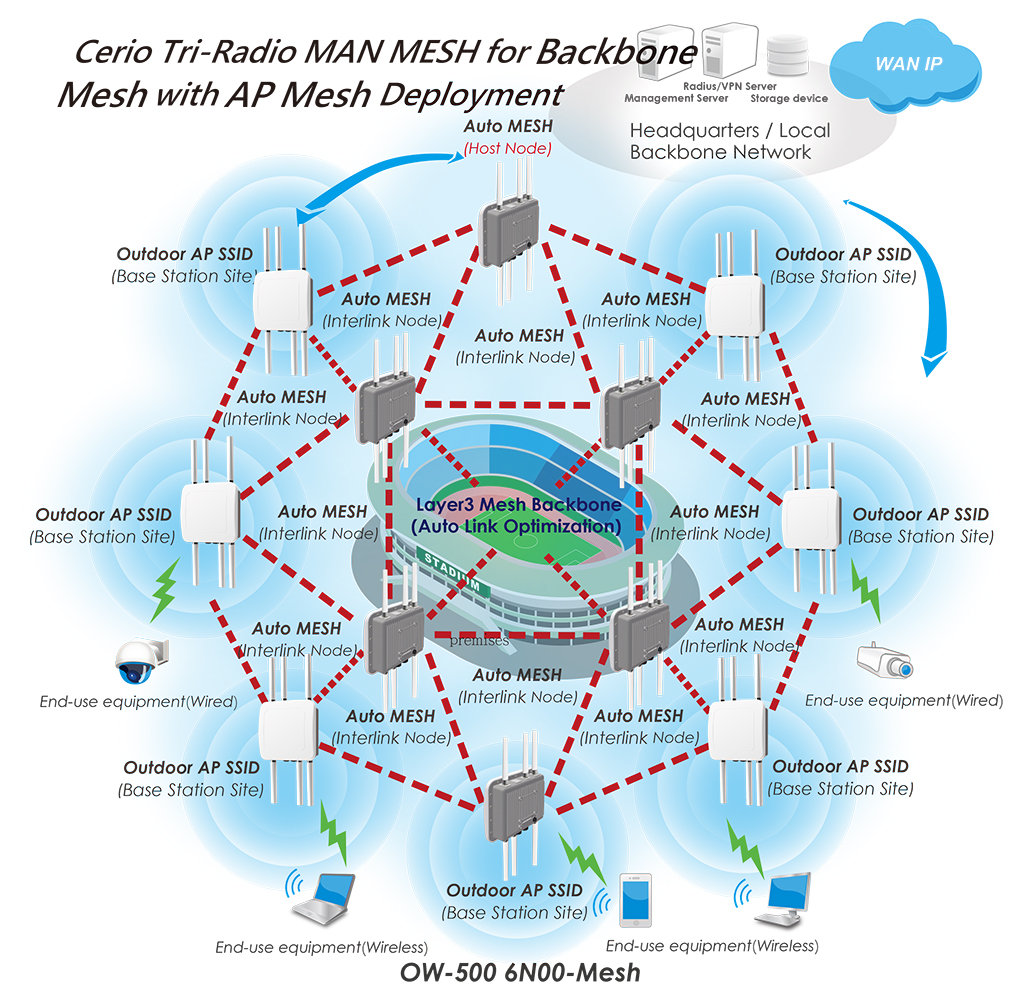

The CERIO MAN MESH Intelligent Core Software Mode provides Layer3 Mesh Backbone Auto Link Optimization, it’s using simpler and smartest way to improve the connection quality of the wireless network which let a large number of users in the vast space can enjoy a stable quality wireless network. In addition, each node in the mesh wireless network system can be an independent, providing fast connection and a more stable wireless network. With Intelligent WiFi Mesh Topology, the wireless node will communicate with each other and can be set automatically, which greatly reduces the complicate setting procedure. The MAN-MESH Layer3 Mesh Backbone Auto Link Optimization also provides, when one of the wireless nodes fails or disconnected, the other wireless node in the mesh network can communicate with each other and recover the network connection automatically. Which is an excellent solution for infrastructure, surveillance, IOT and in-train backhaul. And for emergencies, rapidly deployable and robust communications between each member when emergencies are involved in difficult operations inside buildings, towers, hard-hit disaster areas or surrounded in forest fires.

MAN-MESH Highlight Features

•The Mesh Network no geographical limitations : Provides a mesh environment including stationary surveillance or node terminal device access by wired, mobile user wireless access and point-to-point connection to AP stations in remote areas to extend mesh links.
• In addition, it supports Mesh AP backbone interconnection capabilities, and it can be multi-function wireless AP station for wireless clients access.
• The wireless AP supports 2.4GHz Radio0, 5GHz Radio1 and 5GHz Radio2, each radio support 16 groups of Multiple-VLAN (ESSID), total supports up to 48groups of Multiple-VLAN (ESSID).
• Support virtual network tagging function (VLAN Tag), each group can use different VLAN tag.
• Support multi-node smart link capability, automatic detection of each node, network optimization and network self-healing function, always ensure that the network connection will not be interrupted at any place. It can improve work efficiency and deploy network connection quickly, very convenience and saving time.
• Real-Time Environment Monitoring and Routing : Constantly scan the air to monitor mesh link. If a better link is available, it will automatically re-route the mesh path to optimum mesh network quality.
• Supports routing and across-network interface interworking IP address identification. Through the IPv4 Bridge function, the different network access interfaces of each MAN-Mesh AP under the routing layer include wired LAN, wireless Radio and other IP addresses of each different interface can access each other. And support Static Peer setting. For example, LAN PC server and other devices can be fixed in a network environment with multi routing links and can be reliably accessed.
• DHCP server and DHCP Relay (DHCPR) relay service in the same or different network segment, allows DHCP data to be successfully exchanged between the DHCP client and the DHCP server.
• MAN Mesh network interconnection security: support AES 128,256bit encryption function, provide input 8 ~ 32 characters, Each MAN-Mesh AP connects through secure encrypted transmission each other.
• NAT network IP address translation function designated as a WAN side by wire or wireless interface, When Mesh network is connecting, the administrator can enable this NAT application function for a specific MAN-Mesh node host in the environment to construct a more diverse and flexible mesh network environment.
• Supports intelligent routing and multi-channel selection of Auto Mesh Link function, Mesh connection between multiple channels based on signal quality, link optimization, hop-by-hop performance, transmission efficiency, etc.
• Mesh AP supports multiple Radio, each Radio supports independent Mesh AP interface settings, and supports IPv4 and IPv6 MAN-Mesh IP address format applications.
• Support host multi-hop setting, corresponding setting for available channels, through the “host node” can be found in the Mesh environment can be used in multiple fixed channels in advance, in order to create and assist other “interconnected nodes connection.
• Support MAN-Mesh Force Link priority interconnection setting, according to the MAC address designation method of MAN-Mesh equipment, set priority to specify link host MAN-Mesh AP, to make the construction of Mesh network environment more flexible and practical.
• Provides a wireless connection distance setting by quickly function, for the actual required distance to solve the complicated wireless parameter settings required for outdoor remote wireless connection.
• MAN-MESH mode supports link chart and status display functions, such as WI-FI multi-angle positioning relative IP address connection mesh node display, MAN-Mesh neighbor and routes / redistributed routes information, and each wireless Radio connecting corresponding MAC address information, connection rate and RSSI quality etc, to facilitate the administrator to grasp and understand the relevant information between each of the Mesh construction environment and each next-note Mesh.
• Through the CAP management mode, you can quickly add each MAN-Mesh host in the environment that needs to be monitored and managed. Through the device list and construction, you can quickly grasp the basic information such as the connection time and firmware version.

Software Features

MAN Mesh Wireless Feature

• Supports Location Tracking function, for the wireless client location information to the server for analysis.
• Supports auto channel scanning function, automatic scanning the most undisturbed and suitable wireless channel in the field environment
• Supports IEEE802.11f IAPP and IEEE802.11r and IEEE802.11k Fast Roaming.
• Supports wireless IGMP Snooping v1/v2/v3 function, routing multi-cast stream to more efficiently manage media traffic.
• Provide RF on/off and scheduling function for easy control RF radio on/off time table.
• Supports WEP, WPA/WPA2 /WPA3 Personal, WPA/WPA2/WPA3 Enterprise and 802.1x connection encryption methods and can register a RADIUS authentication server.
• Wireless access control list (ACL) by MAC Address.
• Support IEEE802.11e WMM QoS.

Network / Management

•Supports IEEE 802.1Q VLAN Tag, total up to 16 of multiple-VLANs supported, each SSID supports 802.1q VLAN Tag standards, supporting up to 4096 group VLAN Tag capability.
• Web-Based supports HTTP / HTTPS and advanced CLI via Telnet and SSH interface management functions.
• Support SNMP v1/v2c/v3, MIB II. Also supports SNMP Traps to a list of IP addresses.
• Supports remote login to management UI, firmware update, factory default reset, configuration file backup and restore. Detect connection signal, transmission rate, encryption and other information display.
• Support Ping Watchdog function, which automatically monitoring device operations and reboot of the device.
• Supports Auto reboot setting function, can schedule Auto Reboot by Hour/Daily/Weekly setting.
• Real-Time Online Users Traffic Statistic Reporting and users connection status，and support Syslog and Event log.
• Provides Traffic Monitor and Graphical GUI Status Interface for Network and Radio Overview.
