OW-500 6N00
eXtreme High Power WiFi6 Tri-Radio AX4200 Outdoor PoE Bridge/AP
CERIO’s OW-500 6N00 is a WiFi6 Outdoor PoE Bridge/AP using the new generation of WiFi6 (802.11ax) Quad-core 1.8Ghz high-computing processing chip with the latest MU-MIMO and OFDMA technology and provides higher efficiency and transmission speed. It’s a WiFi6 11ax 2.4/5/5GHz Tri-Radio wireless AP and supports a maximum transmission rate of up to 1200/2400Mbps on the 5GHz-1/5GHz-2 frequency bands and a maximum transmission rate of up to 574Mbps on the 2.4GHz frequency band. This is an AX4200 model that can simultaneously provide wireless signals in the 2.4GHz/5GHz-1/5GHz-2 frequency bands.
CenOS 5.0 Centralized platform management
Intelligent control and automatic configuration and setting of multiple wireless base stations in the core group
Support AP with WDS mode / WDS mode / Client Bridge + Universal Repeater mode and WISP/CPE Repeater +AP mode
The OW-500 6N00 hardware using a wireless amplifier chip, which enhances the signal distance capability and stability. It provides IP68 weather-proof durable design. Supports waterproof network connectors. Two are assigned to the 2.4GHz band and four are assigned to the 5GHz-1 and 5GHz-2 bands. It supports dual-ports IEEE 802.3at (PoE) function, allowing both power and data to be provided through CAT5e cabling. It can withstand harsh environmental wireless network deployment, making it the perfect product for any outdoor wireless application.
The CenOS 5.0 software core provides innovative and breakthrough advanced features for mobile client bridging/WISP roaming applications. It allows seamless wireless connection of fixed bridge and mobile stations. It provides a perfect solution for Public Transport (Railway, Bus, Subway, Gondola etc.) and Tourism Industry (Ferris Wheel, Park Train, etc.). The CAP mode centralized management for up to 64 APs. In addition to supporting point-to-point, multiple operation modes, Repeater and WISP modes. This makes it suitable for deploying and constructing applications such as transmitting video data for return and long-distance network data transmission.
Highlight Features
• 2.4GHz band supports 802.11bgn/ax 2TX/2RX with a maximum transmission rate of 574Mbps.
• Two 5GHz bands supports 802.11an/ac/ax 2TX/2RX with a maximum transmission rate of 1200Mbps (5Ghz-1) and 2400Mbps (5Ghz-2).
• Supports 500mW Output eXtreme High Power.

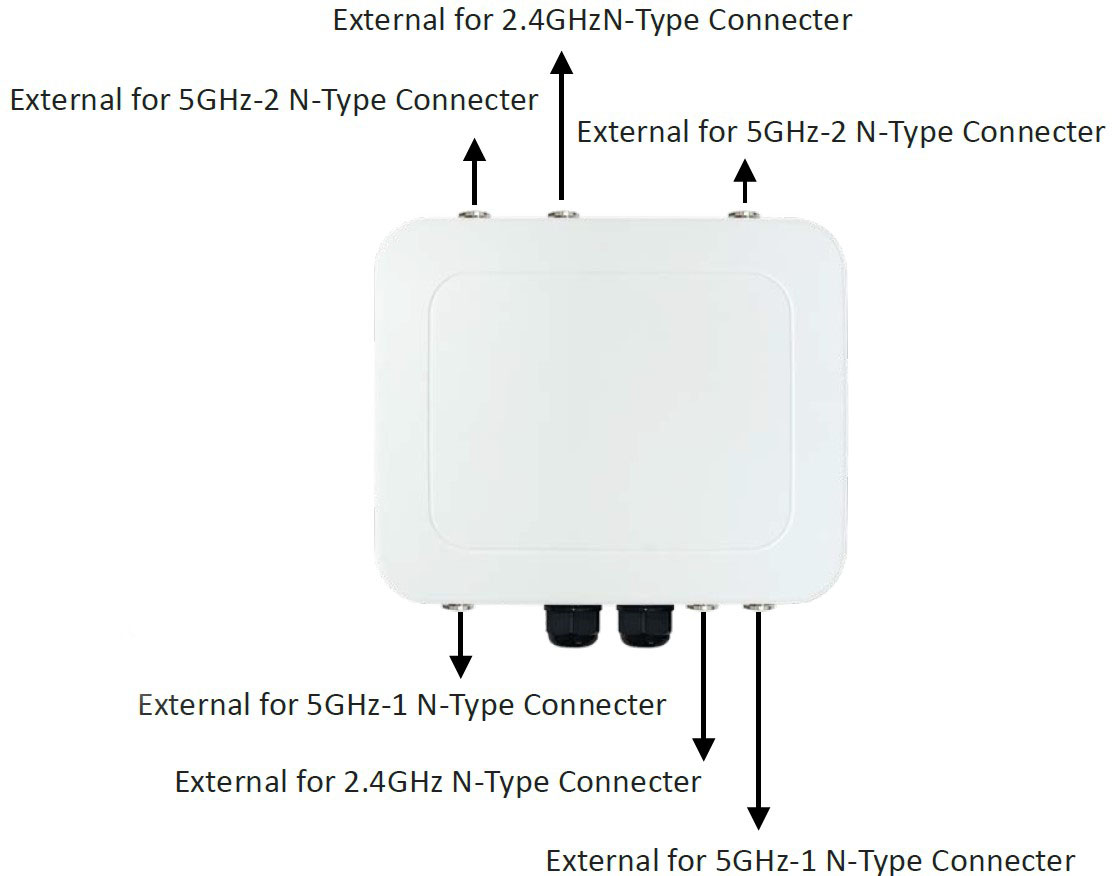

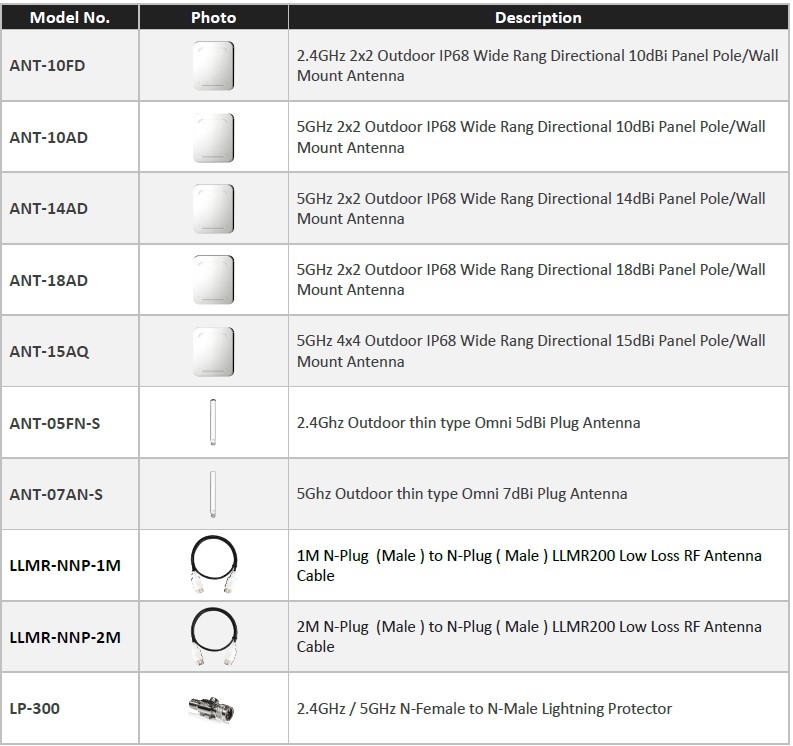

• 2 external N-Type connectors for 2×2 2.4GHz band and 4 external N-Type connectors for 2×2 5GHz bands.
• Supports the latest 11ax Low-Density Parity-Check (LDPC) function, which can efficiently perform error correction and supports Space-Time Block Coding (STBC), Transmit Beamforming (TxBF), which can enhance signal coverage and improve wireless transmission performance.
• Supports one 2.5G ETH port and one 1Gbps ETH port, both support PoE power input.
• Provide customizable login and logout Captive portal page by Web Page.
• Weather-proof Housing (IP68 Approved).
• Beaufort scale 17 wind load test certificated.
• Aluminum casing design help to achieve optimal heat dissipation in hot outdoor environments, ensuring that the device maintains the best transmission performance at all times.
• CenOS 5.0 Control Access Point Mode (CAP) supports centralized management of up to 64 AP devices.
• Operation Modes : Including Access Point Mode(AP Mode), Control Access Point Mode(CAP Mode), Client Bridge Mode, WISP Mode and Router Mode.
• With AP mode supports at total of 48 Multiple-ESSIDs per device (16 ESSID on 2.4Ghz and 16 ESSID on 5Ghz-1 and 16 ESSID on 5Ghz-2).
• With AP mode supports x8 WDS per Radio (2.4Ghz band WDS x8 and 5Ghz-1 band WDS x8 and 5Ghz-2 band WDS x8) for a total of 24 WDS Links.
Software Features
• Supports built-in 802.1x RADIUS authentication server account database for small and medium environments, removing the need to set up external server and avoiding additional costs. Also supports RADIUS Server authentication server account features to fit the needs of large-scale network environments.
• Built-in Time Policy function can set multiple times schedule apply to RF on/off and IP/MAC filter or other security function.
• Captive Portal Authentication supports by remote RADIUS server, Local account, third-party OAuth2.0, LDAP (AD), POP3, Guest and remote bulk MAC Address.
• Wireless AP group management – Automatic configuration and setting of intelligent control of AP.
• Each SSID supports 802.1q VLAN Tag standards, supporting up to 4096 group VLAN Tag capability.
• With AP mode supports MAC filtering and wireless account web authentication, and encryption methods such as WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise, 802.1x connection.
• QoS(Quality of Service) for bandwidth management and traffic prioritization and supports network.
• Users Upload/Download Bandwidth Control speed limits, and User Device (Total) bandwidth control. Administrators can regulate the limit of each network user.
• Support Band steering technology to automatically switch between frequency bands. When using dual-band network cards with 802.11ac, users can always automatically connect to 5Ghz Radio.
• Supports IEEE802.11f IAPP and IEEE802.11r and IEEE802.11k Fast Roaming.
• Support Ping Watchdog function, which automatically monitoring device operations and reboots the device before a crash can occur.
• Software Web UI supports auto reboot setting function. Software setting allows automatically reboot by Daily/Weekly/Monthly settings.
• Administrative Access : Supports Telnet and SSH.
• Provides Traffic Monitor and Graphical GUI Status Interface for Network and Radio Overview.
Hardware Features
• Supports 2.4/5/5GHz Tri-Radio and the maximum transmission rates are 574/1200/2400Mbps respectively while operating up to 4174Mbps.
• Hardware embedded high-power amplifier chip and high sensitivity receiver provide reliable performance for wireless deployment in various environmental applications.
• Supports 500mW at 2.4GHz and two 5GHz Output eXtreme High Power design.
• Support 2 external N-Type connectors for 2.4GHz band and 4 external N-Type connectors for 5GHz bands.
• Supports one 2.5G ETH port and one 1G ETH port, and both support PoE PD function. It can select the ETH speed as the POE power input according to the application of the environment.
• Supports IP68 weather-proof durable design. Its high-temperature resistance and corrosion-proof casing can withstand harsh environments.
• Beaufort scale 17 wind load test certificated.
• Comply with IEC61000-4-2 ESD (Electro Static Discharge) load and discharge lightning protection Conductive: 6KV; Air: 8KV.
• Each pin of POE port with ” Gas Discharge Tube (GDT) ” design and supports 6KV lightning protection surge grounding port.
• The waterproof design of the casing includes a port for the grounding wire and hardware reset button, allowing for quick and easy installation.
• Pressure vent (prevents internal condensation).
• Supports target wake time (Smart AP TWT) function, the device can stay in a sleep state to save power when it’s not necessary to transmit.
• The OFDMA technology allowing multiple users to transmit simultaneously under different bandwidths, increasing transmission efficiency and no delay.
• 802.11ax BSS Coloring to improve service efficiency in high-density AP deployment environments.
• Supports 11ax 1024QAM, which improves the transmission efficiency higher than 256QAM.
• Built-in AES 128,256/SHA 1-96,128,256,512/3DES 1-96,MD5-96/CCM hardware encryption algorithm acceleration engines.
• Supports “Hardware Watch Dog” function, to achieve automatic reconnection mechanism.
The architecture work with Cerio DR series AP management controller, enabling easy advanced log functionality.
The log functionality of the AP controller is very important as it helps network administrators monitor network conditions, troubleshooting, security audits, and performance analysis. These logging features enable administrators to monitor and manage the wireless network, quickly identify and resolve problems, and ensure network stability, security, and efficient operation. The main functions of the CERIO AP controller logs are as follows:
Authentication and Session Logs: When the AP as the authentication, it can record the status of authenticated clients, including their session status, in the DR-CA management controller log server. This allows for the retrieval of related information at any time through the DR-CA management controller log browsing center.
AP Local System Logs: This feature allows the local system log status of the AP to be recorded in the DR-CA management controller log server, facilitating future retrieval through the DR-CA management controller log browsing center.
Location Tracking Logs: This feature allows the AP to set up location tracking logs and record them in the log server. Using the Wireless Location Tracking Log feature of the DR-CA management controller, administrators can retrieve a list of information at any time. This includes which IP/MAC address was connected to the AP by a particular MAC client, the RSSI wireless quality, the VLAN, and the radio to which the client was connected.

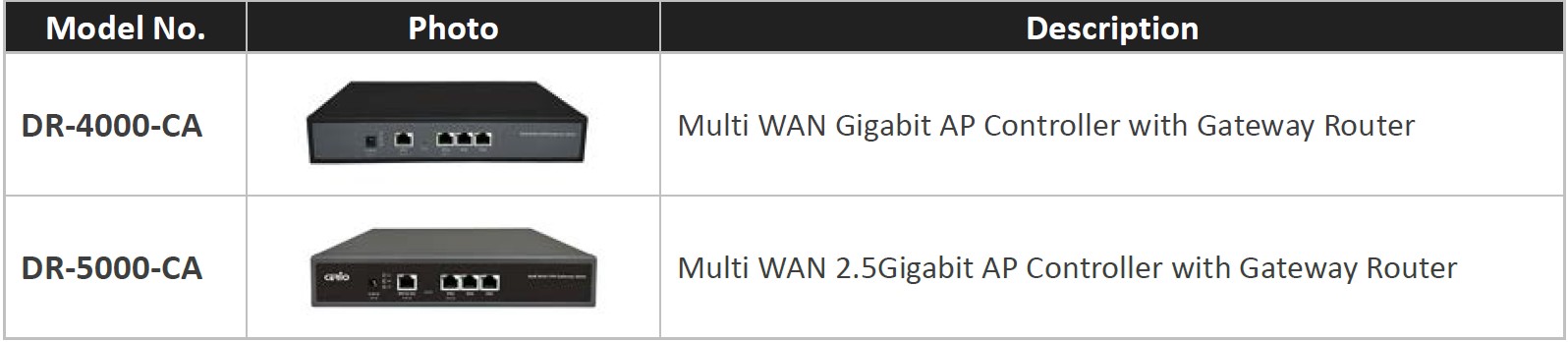

DR Series APManagement Controller Recommend

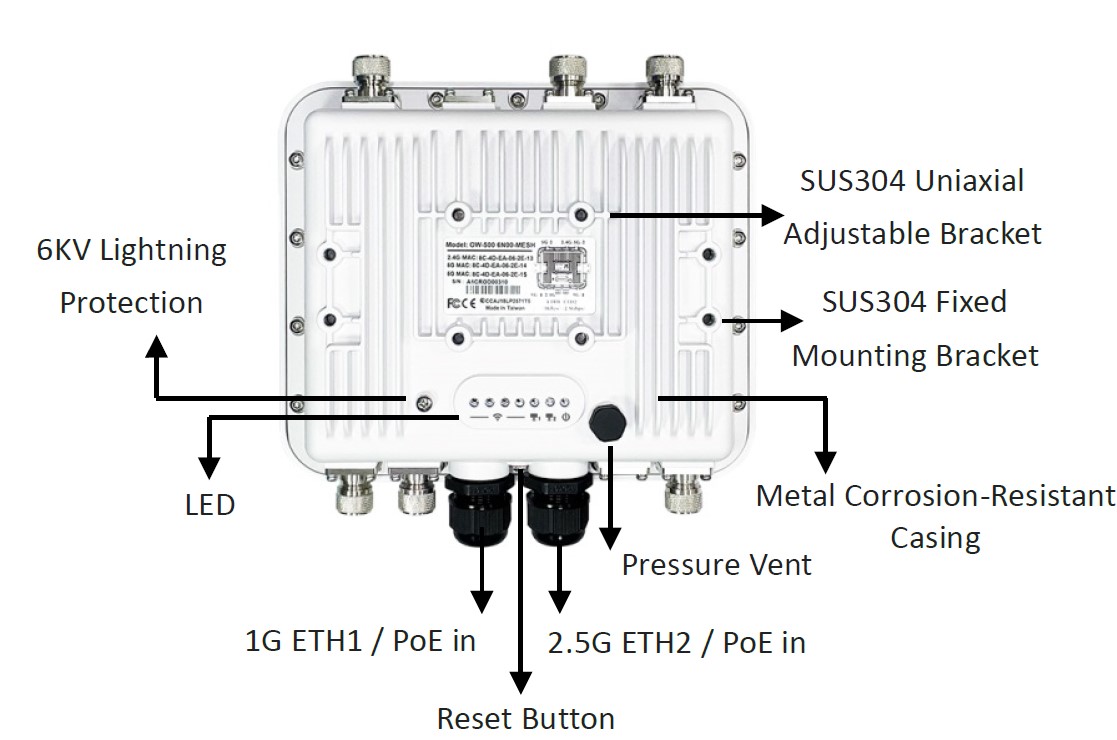

Hardware Overview
Mounting Application
Adjustable Wall Mounting
Fixed Wall Mounting Adjustable Pole Mounting
| Software | |
| Application Software | Cerio CenOS 5.0 Software Core |
| Standards & Hardware Specifications | |
| Standards & Hardware Specifications | IEEE 802.11 p/n/a/ac/ax compliant |
| IEEE 802.11d/h/i/j/u/v/w | |
| IEEE 802.3 / IEEE 802.3u | |
| IEEE 802.3af/at Power Over Ethernet compliant | |
| IEEE 802.11Q VLAN | |
| IEEE 802.11r/k Fast Roaming | |
| IEEE 802.11e WMM | |
| IEEE 802.1x RADIUS | |
| IEEE 802.3az EEE | |
| Ethernet Configuration | ETH1 : RJ45 10/100/1000M Ethernet Port x 1 |
| ETH2 : RJ45 10/100/1000/2500M Ethernet Port x 1 (Both supports Power over Ethernet 802.3at PoE in) |
|
| Reset Button | Reset to the factory default (Need to remove the waterproof protection screw plug) |
| LED Indicators | PWR (Power) x 1 |
| ETH1 (PoE In-1) x 1 | |
| ETH2 (PoE In-2) x 1 | |
| 2.4GHz Signal x 1 | |
| 5GHz-1 Signal x 1 | |
| 5GHz-2 Signa lx 1 | |
| WiFi MESH (Available for MESH model) x 1 | |
| Wireless Specifications | |
| Data Transfer Rate | IEEE802.11b : 1 / 2 / 5.5 / 11Mbps (auto sensing) |
| IEEE801.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps | |
| IEEE802.11n : 400Mbps (@ 40MHz 64QAM) | |
| IEEE802.11ac: 867Mbps (@ 80MHz 256QAM) | |
| IEEE802.11ax : 574Mbps(@ 40MHz 1024QAM) | |
| IEEE802.11ax : 1200Mbps(@ 80MHz 1024QAM) | |
| IEEE802.11ax : 2400Mbps(@ 160MHz 1024QAM) | |
| RF Spatial Streaming | 2.4Ghz: (IEEE802.11ax) SU-MIMO (2ss), DL MU-MIMO (2ss, 2 users), UL MU-MIMO (STA mode only, 2ss), DL-OFDMA (8 users), UL-OFDMA (4 users) |
| 5Ghz-1: SU-MIMO (2ss), DL MU-MIMO (2ss, 2 users), UL MU-MIMO (STA mode only, 2ss), DL-OFDMA (8 users), UL-OFDMA (4 users) |
|
| 5Ghz-2: DL MU-MIMO for HE160 and VHT160 (2ss, 2 users), UL MU-MIMO for HE160(2ss, 2 users), DL/UL MU-OFDMA (37 users) |
|
| Frequency Range | IEEE802.11nbg : Supports 2.412 ~ 2.462 GHz |
| IEEE802.11a/an/ac/ax : Supports 5.180 – 5.240 & 5.725 – 5.825 GHz |
|
| Channel Spacing | IEEE802.11b/g/n : 20/40MHz |
| IEEE802.11ac: 40/80MHz | |
| IEEE802.11ax: 40/80/160MHz | |
| Media Access Protocol | OFDMA on top CSMA / CA , Spatial Reuse / BSS Color |
| Modulation Method | IEEE802.11b：DSSS (DBPK,DQPSK,CCK) |
| IEEE802.11a/g/n : OFDM(64-QAM,16-QAM,QPSK,BPSK) | |
| IEEE802.11ac : OFDM (256-QAM, 64,-QAM, 16-QAM,QPSK,BPSK) | |
| IEEE802.11ax : OFDMA (1024-QAM, 256-QAM, 64,-QAM,16-QAM, QPSK,BPSK) | |
| Operating Channels | 2.4GHz : 1-13 5GHz : 36-64, 100-140, 149-165(Depends on configured regulatory domain) |
| Transmit Power Variation | 2.4Ghz : Max : 27 ± 1 dBm
5GHz-1 : Max : 27 ± 1 dBm 5GHz-2 : Max : 27 ± 1 dBm |
| Receiver Sensitivity | 2.4GHz : Max : -96 dBm
5GHz-1 : Max : -92 dBm 5GHz-2 : Max : -92 dBm |
| Environmental & Mechanical Characteristics | |
| Operating Temperature | -25 °C ~ 65 °C |
| Storage Temperature | -40 °C ~ 85°C |
| Operating Humidity | 10% – 95% Non-Condensing |
| Storage Humidity | 10% – 95% Non-Condensing |
| Antenna | 2.4GHz : 2 N-Type Connectors for 2.4GHz Band |
| 5GHz-1 : 2 N-Type Connectors for 5GHz Band | |
| 5GHz-2 : 2 N-Type Connectors for 5GHz Band | |
| Vent | Automatically adjustable Vent design |
| Form Factor | Supports Adjustable Wall Mounting Installed Supports Fixed Wall Mounting Installed Supports Adjustable Pole Mounting Installed SUS304 M6 U-bolt / Diameter: 34mm~Ø54mm SUS304 O-type Hose Clamps / Diameter:Ø30mm~Ø90mm |
| ESD | Conductive: 6KV
Air: 8KV |
| Surge Protection | L to L：2KV
L to G: 6KV |
| Power Consumption | 12.2Watt Max (Standby) |
| Power Requirement | Supports Power Over Ethernet ( POE 52~57V) |
| Input Power | IEEE 802.3at 48~57V PoE In |
| Dimensions ( W x D x H ) | 241 x 201 x 84mm |
| Housing Materials | IP68 Rating / Die-Cast aluminum with Plastic Enclosure |
| Unit Weight | 2.1kg |
| Production Location | TW |
| Certifications | CE, FCC, NCC, ROHS Compliant |
| Package Content | |
| OW-500 6N00 Main Unit | x1 |
| PoE Power Supply Kit | x1 |
| SUS304 Uniaxial Adjustable Bracket (OW-PKUR) | x1 |
| SUS304 Fixed Mounting Bracket (OW-PKZR) | x2 |
| Quick Installation Guide(Chinese/English) | x1 |
| Warranty Card | x1 |
