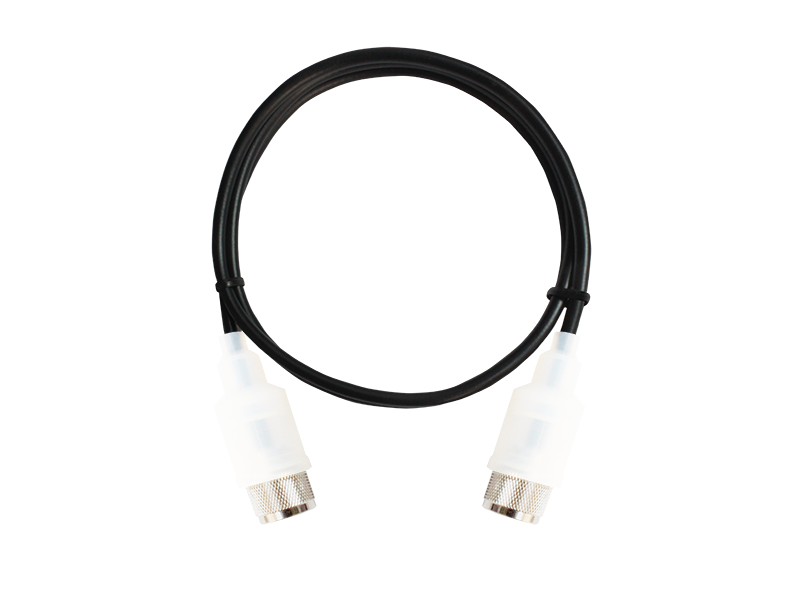

1M & 2M N-Plug (Male ) to N-Plug ( Male ) LLMR200 Low Loss RF Antenna Cable

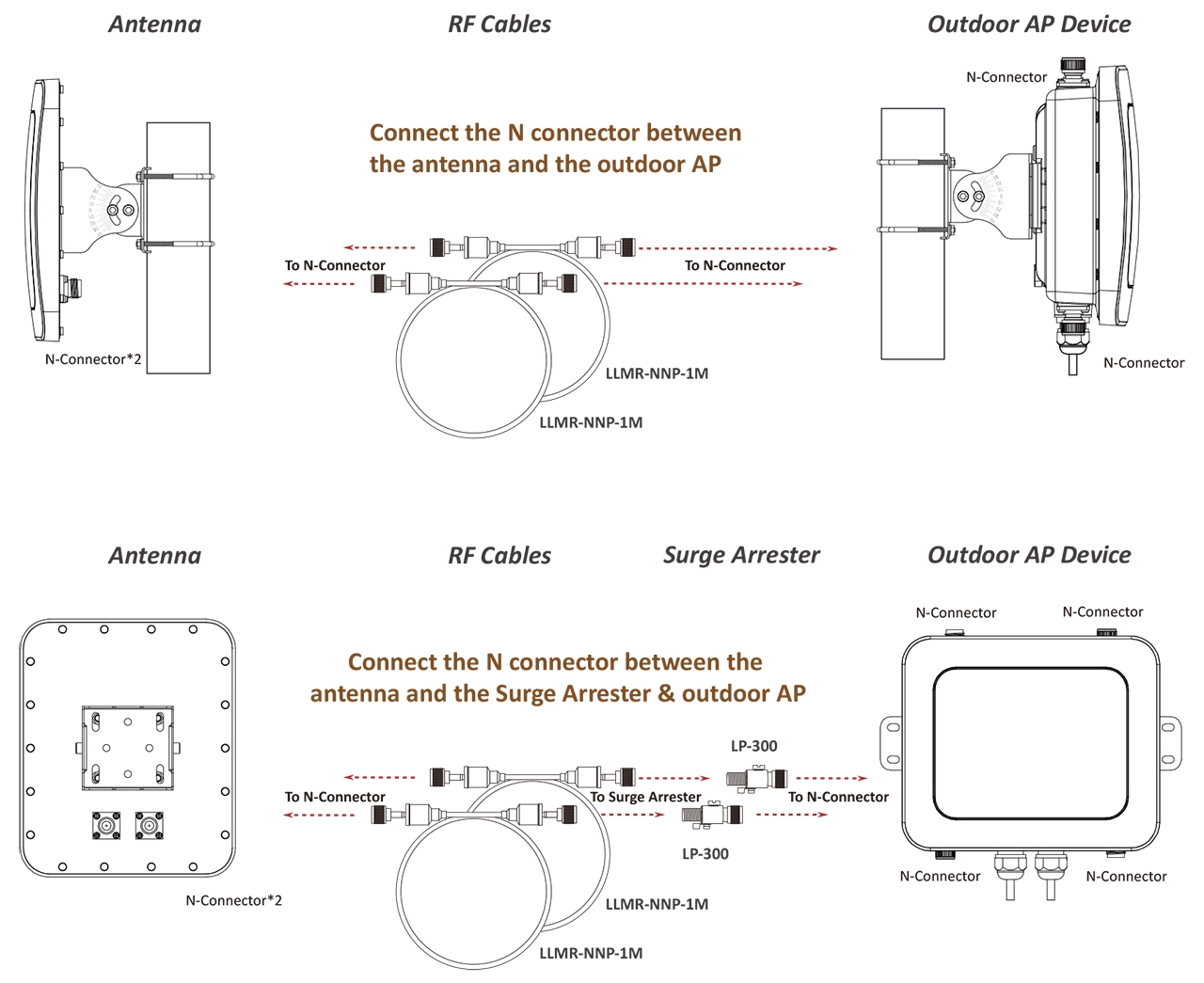

CERIO N-Plug (Male) to N-Plug (Male) LLMR200 Low Loss RF Antenna Cable provides low loss of attenuation with antennas. The cable supports 11b/g/n/ax 2.4GHz and 11a/ac/ax 5GHz band applications. By using low-loss RF cables, you can extend the reach of your high-power antenna with minimal power loss to achieve maximum efficiency. The connector at both ends is attached with a waterproof cap, which can strengthen the Water Resistant measures between the connectors of the two ends when the outdoor antenna and equipment are connected. It effectively enhances the durability of the antenna and the wireless equipment for outdoor applications. The LLMR Series Antenna Cable provides Water Resistant protection for the connectors and making the installation more professional and simpler.
CERIO N-Plug (Male) to N-Plug (Male) LLMR200 Low Loss RF Antenna Cable provides low loss of attenuation with antennas. The cable supports 11b/g/n/ax 2.4GHz and 11a/ac/ax 5GHz band applications. By using low-loss RF cables, you can extend the reach of your high-power antenna with minimal power loss to achieve maximum efficiency. The connector at both ends is attached with a waterproof cap, which can strengthen the Water Resistant measures between the connectors of the two ends when the outdoor antenna and equipment are connected. It effectively enhances the durability of the antenna and the wireless equipment for outdoor applications. The LLMR Series Antenna Cable provides Water Resistant protection for the connectors and making the installation more professional and simpler.
- Length : 1 Meter (100CM) LLMR-NNP-1M
- Length : 2 Meter (200CM) LLMR-NNP-2M
- 0 ~ 6 Ghz Frequency range
- Cable Low Loss at
- @ 2.4GHz : Total Loss 0.515 dB/M
- @ 5.2GHz : Total Loss 0.888 dB/M
- @ 5.5GHz : Total Loss 0.928dB/M
- @ 5.8GHz : Total Loss 0.968 dB/M

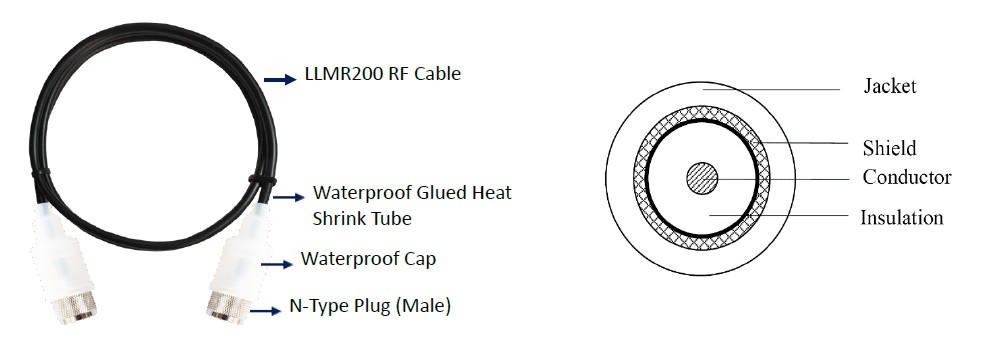

| Specifications | |
| Cable Type | LLMR200 |
| Conductor | Material : Bare Copper Wire |
| Diameter O.D : 1.12mm ± 0.03mm | |
| Insulation | Material : LDPE |
| Diameter O.D : 2.95 mm ± 0.1mm | |
| Shield | Material : Tinned Copper Wirte |
| Diameter O.D : 3.1mm | |
| Jacket | Material : Black PVC |
| Diameter O.D : 5mm ± 0.1mm | |
| Attenuation (Cable Loss) | IEEE802.11b/g/n/ax : 2.4GHz : dB/100M Loss 51.5dB |
| IEEE802.11a/ac/ax : 5.2GHz : dB/100M Loss 88.8dB 5.5GHz : dB/100M Loss 92.8dB 5.8GHz : dB/100M Loss 96.8dB |
|
| Impedance | 50 Ohms |
| V.S.W.R | ≤ 1.35 |
| Connector | N-Type Plug (Male) to N-Type Plug (Male) |
| Connector sleeve | N-Type : Waterproof cap x2 |
| Operating Temperature | -20 °C ~ 80 °C |
| Storage Temperature | -20 °C ~ 80 °C |
| Humidity | 100% Non-Condensing |

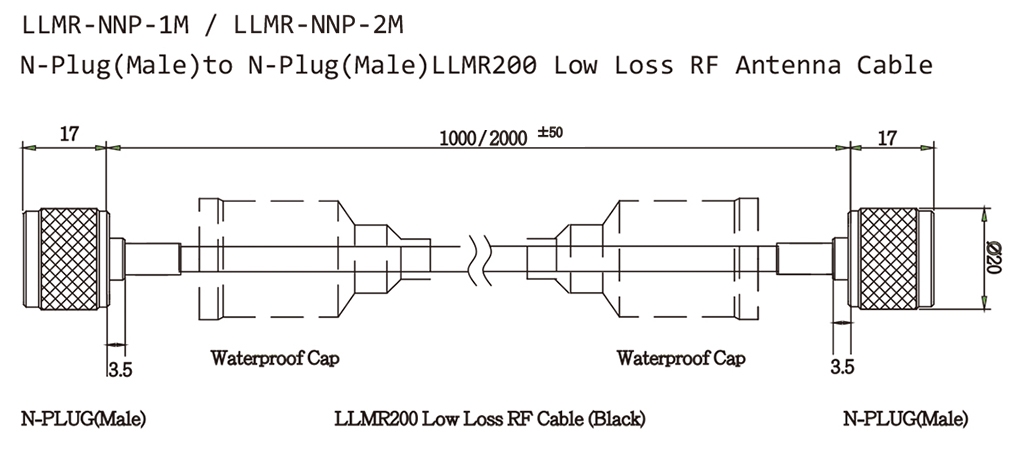

| Dimension | LLMR-NNP-1M : 1000 * 5 (L *W) mm Cable Diameter 5mm (max) Connector Diameter 20mm (max) |
| LLMR-NNP-2M : 2000 * 5 (L *W) mm Cable Diameter 5mm (max) Connector Diameter 20mm (max) |
|
| Weight | LLMR-NNP-1M : 98.6g LLMR-NNP-2M : 137g |
| Production Location | TW |
| Others | RoHS Compliant |
| Package Contents | |
| Content | LLMR-NNP-1M or LLMR-NNP-2M Main unit x1 |
