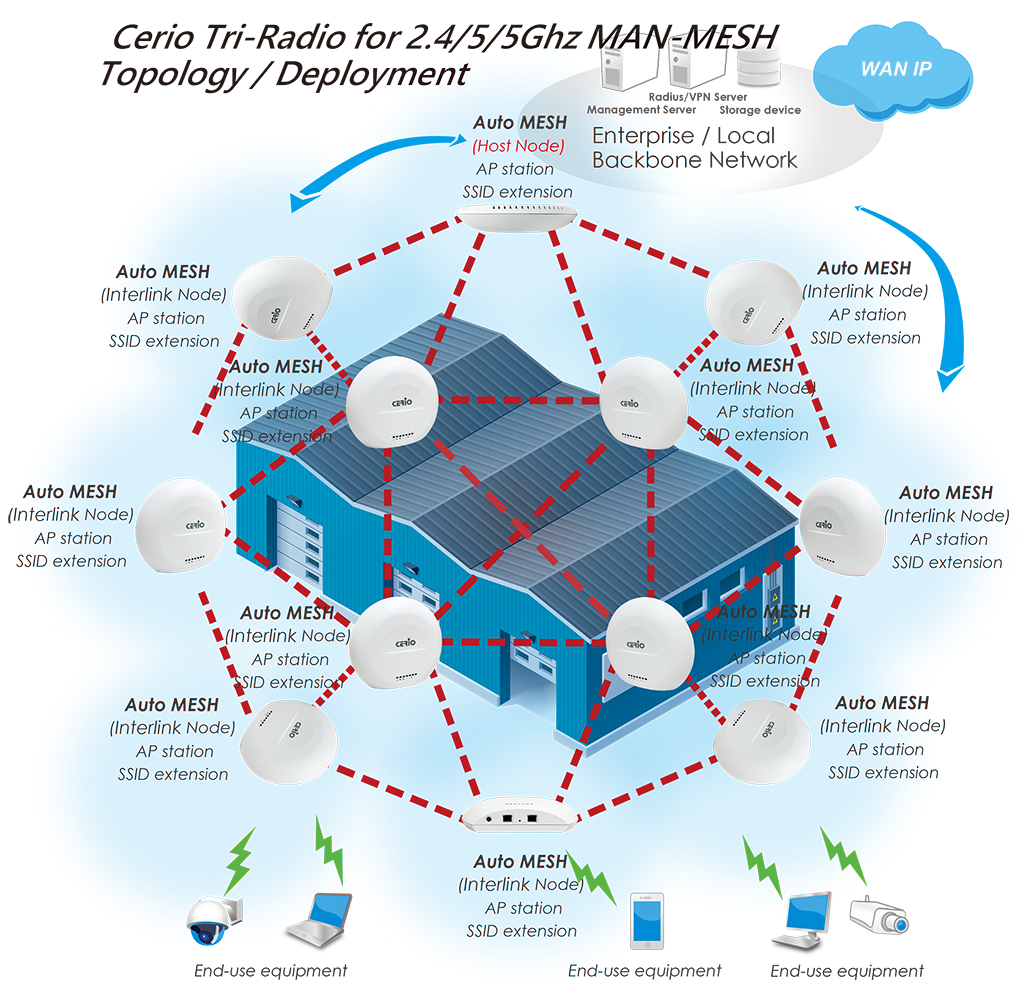

Auto-Configuring Mesh Network
The Layer3 Mesh Backbone Auto Link Optimization which provides user friendly and simpler setting configuration. It can extend the wireless network to areas that are difficult or expensive to connect via Ethernet cabling. CERIO MAN-MESH provides Intelligent WiFi Mesh technology, Meshed APs self-configure and establish a high-performance, robust, and resilient network automatically, without any need for manual intervention or provisioning. Provide a full coverage wireless network without dead ends, no matter where you are, you can automatically and seamlessly connect to the optimal wireless signal at any time.
Self-Healing Networking with Per-Flow Optimization
This technology can prevent network paralysis from occurring. Each node in the WiFi Mesh Network is connected and communicates with each other. When a node in a mesh network environment is failure through a wired or wireless interface, Mesh will dynamically reconfigure and find the best link and automatically detect and forward traffic to other node link AP devices with Internet network connectivity. To ensure that the connection in the network can continue normally.
Multi-Channel Routing Protocols
Provides Layer3 Intelligent wireless mechanism and advanced proprietary routing protocols and algorithms continuously evaluate link performance by measuring a variety of factors, including signal strength, throughput, link cost, interference, and frame reception rates. Wireless APs take measurements individually and work together with neighboring APs to optimize overall capacity and client throughput. APs route traffic over different channels as needed to minimize per-hop performance degradation and maximize client performance.

MAN MESH Core Software Mode
The CERIO MAN MESH Intelligent Core Software Mode provides Layer3 Mesh Backbone Auto Link Optimization, it’s using simpler and smartest way to improve the connection quality of the wireless network which let a large number of users in the vast space can enjoy a stable quality wireless network. In addition, each node in the mesh wireless network system can be an independent, providing fast connection and a more stable wireless network. With Intelligent WiFi Mesh Topology, the wireless node will communicate with each other and can be set automatically, which greatly reduces the complicate setting procedure. The MAN-MESH Layer3 Mesh Backbone Auto Link Optimization another advantage is that when one of the wireless nodes fails or disconnected, the other wireless node in the mesh network can communicate with each other and recover the network connection automatically. Which is an excellent solution for large buildings or public areas, such as airport, shopping mall, large office, banquet hall and auditorium and IOT. Through the construction of intelligent mesh network, members can quickly deploy and reliably communicate information.

MAN-MESH Highlight Features

•The Mesh Network no geographical limitations : Selecting IPv4 Bridge Layer 2 under the Mesh Layer3 protocol can meet and provide the fast roaming wireless access function (802.11r) required by mobile users in a mesh environment. It can automatically configure and automatically establish the best performance to achieve a highly stable and flexible mesh network environment.
•In addition, it supports Mesh AP backbone interconnection capabilities (Under Layer 3 protocol), and it can also be wireless AP station (Under Layer 2 protocol) for wireless clients access in various scenarios.
• The wireless AP supports 2.4GHz Radio0, 5GHz Radio1 and 5GHz Radio2, each radio support 16 groups of Multiple-VLAN (ESSID), total supports up to 48groups of Multiple-VLAN (ESSID).
• Support virtual network tagging function (VLAN Tag), each group can use different VLAN tag.
• Support multi-node smart link capability, automatic detection of each node, network optimization and network self-healing function, always ensure that the network connection will not be interrupted at any place. It can improve work efficiency and deploy network connection quickly, very convenience and saving time.
• Real-Time Environment Monitoring and Routing : Constantly scan the air to monitor mesh link. If a better link is available, it will automatically re-route the mesh path to optimum mesh network quality.
• Supports routing and across-network interface interworking IP address identification. Through the IPv4 Bridge function, the different network access interfaces of each MAN-Mesh AP under the routing layer include wired LAN, wireless Radio and other IP addresses of each different interface can access each other. And support Static Peer setting. For example, LAN PC server and other devices can be fixed in a network environment with multi routing links and can be reliably accessed.
• DHCP server and DHCP Relay (DHCPR) relay service in the same or different network segment, allows DHCP data to be successfully exchanged between the DHCP client and the DHCP server.
• MAN Mesh network interconnection security: support AES 128,256bit encryption function, provide input 8 ~ 32 characters, Each MAN-Mesh AP connects through secure encrypted transmission each other.
• NAT network IP address translation function designated as a WAN side by wire or wireless interface, When Mesh network is connecting, the administrator can enable this NAT application function for a specific MAN-Mesh node host in the environment to construct a more diverse and flexible mesh network environment.
• Supports intelligent routing and multi-channel selection of Auto Mesh Link function, Mesh connection between multiple channels based on signal quality, link optimization, hop-by-hop performance, transmission efficiency.
• Mesh AP supports multiple Radio, each Radio supports independent Mesh AP interface settings, and supports IPv4 and IPv6 MAN-Mesh IP address format applications.
• Support host multi-hop setting, corresponding setting for available channels, through the “host node” can be found in the Mesh environment can be used in multiple fixed channels in advance, in order to create and assist other “interconnected nodes connection.
• Support MAN-Mesh Force Link priority interconnection setting, according to the MAC address designation method of MAN-Mesh equipment, set priority to specify link host MAN-Mesh AP, to make the construction of Mesh network environment more flexible and practical.
• Provides a wireless connection distance setting by quickly function, for the actual required distance to solve the complicated wireless parameter settings required for outdoor remote wireless connection.
• MAN-MESH mode supports link chart and status display functions, such as WI-FI multi-angle positioning relative IP address connection mesh node display, MAN-Mesh neighbor and routes / redistributed routes information, and each wireless Radio connecting corresponding MAC address information, connection rate and RSSI quality etc, to facilitate the administrator to grasp and understand the relevant information between each of the Mesh construction environment and each next-note Mesh.
• Through the CAP management mode, you can quickly add each MAN-Mesh host in the environment that needs to be monitored and managed. Through the device list and construction, you can quickly grasp the basic information such as the connection time and firmware version.

Software Features

MAN Mesh Wireless Feature

•Supports Location Tracking function, for the wireless client location information to the server for analysis.
• Supports auto channel scanning function, automatic scanning the most undisturbed and suitable wireless channel in the field environment
•Supports latest IEEE802.11r/k wireless fast roaming technology.
• Supports wireless IGMP Snooping v1/v2/v3 function, routing multi-cast stream to more efficiently manage media traffic.
• Provide RF on/off and scheduling function for easy control RF radio on/off time table.
•Supports WEP, WPA/WPA2 Personal、WPA2/WPA3 Enterprise / WPA3 and 802.1x connection encryption methods.
• Wireless access control list (ACL) by MAC Address.
• Support IEEE802.11e WMM QoS.

Network / Management

•Supports IEEE 802.1Q VLAN Tag, total up to 16 of multiple-VLANs supported, each SSID supports 802.1q VLAN Tag standards, supporting up to 4096 group VLAN Tag capability.
• Web-Based supports HTTP / HTTPS and advanced CLI via Telnet and SSH interface management functions.
• Support SNMP v1/v2c/v3, MIB II. Also supports SNMP Traps to a list of IP addresses.
• Supports remote login to management UI, firmware update, factory default reset, configuration file backup and restore. Detect connection signal, transmission rate, encryption and other information display.
• Support Ping Watchdog function, which automatically monitoring device operations and reboot of the device.
• Supports Auto reboot setting function, can schedule Auto Reboot by Hour/Daily/Weekly setting.
• Real-Time Online Users Traffic Statistic Reporting and users connection status，and support Syslog and Event log.
• Provides Traffic Monitor and Graphical GUI Status Interface for Network and Radio Overview.

Hardware Features

• One 2.4Ghz band supports IEEE 802.11bgn/ax 2Tx/2Rx wireless standard with maximum data transfer rate of 574Mbps.
• Two 5Ghz bands support IEEE 802.11 an/ac/ax 2Tx/2Rx wireless standard with a maximum data transfer rate of 1200/2400Mbps.
• Hardware embedded a long-range power amplifier and high sensitivity receiver to deliver unmatched reliability and performance at large coverage application.
• 500mW at 2.4Ghz and two 5Ghz Output eXtreme High Power design.
• Built-in 6 sets of tri-band (2.4G/5G/5G) 5dBi Omni antennas to achieve wireless MU-MIMO high-speed transmission and reception.
• Supports one 2.5G Ethernet port and one 1G Ethernet port and all support PoE standard allows PoE power and data transmission through Cat5e cabling. It also supports a DC input of DC12~56V power adapter.
• Supports target wake time (Smart AP TWT) function, the device can stay in a sleep state to save power when it’s not necessary to transmit.
• The OFDMA technology allowing multiple users to transmit simultaneously under different bandwidths, increasing transmission efficiency and no delay.
• 802.11ax BSS Coloring to improve service efficiency in high-density AP deployment environments.
• Supports the latest 11ax Low-Density Parity-Check (LDPC) function, which can efficiently perform error correction and supports Space-Time Block Coding (STBC), Transmit Beamforming (TxBF), which can enhance signal coverage and improve wireless transmission performance.v1.0EC
• Supports 11ax 1024QAM, which improves the transmission efficiency higher than 256QAM.
• Built-in AES 128,256/SHA 1-96,128,256,512/3DES 1-96, MD5-96/CCM hardware encryption algorithm acceleration engines.
• Supports “Hardware Watch Dog” function, to achieve automatic reconnection mechanism.
• Easily placed on the desktop or installed on the wall or ceiling.

The architecture work with Cerio DR series AP management controller, enabling easy advanced log functionality.

The log functionality of the AP controller is very important as it helps network administrators monitor network conditions, troubleshooting, security audits, and performance analysis. These logging features enable administrators to monitor and manage the wireless network, quickly identify and resolve problems, and ensure network stability, security, and efficient operation. The main functions of the CERIO AP controller logs are as follows:

Authentication and Session Logs: When the AP as the authentication, it can record the status of authenticated clients, including their session status, in the DR-CA management controller log server. This allows for the retrieval of related information at any time through the DR-CA management controller log browsing center.

AP Local System Logs: This feature allows the local system log status of the AP to be recorded in the DR-CA management controller log server, facilitating future retrieval through the DR-CA management controller log browsing center.

Location Tracking Logs: This feature allows the AP to set up location tracking logs and record them in the log server. Using the Wireless Location Tracking Log feature of the DR-CA management controller, administrators can retrieve a list of information at any time. This includes which IP/MAC address was connected to the AP by a particular MAC client, the RSSI wireless quality, the VLAN, and the radio to which the client was connected.

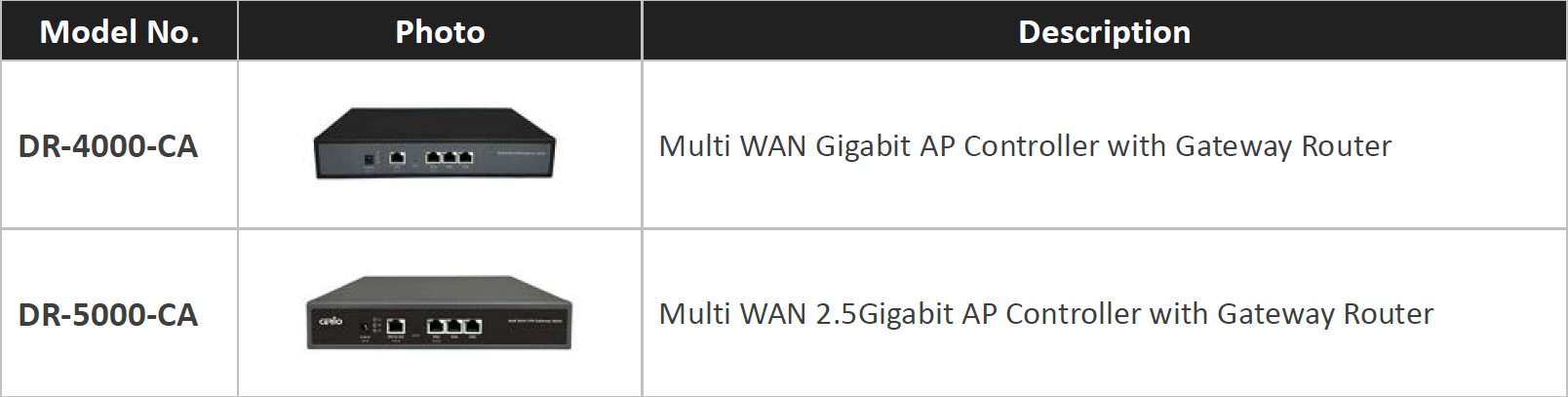

DR Series AP Management Controller Recommend

Hardware Overview

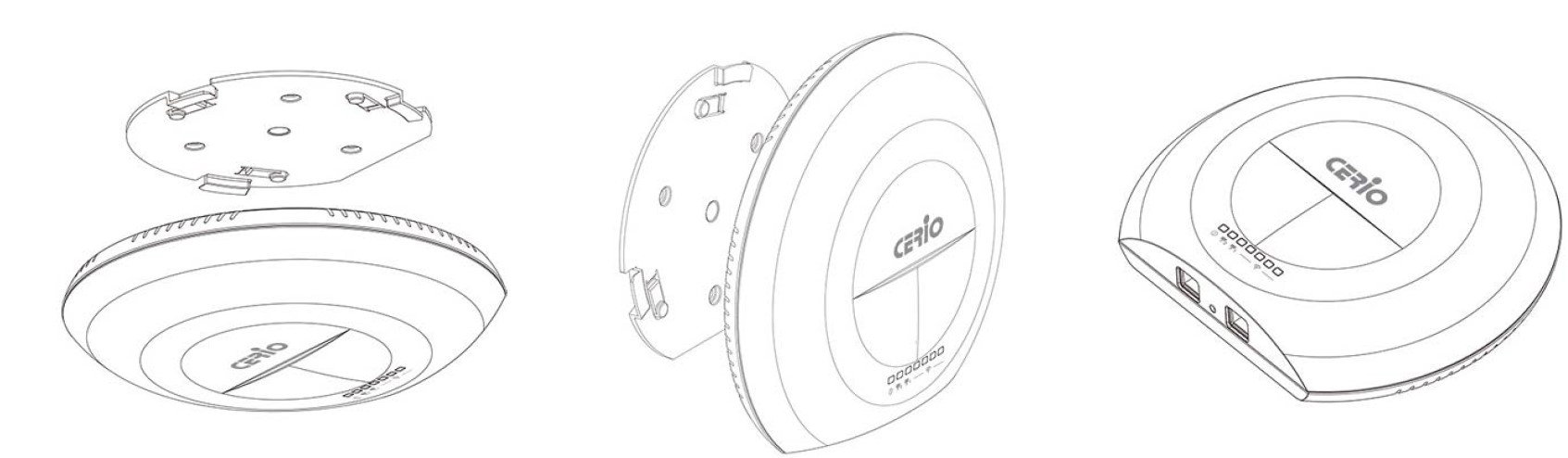

Mounting Application
