CS-1008XG

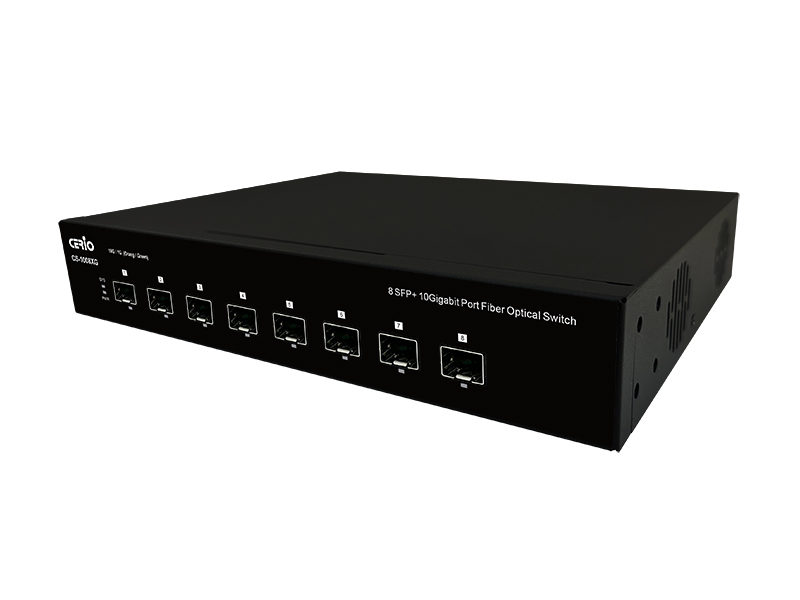

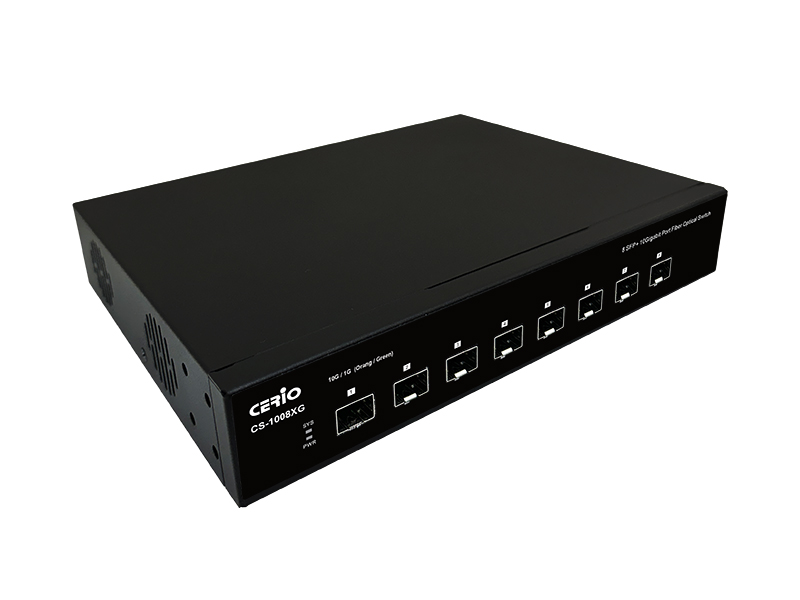

CERIO CS-1008XG is a high-performance 8-port SFP+ 10G fiber switch, offering 8 SFP+ 10Gbps slots. It supports high-speed 10Gbps connections via fiber or copper optical module, making it suitable for network environments that require high bandwidth and low latency. This switch effectively enhances network performance and meets the demands of modern networking.The CS-1008XG is an ideal solution for small businesses or office environments, providing high-speed internal network connectivity that significantly enhances data transfer efficiency. It ensures smooth file access and sharing between servers, NAS, and workstations. It’s also suitable for distributed terminal area of a large network architectures, not only as the final 10G high-speed access device, but also as the backbone network switch between regions. It’s fully meet the high-bandwidth requirements of the new generation of multimedia and image transmission, and allow small businesses and professional users to easily upgrade to 10G high-speed networks at a competitive price.

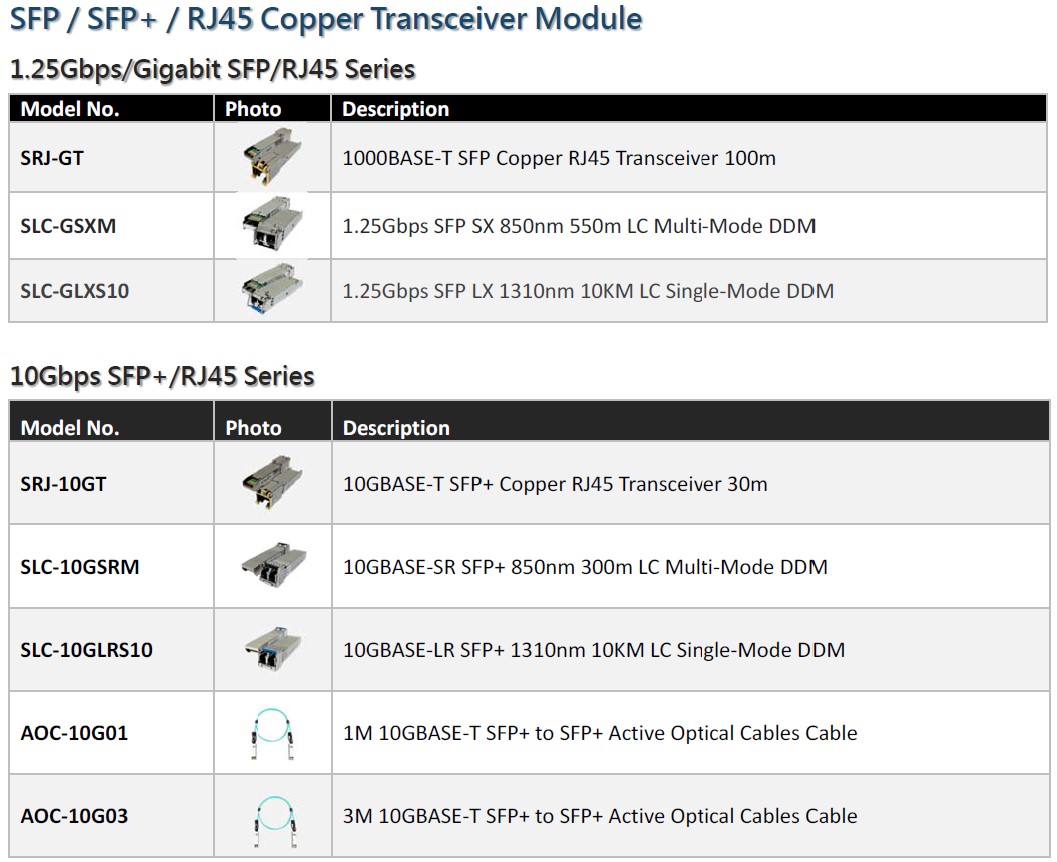

The CS-1008XG provides 8 SFP+ slots, supporting connections for Mini GBIC 10G SFP+, 1G SFP fiber optical modules, or 10G and 1G RJ45 copper modules, offering flexibility for administrators in configuration. In addition to providing long-distance IP fiber device connections, its hardware backplane bandwidth capacity reaches up to 160Gbps, which not only enhances the overall system stability but also allows for easy interlinking of multiple switches through the 10G ports, expanding the overall fiber integration capability.
The CS-1008XG is especially suitable for fiber-based central integration of endpoint switches, providing a perfect solution for the deployment of long-distance IP surveillance cameras at the central site. This switch ensures high-speed connectivity and non-blocking packet data forwarding, making it ideal for critical applications such as IP surveillance systems. It’s typically used as the fiber integration core switch for medium to large network systems, and is well-suited for scenarios such as small to medium-sized data centers, campus networks, enterprise networks, and high-speed long-distance fiber data transmission..
Highlight Features
• Complying with 802.3z 1000Base-SX/LX (SFP), IEEE 802.3ae 10GBASE-X (SFP+) and IEEE 802.3x Flow Control standards.
• Supports 8-port 10G SFP+ / 1G SFP fiber slots for high-speed 1G/10G RJ45 copper module connections and Mini GBIC SFP/SFP+ fiber optical module connections, ideal for long-distance network applications.
• Supports 1G/10G fiber network transmission capabilities.
• Supports Surge Protection 6Kv and ESD Protection design.
• Provides 10K Jumbo frames to improve network utilization of a large file transfers.
• Supports Store & Forward architecture and performs forwarding and filtering.
• IEEE802.3x flow control for Full-duplex, Back Pressure function for Half-duplex operation.
• Non-blocking & Non-head-of-line blocking full-wire speed forwarding.
• Automatic Source MAC Address Learning and Aging.
• Supports up to 16K MAC addresses and up to 12Mb buffer memory.
• Supports Internal Bus Speed up to 160Gbps.
• Comes with a 19-inch rackmount kit, making it easy to deploy in various network environments and ensuring stable and efficient network connections.

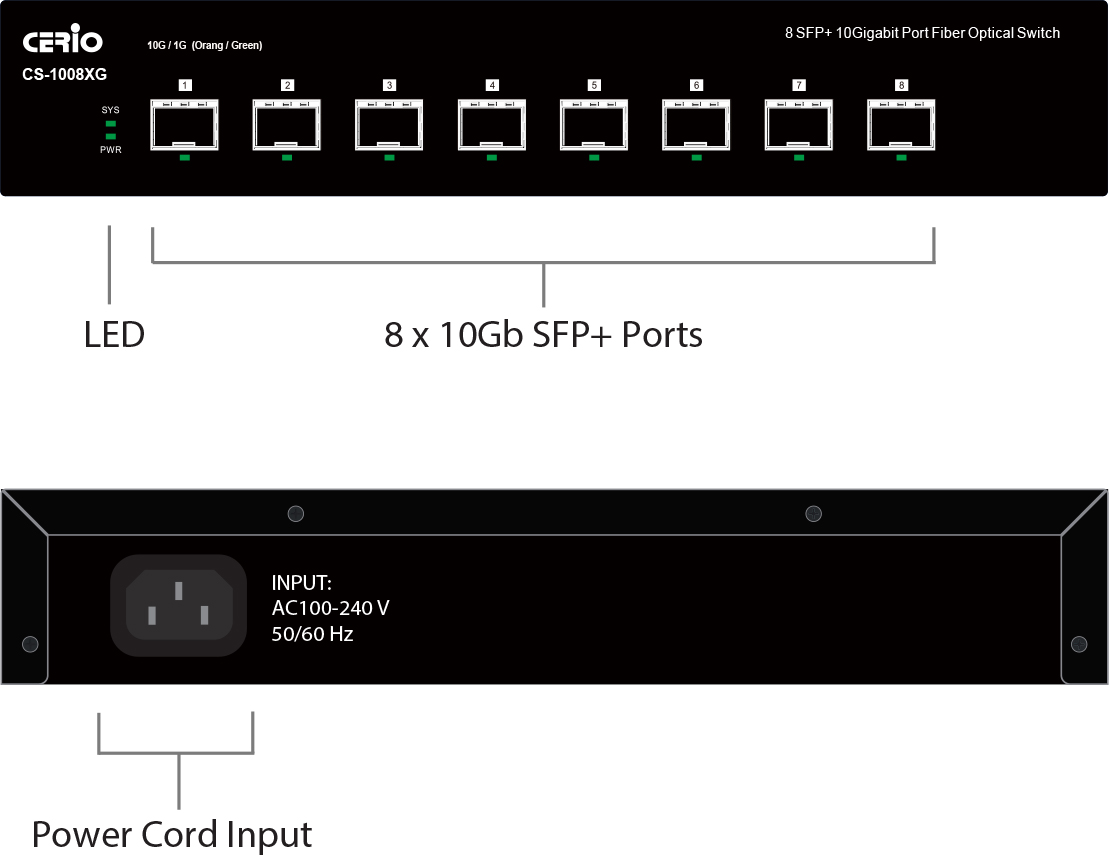

Hardware Overview
| Standards & Hardware Specifications | |
| Network Standards Conformance | IEEE 802.3z 1000Base-SX/LX (SFP) |
| IEEE 802.3ae10GBASE-X (SFP+) | |
| IEEE 802.3x Flow Control | |
| Port Configuration | 8 ports 10G SFP+ Slots |
| Surge Protection | General 6KV , Difference 2KV |
| ESD Protection | Air : 15KV , Contact : 8KV |
| Media Access Protocol | CSMA / CD |
| Network Media | Single-mode : 20/40/60/80/100KM |
| Multi-mode : 550M | |
| Transmission Method | Store and Forward |
| MAC Address Table | 16K |
| Built-in Buffer | 12Mb |
| Jumbo Frames | 10K |
| Data Transfer Rate | 1G/10G (Half-duplex), |
| 2G/20G (Full-duplex) | |
| LED Indicators | 1G Per Port: Link/ACT (Green) x 8 |
| 10G Per Port: Link/ACT (Orange) x 8 | |
| Per Unit: System Status x 1 | |
| Per Unit: PWR Status x 1 | |
| Interternal Bus Speed/Exchange Rate | 160Gbps/119.04Mpps |
| Environmental & Mechanical Characteristics | |
| Power Consumption | ≤ 35 Watts |

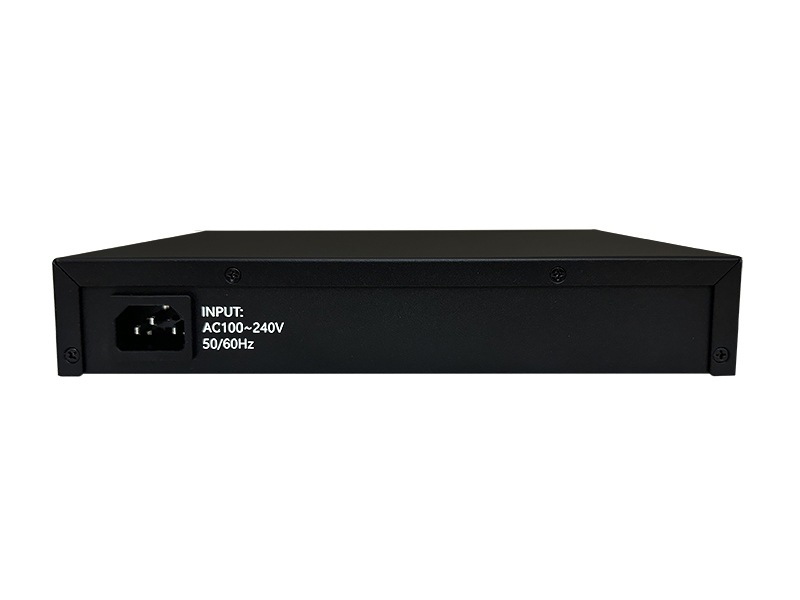

| Power Type | Power cord: Internal Power supply |
| Power Requirement | AC 100~240VAC, 50-60Hz Auto-sensing |
| Operating Temperature | 0° to 55° C |
| Storage Temperature | -40° to 70° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x H x D ) | 250 x 181 x 44 mm |
| Weight | 1.25kg |
| Production Location | TW |
| Certifications | FCC, CE, BSMI, RoHS-Compliant |
| Package Content | |
| CS-1008XG Main Unit | x1 |
| Quick Installation Guide Booklet | x1 |
| Power Cord | x1 |
| 19” Rack Mount Brackets | x1 |
| Warranty Card | x1 |
