SRJ-10GT
10GBASE-T SFP+ Copper RJ45 Transceiver (30M)
The CERIO 10GBASE-T SFP+ Copper RJ45 module is a small pluggable transceiver that can be used with switches or routers that support RJ45 connectors. It supports 1/2.5/5/10Gbps Ethernet transmission capabilities, and the maximum transmission rate can reach up to 10Gbps. This module complies with IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, and IEEE 802.3an 10GBASE-T network standards. Using Cat6a network cable, the maximum transmission distance for 10Gbps Ethernet transmission capability can reach up to 30 meters.
- Overview
- Specification
- Gallery
- Download
Overview
The CERIO 10GBASE-T SFP+ Copper module uses an RJ45 interface and is directly compatible with network devices that support RJ45 interfaces. Therefore, there is no need to replace existing network equipment or re-layout fiber optic cables, and upgrades can be made to installed equipment, greatly reducing the cost of fiber optic cabling. This 10GBASE-T SFP+ Copper RJ45 transceiver is widely used in various network application scenarios, such as data centers, enterprise networks, campus networks, and wide area networks.
Highlight Features
- Complying with IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T and IEEE 802.3an 10GBASE-T Ethernet Standards.
- Compliant with SFP Multi-Source Agreement (MSA).
- Supports 1/2.5/5/10Gbps Ethernet transmission capability.
- Complying with Auto MDIX function, which can support parallel line and crossover port and has Autonegotiation function.
- At 10Gbps Ethernet speed use Cat6a network cable, the maximum transmission distance up to 30 meters. At 2.5/5Gbps Ethernet speed use Cat5e network cable, the maximum transmission distance up to 50 meters. At 1Gbps Ethernet speed use Ca5e network cable, the maximum transmission distance up to 100 meters.
- Low power consumption less than 1.5W.
- Single power supply 3.3V.
- Hot-pluggable remove and install module.
- RoHS compliant.
- Plug and play, easy installation.
Specification
| SRJ-10GT | |
| Specifications | |
| Fiber Type | SFP Copper |
| Data Transfer Rate | 1/2.5/5/10Gbps |
| Maximum Fiber Distance | 10Gbps: Use Cat6a up to 30M 2.5/5Gbps: Use Cat5e up to 50M 1Gbps: Use Ca5e up to 100M |
| Supply Voltage | 3.3V |
| Power Consumption | < 1.5W |
| Connector | RJ45 |
| Operating Temperature | 0°C ~ 65 °C |
| Storage Temperature | -40 °C ~85 °C |
| Dimension ( W x H x D ) | 13.4 x 13.7 x 66.7 mm |
| Weight | 23g |
| Production Location | TW |
| Certifications | RoHS compatible |
| Package Contents | |
| SRJ-10GT Main Unit | x1 |
| Warranty Card | x1 |

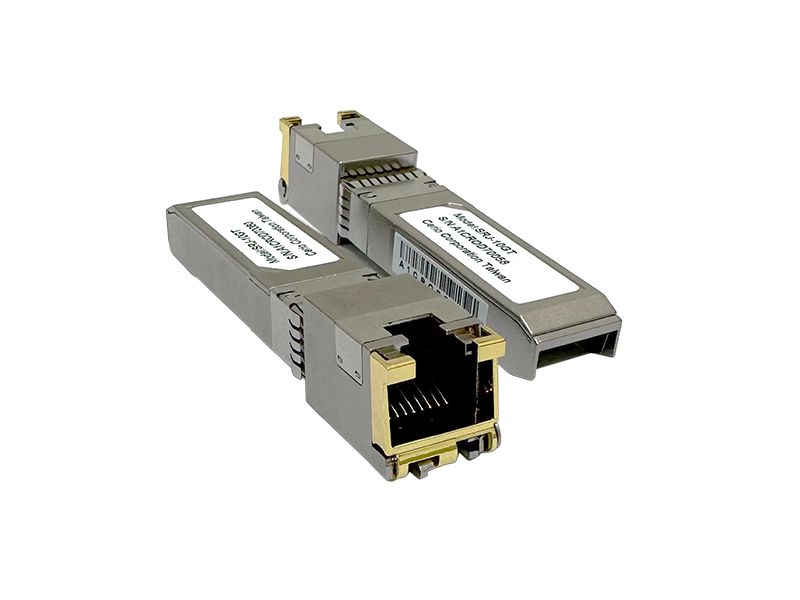

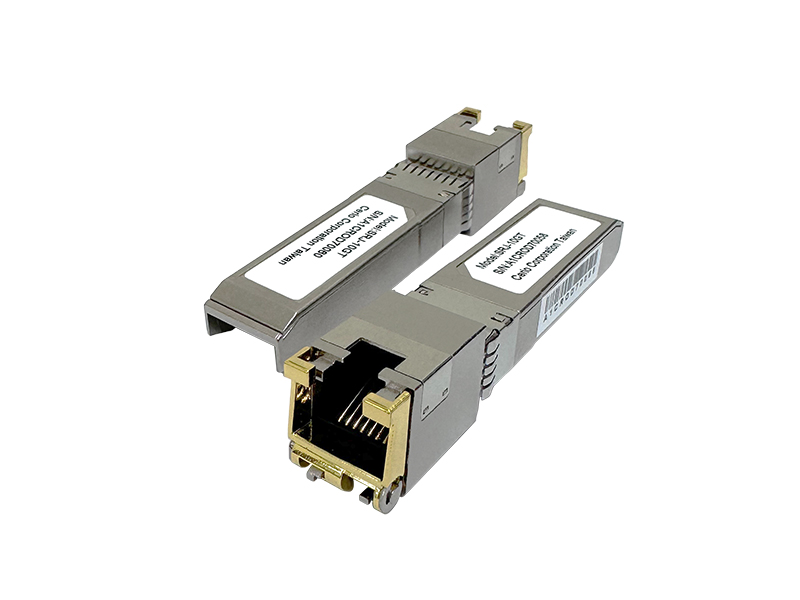

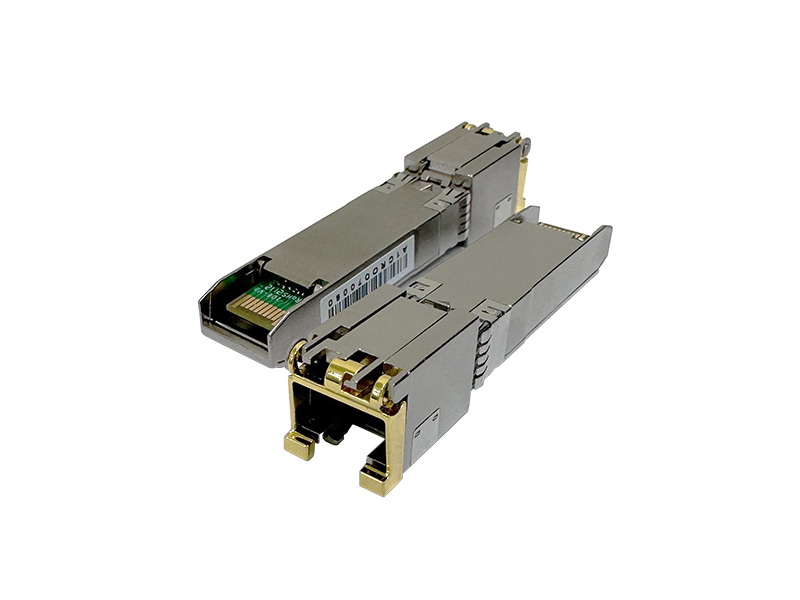

Gallery
