SLC-10GSRM
10GBASE-SR SFP+ 850nm LC Multi-Mode DDM (300M)

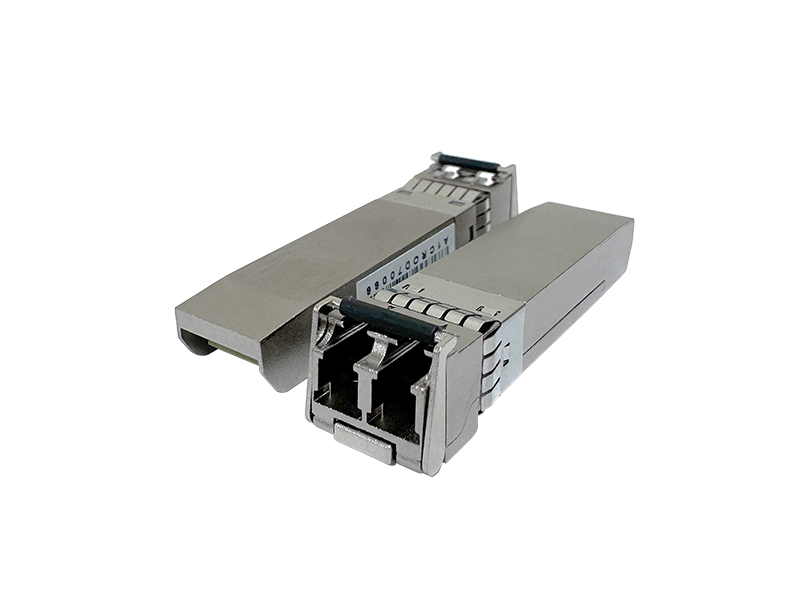

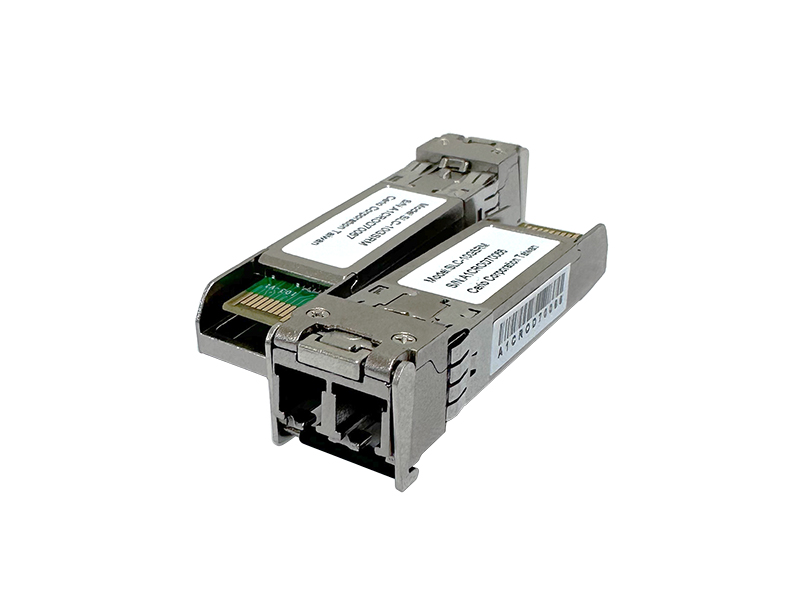

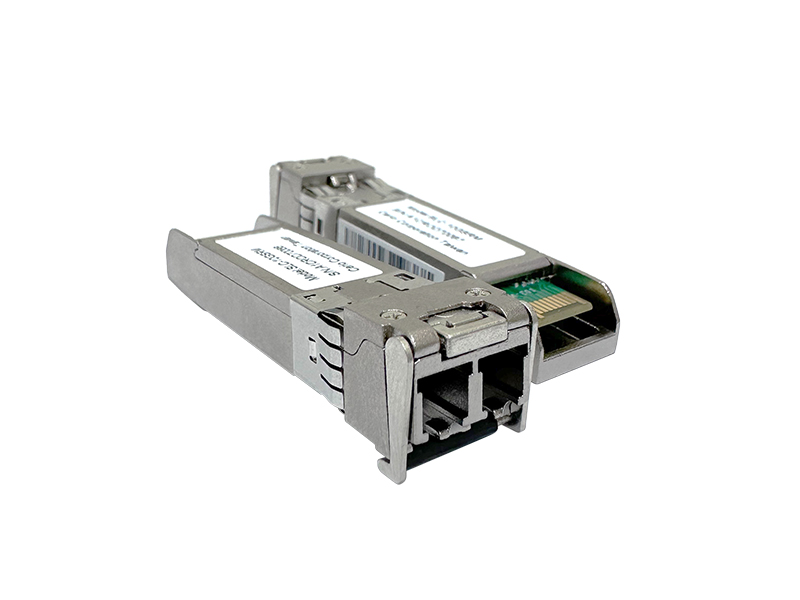

The CERIO 10GBASE-SR SFP+/LC Multi-mode fiber module provides optical transceiver modules connect on switches SFP+ Slot ports, supporting LC connectors. This dual-core small form-factor pluggable (SFP) module supports hot-swappable design and can be applied to long-distance fiber optic networks or fiber connections to other computer servers that support 10Gigabit SFP+ ports between 10Gigabit SFP+ ports of network switches. The module operates on a single power supply voltage of 3.3V and supports 10Gbps Ethernet transmission capability.
The Cerio SFP+ fiber module complies with the IEEE 802.3ae 10Gigabit Ethernet standard, providing a stable and high-speed fiber network environment. When paired with fiber optic cables, this module can support fiber optic connections up to a maximum distance of 300 meters. It can be used in various application scenarios that require high-speed, reliable, and long-distance fiber transmission, and has broad application value.
Highlight Features
- Complying with IEEE 802.3az 10Gigabit Ethernet Standard.
- Compliant with SFP Multi-Source Agreement (MSA).
- Supports 10Gbps Ethernet transmission capability.
- Built in DDM, Digital Diagnostic Monitor function.
- Center Wavelength supports 850nm.
- Supports fiber link for distances up to 300 meters.
- Low power consumption less than 0.9W.
- Single power supply 3.3V.
- Hot-pluggable remove and install module.
- Duplex LC connectors.
- RoHS compliant.
- Plug and play, easy installation.
| SLC-10GSRM | |
| Specifications | |
| Fiber Type | Multi-Mode |
| Data Transfer Rate | 10Gbps |
| Maximum Fiber Distance | 300M |
| Center Wavelength | 850nm |
| Transmitter/Receiver | VCSEL / PIN |
| Supply Voltage | 3.3V |
| Power Consumption | < 0.9W |
| Connector | Dual LC connectors |
| Digital Diagnostic Monitor (DDM) | Supported |
| Operating Temperature | 0°C ~ 70 °C |
| Storage Temperature | -40 °C ~85 °C |
| Dimension ( W x H x D ) | 13.4 x 12.22 x 55.45 mm |
| Weight | 18.6g |
| Production Location | TW |
| Certifications | RoHS compatible |
| Package Contents | |
| SLC-10GSRM Main Unit | x1 |
| Warranty Card | x1 |
