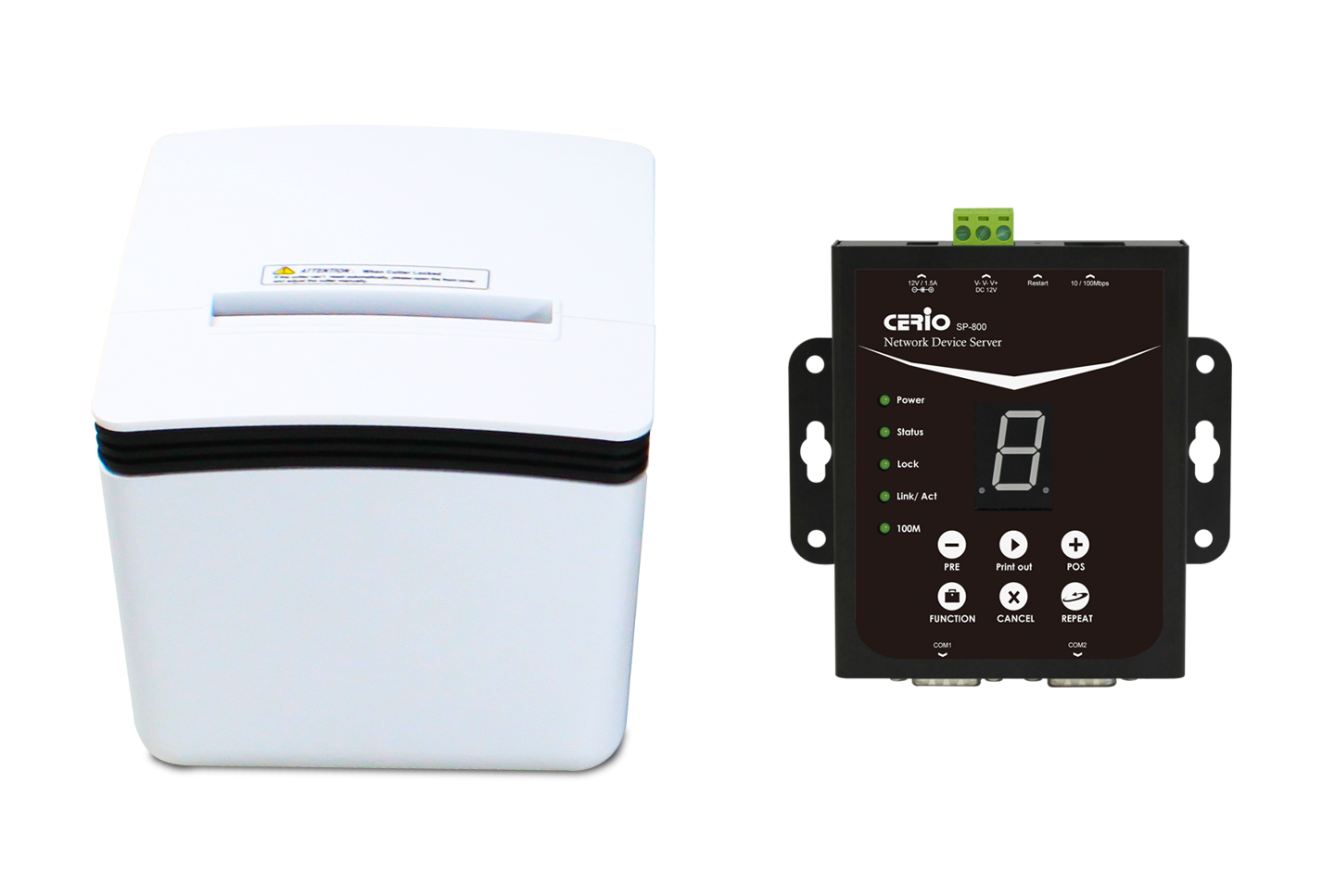

SP-800-QRCPRT

CenOS Account Ticket Generator QR Code POS System

CERIO CenOS Account Ticket Generator QR Code POS kits containing a Thermal Printer and Network Control Server provides instant ticketing for users, comes with an Ethernet port Line Thermal Printers that can be attached at the same time. This is designed for ease of use for account generation via Network Control Server from the built-in On-Demand billing plan from CERIO CenOS Access Controller and then prints the account ticket via QR Code Thermal Printer for wireless Internet access in public locations ranging from places such as airports, hotels, conventions, and coffee shops, Hotspot application.

Introduction

CERIO CenOS Account Ticket Generator QR Code POS kits containing a Thermal Printer and Network Control Server provides instant ticketing for users, comes with an Ethernet port Line Thermal Printers that can be attached at the same time. CERIO CenOS Access Controller on-demand billing kit is designed for ease of use for account generation via Network Control Server from the built-in On-Demand billing plan from CERIO CenOS Access Controller and then prints the account ticket via QR Code Thermal Printer for wireless Internet access in public locations ranging from places such as airports, hotels, conventions, and coffee shops, Hotspot application.

The SP-800-QRCPRT is easy to install and setup, allowing the Line Thermal Printer to connects directly to the Network Control Server with Ethernet port and standard TCP/IP (RJ45) interface to connect CERIO CenOS Access Controller. Simple to operate with just a few clicks needed on the Network Control Server and out comes the ticket from the Line Thermal Printer.

Highlight Features

Network Control Server

  • 10/100 Mbps Fast Ethernet full duplex auto negotiation.
  • Two DB9 RS-232 Console supported.
  • ( 0~9 display ), 10 segment LED display.
  • 6 matrix function keys.
  • Ethernet activity, Power LED’s.
  • Support TCP Server/ Client link mode.
  • DHCP, BOOTP, Static IP, and ARP supported.
  • Built-in Web server for configuration.
  • Support 12~60VDC Wide Voltage and Over Voltage Protection.
  • Support overload current and reverse polarity protection and One removable 2-contact terminal Block.
  • On Desktop & Wall Mountable Form Factor.
  • Wall-mount Rugged metal case with IP50 compliance for industrial usage.

QR Code Thermal Line Receipt Printer:

  • Halt-on protect for over heat.
  • Interface for Ethernet RJ45 available.
  • Use ESC / POS printer commands set.
  • Drop and print paper installation for user friendly.
  • Simple paper jam elimination.
  • Print Head 100Km Life Support.
  • LED Indicators support Power, Error, Paper.

 SP-800-QRCPRT with CenOS Controller System Application

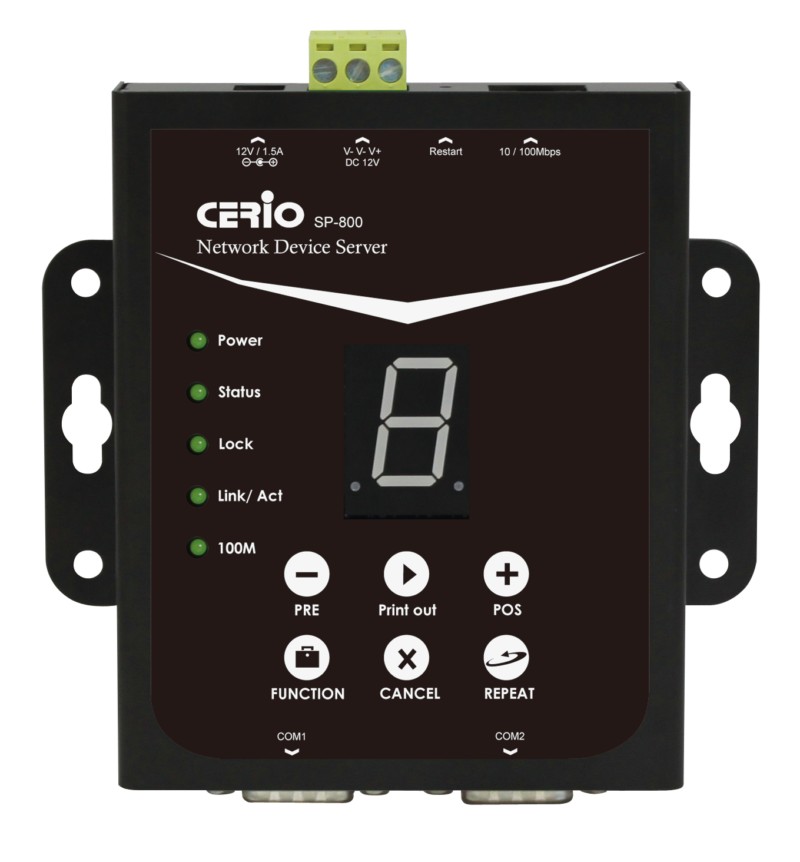

Network Control Server Hardware Overview

Network Control Server :
Hardware Specifications Environmental & Mechanical Characteristics
Indicators (LED)  Isolation
Power Serial : Transient protection for data lines (TX and
10/100Base-TX connection RX) to ±15KV(air),±8KV(contact)
Link Status RJ45: Transient protection for data lines (TX and RX)
Keypad Status to ±15KV(air),±8KV(contact)
( 0~9 display ), 10 segment LED display Power Input : 1500W peak pulse power capability
Keypad with 10/1000 us waveform repetitive rate (duty
6 matrix function keys cycle) : 0.01% ; Uni and Bidirectional
Hardware Power Switch  Power Consumption
On / Off  1.68W Max
　 Wide Voltage
Serial & Network Interface 12-60 VDC
Serial Port  Operating Temperature
DB-9-DTE(male) * 2 0 °C ~ 60 °C
Data Rates Storage Temperature
COM1 : 1200  to  921600 bps  0 °C ~ 70 °C
COM2 : 9600 bps Operating Humidity
Characters  10% to 80% Non-Condensing
5, 6, 7, 8  data bits Storage Humidity
Parity / Stop Bits 5% to 90% Non-Condensing
Odd , Even, None / Power Supply
1  or  1.5 DC Jack : 110 – 220V AC Power ; 12 VDC input.
Flow Control Screw Terminal Block :  12-60 VDC
XON/ XOFF (Software), RTS/ CTS (Hardware), None Weight
Network Interface 282g
Ethernet 10/100M (Auto-Sensing) RJ45 * 1 Dimensions ( W x H x D )
Link Mode 9 x 2.5 x 11 mm
TCP Server/Client Material
Protocols IP50 Metal enclosure
TCP, UDP, ICMP, IPv4, DHCP, BOOTP, ARP, DNS,  Form Factor
ICMP, Telnet, DHCP, HTTP Desktop & Wall Mount
　 Certification
FCC,CE, IP50、ROHS compliant
QR Code Thermal Line Receipt Printer :
Hardware Specifications Environmental & Mechanical Characteristics
Print Speed  Operating Temperature
250mm/sec 0 °C ~ 40 °C
Print Life Storage Temperature
100km -10 °C ~ 60 °C
Interface Operating Humidity
Ethernet 10/100Base-Tx (Auto-Sensing) RJ45 * 1 10% to 90% Non-Condensing
Hardware Button  Storage Humidity
Feed: Roll paper 10% to 90% Non-Condensing
Print commands Power Supply
ESC/POS print commands set DC Jack : 100 – 240VAC Power ; 24 VDC / 2.5A input.
Print Font Weight
ASCII : 12 x 24 dots 1.2kg
Graphic :9 x 17 dots Dimensions (W x H x D)
Print Resolution 174 x 144 x 124 mm
576 dots/line or 512 dots/mm Production Location
Effective Print Width TW Only
72mm Certification
FCC, CE, ROHS compliant
Paper Width Package Contents
79.5mm± 0.5mm Contents
Paper Roll Diameter Network Control Server :
83mm Main Unit x1
Paper End Detection Power Adapter x1
Yes Quick Installation Guide  x1
Over-Heat Halt-on Protection Warranty Card  x1
Yes
Indicators (LED) QR Code Thermal Line Receipt Printer :
Power: shows power on/off status Main Unit  x1
Error: indicate the printer error Power Adapter  x1
Paper: indicate out of paper or printer cover is Quick Installation Guide x1
not close properly Thermal Paper x1
